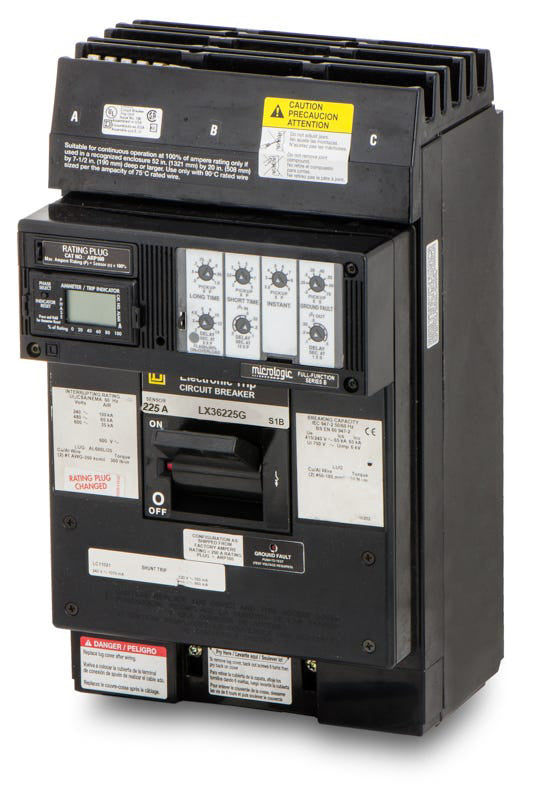

Square D LX36225G Molded Case Circuit Breaker
- 225A
- 3 Pole
- I-Line
Square D
LX36225G
Molded Case Circuit Breaker
Brand
Square D
SKU
LX36225G
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D LX36225G - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
250A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Engineered for precise electrical coordination, the Square D LX36225G is a 3-pole, 225A MCCB equipped with a Micrologic trip unit. It provides Long-Time, Short-Time, Instantaneous, and Ground Fault (LSIG) protection for industrial environments. This breaker connects into Square D I-Line panelboards. As a legacy L-Frame, it can be substituted with the PowerPacT L-Frame series. Featuring a 65 kAIC rating at 480VAC, the solid-state trip technology ensures accurate response times.Specifications
| Brand | Square D |
|---|---|
| Series | LX |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 35kA @ 600Y/347VAC, 35kA @ 600VAC |
| Amperage Range | 112.5-225A |
|---|
| Frame Type | LX |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (1) 1 AWG-600 kcmil or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (Load Side) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | True RMS Sensing |
Product FAQs
6 answersWhat panelboards are compatible with the LX36225G circuit breaker?
This unit is designed specifically for use in Square D I-Line panelboards and switchboards. It features a plug-on line connection that attaches directly to the panelboard bus.
What protection functions are included in the LSIG trip unit?
The solid-state electronic trip unit provides adjustable Long-Time, Short-Time, Instantaneous, and Ground-Fault (LSIG) protection. This allows panel builders to finely coordinate the breaker's trip curve with other devices in the electrical system.
Does this breaker use traditional thermal-magnetic trip technology?
No, the LX36225G features an electronic Micrologic trip unit. This solid-state technology utilizes true RMS sensing to deliver more accurate and reliable response times during fault conditions compared to traditional thermal-magnetic mechanisms.
What wire configurations are supported by the load-side lugs?
The terminal lugs are dual-rated for both aluminum and copper conductors. They will safely accept either a single 1 AWG to 600 kcmil wire, or two 1 AWG to 250 kcmil wires per phase.
How does the I-Line mounting style benefit installation?
I-Line breakers feature integrated plug-on jaws on the line side that clamp securely onto the switchboard busbars. This design provides a reliable electrical connection, allows for rapid installation, and simplifies phase balancing compared to standard bolt-on configurations.
Is the Square D LX series a current production model?
The LX series is a legacy molded case circuit breaker frame. Finding direct LX replacements allows facilities to maintain and service their existing I-Line switchboards without the need for complex adapter kits or expensive panel upgrades.
