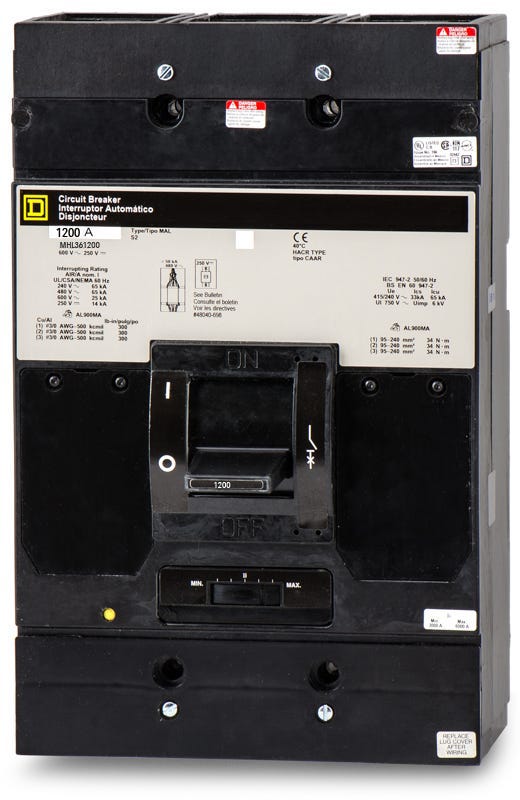

Square D MHL361200 Molded Case Circuit Breaker
- 1200A
- 3 Pole
- Unit Mount
Square D
MHL361200
Molded Case Circuit Breaker
Brand
Square D
SKU
MHL361200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D MHL361200 - 1200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D MHL361200 - 1200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | MHL361200 |
| Series | MHL |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 14kA @ 250VDC |
| Frame Type | MHL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers |
| Wire Gauge | (4) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, HACR Rated, Non-Interchangeable Trip |
Quantity
Square D MHL361200 - 1200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | MHL361200-R |
| Series | MHL |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 14kA @ 250VDC |
| Frame Type | MHL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers |
| Wire Gauge | (4) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, HACR Rated, Non-Interchangeable Trip |
Similar Items
800A 3 Pole Molded Case Circuit Breaker
700A 3 Pole Molded Case Circuit Breaker
600A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty industrial applications, the Square D MHL361200 is a 3-pole, 1200A molded case circuit breaker. It provides reliable overcurrent protection for commercial switchboards and motor control centers. This unit mount MCCB is a direct replacement for older M-Frame installations. For modern upgrades, it is replaced by the PowerPact PJL36120U44A. Rated for 65kAIC at 480V, it features a thermal-magnetic trip unit with long-time and instantaneous (LI) functions.Specifications
| Brand | Square D |
|---|---|
| Part Number | MHL361200-R |
| Series | MHL |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 14kA @ 250VDC |
| Frame Type | MHL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers |
| Wire Gauge | (4) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, HACR Rated, Non-Interchangeable Trip |
Product FAQs
5 answersWhat is the modern replacement for the MHL361200?
The MHL361200 is a legacy Square D M-Frame breaker. For modern replacements or new installations, Schneider Electric recommends transitioning to the PowerPact P-Frame series, such as the PJL36120, depending on your exact short-circuit coordination requirements.
What is the lug wire capacity for the MHL361200?
The standard factory lugs accept four 3/0 AWG to 500 kcmil aluminum or copper conductors per terminal to safely accommodate the 1200A maximum load.
Does this breaker plug directly into an I-Line panelboard?
No. This is a unit-mount, feed-thru circuit breaker. It is designed to bolt directly to the backpan of compatible Square D switchboards and motor control centers rather than plugging into an I-Line bussing system.
Are the thermal and magnetic trip elements adjustable on this M-Frame breaker?
This unit features standard LI (Long-Time, Instantaneous) thermal-magnetic protection. The thermal element is fixed, while the magnetic instantaneous trip threshold is adjustable to help coordinate with downstream loads.
Can the MHL361200 be used on direct current systems?
Yes. In addition to its AC ratings, this breaker is rated for 250VDC applications with a minimum 14kA interrupting capacity.
