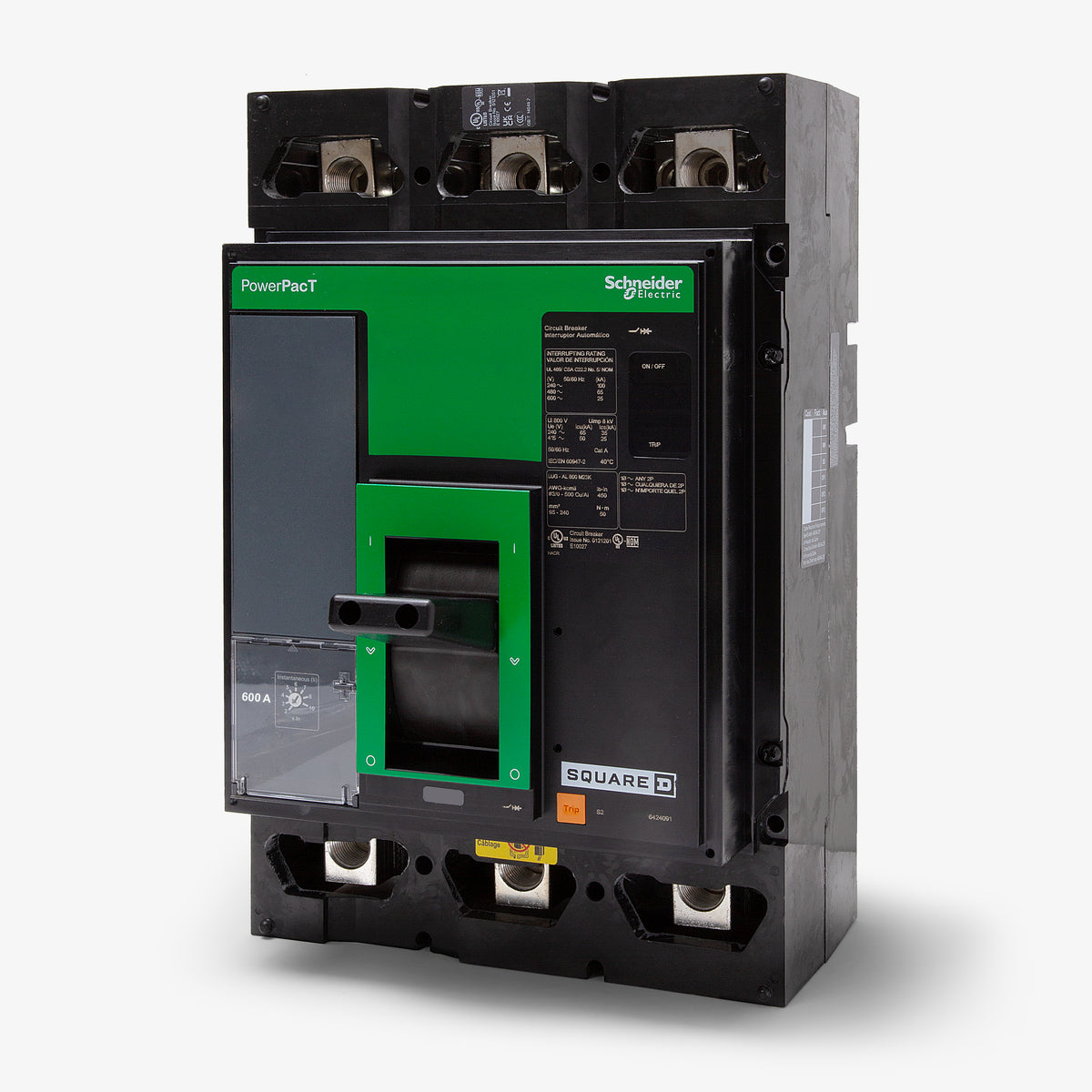

Square D MJL36600 Molded Case Circuit Breaker
- 600A
- 3 Pole
- Unit Mount
Square D
MJL36600
Molded Case Circuit Breaker
Brand
Square D
SKU
MJL36600
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D MJL36600 - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D MJL36600 - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | MJL36600 |
| Series | MJL |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Frame Type | MJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Industrial Control Panels |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Alarm Switch, Auxiliary Switch, Handle Padlock Attachment |
|---|---|
| Accessories | Lugs (AL800M23K) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Mercury Free, PVC Free |
Quantity
Square D MJL36600 - 600A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | MJL36600 |
| Series | MJL |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Frame Type | MJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Industrial Control Panels |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Alarm Switch, Auxiliary Switch, Handle Padlock Attachment |
|---|---|
| Accessories | Lugs (AL800M23K) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Mercury Free, PVC Free |
Similar Items
700A 3 Pole Molded Case Circuit Breaker
500A 3 Pole Molded Case Circuit Breaker
450A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty commercial environments, this 600A electronic trip breaker provides advanced circuit protection. It is engineered for use within Square D switchboards and industrial control panels. The unit-mount configuration acts as a modern upgrade for legacy MA36600 and MH36600 breakers. It comes equipped with AL800M23K lugs for secure wire terminations. Utilizing an electronic LI trip unit, it ensures precise coordination and achieves a 65kA interrupting capacity at 480VAC.Specifications
| Brand | Square D |
|---|---|
| Part Number | MJL36600 |
| Series | MJL |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Frame Type | MJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Industrial Control Panels |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Alarm Switch, Auxiliary Switch, Handle Padlock Attachment |
|---|---|
| Accessories | Lugs (AL800M23K) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Mercury Free, PVC Free |
Product FAQs
7 answersCan the MJL36600 be used to replace older Square D legacy breakers?
Yes, the PowerPacT M-Frame MJL36600 serves as a modern unit-mount replacement for legacy 600A Square D MA, MH, ME, and MX frame circuit breakers, such as the MA36600 and MH36600.
What type of trip unit is installed in the MJL36600?
This breaker features a basic ET 1.0 electronic trip unit. It provides fixed long-time protection and adjustable instantaneous protection, offering greater accuracy than standard thermal-magnetic trip units.
Are the trip unit settings on the MJL36600 field-replaceable or fully adjustable?
No, the ET 1.0 trip unit cannot be field-replaced. It features a fixed long-time trip point, though the instantaneous protection can be adjusted from 2 to 10 times the nominal ampere rating.
What type of enclosures or equipment is this breaker designed for?
The MJL36600 is a unit-mount breaker designed for installation in Square D switchboards, motor control centers (MCCs), and industrial control panels.
What does the "J" in the MJL36600 part number indicate?
The "J" designates the specific interrupting capacity tier within the Square D PowerPacT M-Frame family, which provides 100kA at 240VAC, 65kA at 480VAC, and 25kA at 600VAC.

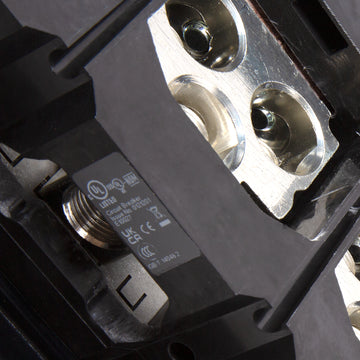

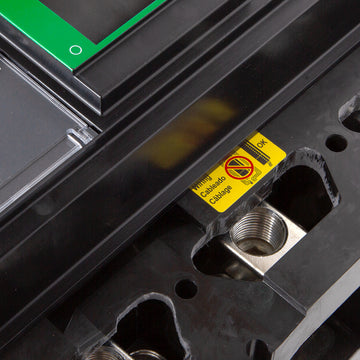

Does this breaker come with line and load lugs?
Yes, the MJL36600 includes factory-installed box lugs on both the line and load sides. The terminals accept three 3/0 AWG to 500 kcmil aluminum or copper conductors per phase.
Does the MJL36600 include a manual trip feature for testing?
Yes, all Square D PowerPacT circuit breakers feature an integral push-to-trip button on the cover to manually trip the breaker and verify the mechanical operation of the trip mechanism.
