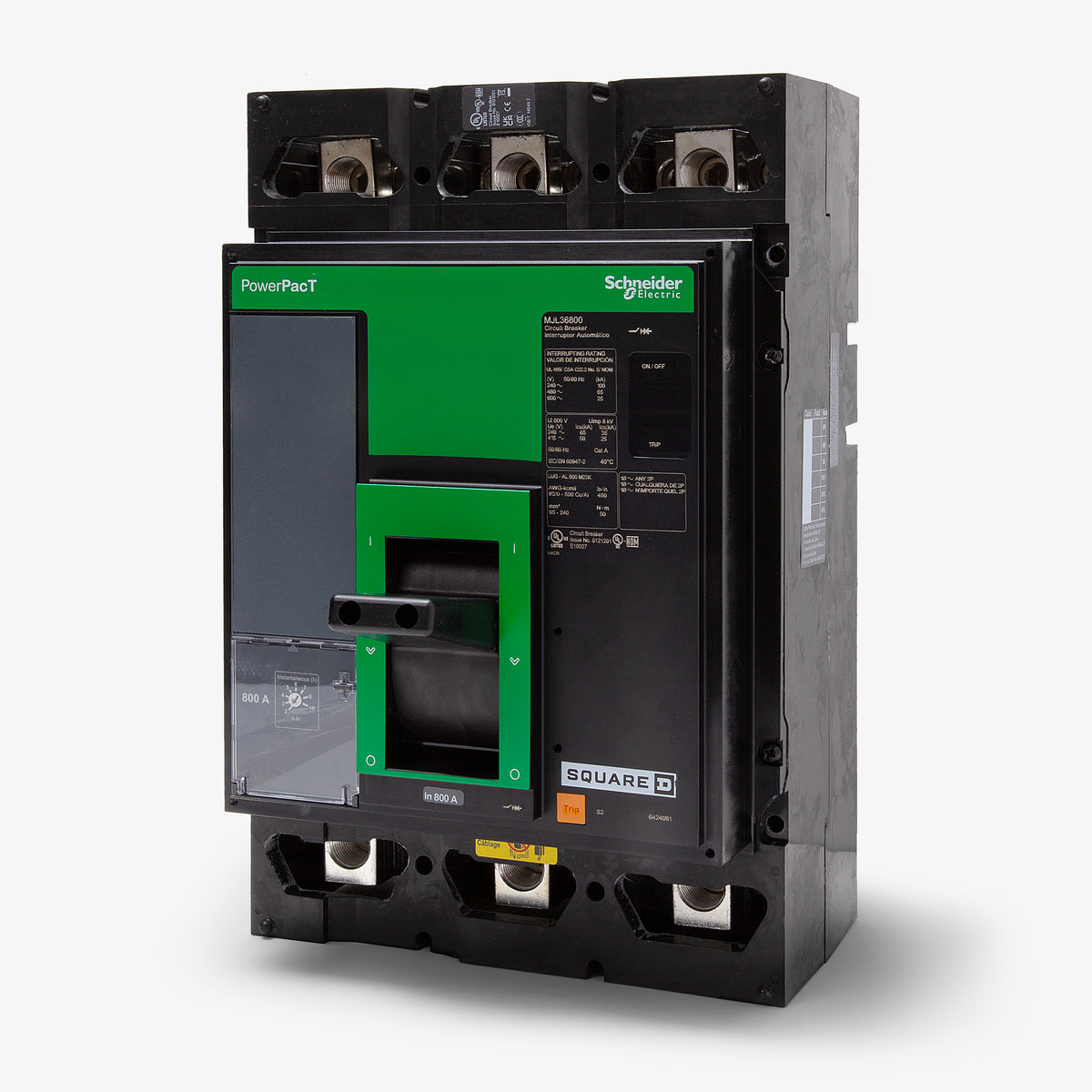

Square D MJL36800E10 Molded Case Circuit Breaker
- 800A
- 3 Pole
- Unit Mount
Square D
MJL36800E10
Molded Case Circuit Breaker
Brand
Square D
SKU
MJL36800E10
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D MJL36800E10 - 800A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
800A 3 Pole Molded Case Circuit Breaker
700A 3 Pole Molded Case Circuit Breaker
600A 3 Pole Molded Case Circuit Breaker
Description
Engineered with an adjustable electronic trip unit, the MJL36800E10 3-pole molded case circuit breaker allows amperage settings between 300A and 800A. This flexibility provides superior coordination for commercial applications requiring precise LI protection. The unit-mount breaker installs into Square D switchboards and motor control centers. It is an ideal replacement for legacy MA36800 and MH36800 breakers. Rated 65kAIC at 480V, this current-limiting MCCB includes standard lugs.Specifications
| Brand | Square D |
|---|---|
| Part Number | MJL36800E10 |
| Series | MJL |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 300-800A |
|---|
| Frame Type | MJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Industrial Control Panels |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, 80% Rated, Mercury Free, PVC Free, Non-Interchangeable Trip |
Product FAQs
7 answersCan the MJL36800E10 replace older Square D MA or MH frame breakers?
Yes. This PowerPacT M-frame unit-mount breaker serves as a modern replacement for legacy MA36800 and MH36800 circuit breakers. It features common mounting holes and handle locations to simplify retrofitting into existing switchboards or motor control centers.
Can this breaker be installed in an I-Line panelboard?
No. The MJL36800E10 is a feed-thru unit-mount breaker equipped with mechanical lugs on both the line and load sides. For plug-on installations in I-Line panelboards, an MJA36800 I-Line breaker is required.
How does the adjustable electronic trip unit operate on this breaker?
The integrated ET 1.0 electronic trip unit allows for long-time continuous current adjustments from 300A to 800A. It also includes customizable instantaneous pickup settings to optimize short-circuit coordination in commercial and industrial applications.

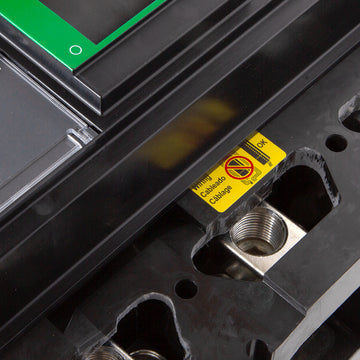

What is the recommended lug tightening torque for the conductor terminals?
The standard AL800M23K line and load lugs require a tightening torque of 442.5 lb-in (50 N.m) to securely terminate 3/0 AWG to 500 kcmil conductors.

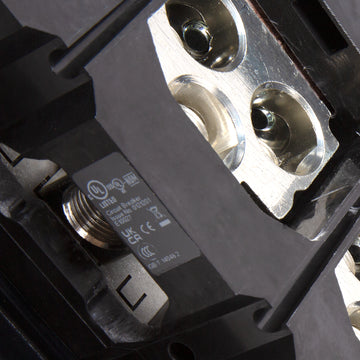

Are the lugs suitable for both aluminum and copper conductors?
Yes. The factory-installed AL800M23K terminal lugs accept three 3/0 AWG to 500 kcmil conductors per phase and are rated for either aluminum or copper wire.
Is the MJL36800E10 rated for 100 percent continuous duty?
No, it is an 80 percent rated circuit breaker. Under standard National Electrical Code guidelines, continuous loads lasting three hours or more must not exceed 640A, which is 80 percent of the 800A maximum sensor rating.
What internal accessories can be installed in this breaker?
The MJL36800E10 accepts a variety of field-installable internal accessories, including shunt trips, undervoltage releases, auxiliary switches, and alarm switches. These install directly into dedicated compartments behind the front cover.
