Square D NX361200 Molded Case Circuit Breaker
- 1200A
- 3 Pole
- I-Line
Square D
NX361200
Molded Case Circuit Breaker
Brand
Square D
SKU
NX361200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

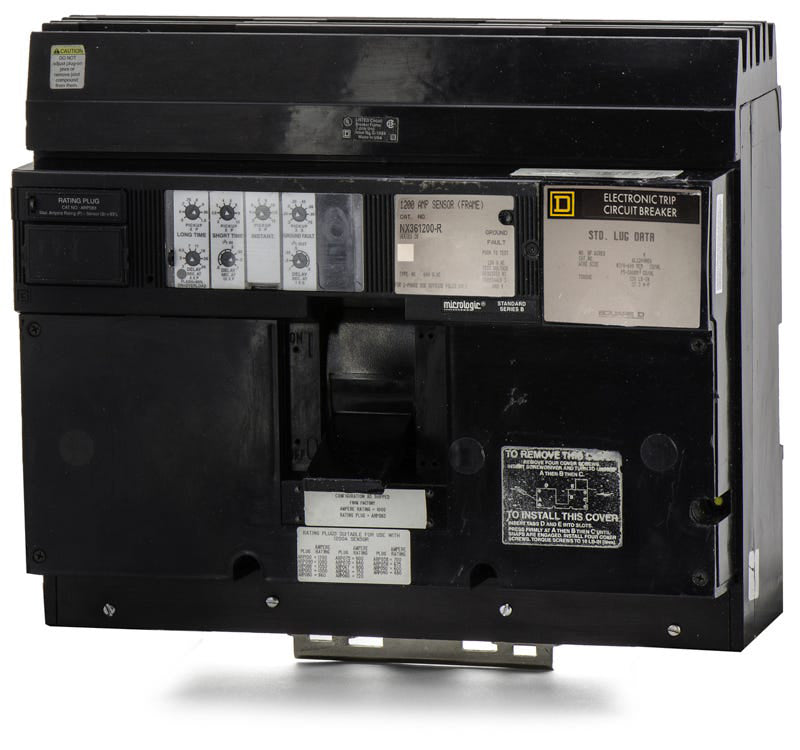

Square D NX361200 - 1200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
1000A 3 Pole Molded Case Circuit Breaker
1000A 3 Pole Molded Case Circuit Breaker
Description
Providing true RMS sensing, this 1200A electronic trip breaker ensures accurate overcurrent response for commercial facilities. The Micrologic Series B unit allows precise LSI tuning. Designed for legacy infrastructure, it connects securely into Square D I-Line panels. When substituting with the modern PowerPact PLA34120U33A, engineers should verify 600V fault current requirements. The N-frame construction delivers a robust 100kAIC interrupting capacity at 480V for demanding networks.Specifications
| Brand | Square D |
|---|---|
| Part Number | NX361200 |
| Series | NX |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 65kA @ 600VAC |
| Frame Type | N |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (4) 3/0 AWG - 600 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Solid State Trip Unit, Micrologic Series B, Non-Interchangeable Trip, True RMS Sensing |
Product FAQs
8 answersWhat equipment is compatible with the NX361200?
This N-frame breaker is designed exclusively for Square D I-Line panelboards and switchboards. It requires the specific I-Line bus stack and adequate physical space for a 1200A frame.
Can the NX361200 be reverse fed?
No. I-Line breakers feature plug-on jaws on the line side that must connect directly to the panelboard bus. They are not suitable for reverse feed applications.
What does the LSI designation mean for system coordination?
LSI indicates the electronic trip unit has adjustable Long-Time, Short-Time, and Instantaneous functions. This allows panel builders to fine-tune the trip curve for precise selective coordination with upstream and downstream devices.
Is the NX361200 still in active production?
The Square D N-frame is a legacy series. For new installations requiring a 1200A I-Line breaker, the modern equivalent is the PowerPact P-frame series, which mounts to the same I-Line bus.
What are the load side wiring requirements?
The standard mechanical lugs on this breaker are designed to accept four 3/0 AWG to 600 kcmil aluminum or copper conductors per phase. Ensure proper torque specifications are followed during installation.
Does the NX361200 provide equipment ground fault protection?
No. This specific breaker features an LSI trip unit, which does not include the Ground Fault (G) function. If your 1200A application requires ground fault protection to meet NEC requirements, an LSIG breaker is required.
Can this breaker be used as a main breaker?
Yes, it can serve as a main breaker in an I-Line switchboard or panelboard, provided the enclosure is rated for 1200A and the installation meets all local code requirements for main service disconnects.
How does the I-Line plug-on connection work?
The line side of the breaker features spring-loaded jaws that push directly onto the stepped I-Line bus assembly. This allows for faster installation and eliminates the need for line-side cabled connections.
