Square D NX361200G Circuit Breaker
- 1200
- 3 Pole
- I-Line
Square D
NX361200G
Circuit Breaker
Brand
Square D
SKU
NX361200G
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D NX361200G 3 Pole Circuit Breaker
Re-Certified
Quantity
Quantity
Square D NX361200G 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | NX361200G |
| Series | NX |
| Amperage | 1200 A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 600V |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 65kA @ 600VAC |
| Frame Type | NX |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4x AWG 3/0 to 600KCmil, Al/Cu |
| Max Wire | 600 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm, Undervoltage Release, Padlock Attachment |
|---|---|
| Temp Rating | 40C |
| Construction Features | HACR Rated, Solid State Trip Unit, Micrologic Series B, Non-Interchangeable Trip, True RMS Sensing |
Sold out
Quantity
Square D NX361200G 3 Pole Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | NX |
| Amperage | 1200 A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 600V |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 65kA @ 600VAC |
| Frame Type | NX |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4x AWG 3/0 to 600KCmil, Al/Cu |
| Max Wire | 600 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm, Undervoltage Release, Padlock Attachment |
|---|---|
| Temp Rating | 40C |
| Construction Features | HACR Rated, Solid State Trip Unit, Micrologic Series B, Non-Interchangeable Trip, True RMS Sensing |
Similar Items
1000A 3 Pole Molded Case Circuit Breaker
1000A 3 Pole Molded Case Circuit Breaker
Description

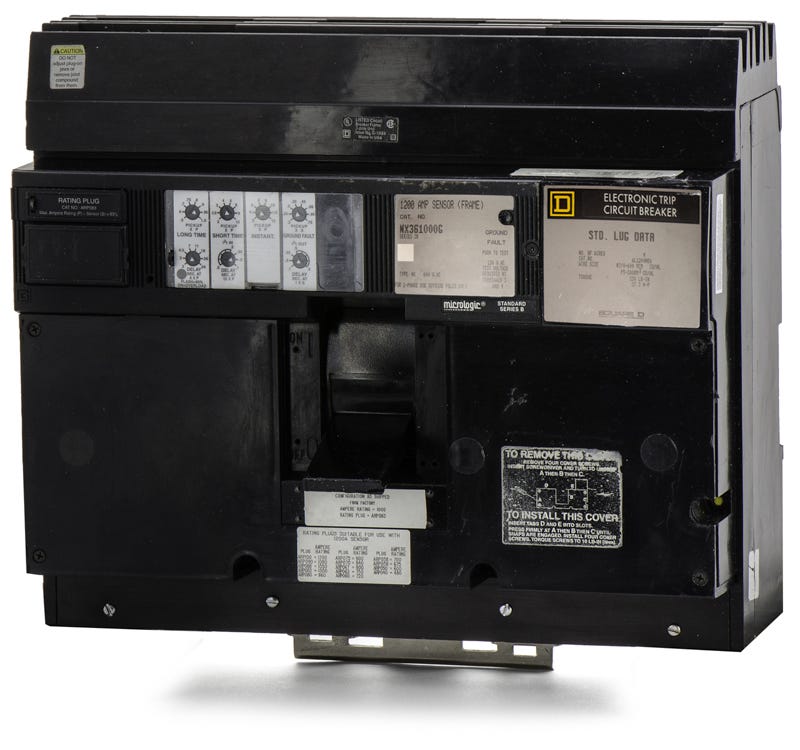

Square DNX361200G 3 Pole Circuit Breaker
The Square D NX361200G is a 3 Pole solid state molded case circuit breaker with a current rating of 1200 Amps and a voltage rating of 600V. It has an interrupting rating of 100kAIC at 480V. The NX361200G has an I-Line style plug-in connection type and includes long-time, short-time, instantaneous and ground fault trip functions.
Specifications
| Brand | Square D |
|---|---|
| Part Number | NX361200G |
| Series | NX |
| Amperage | 1200 A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 600V |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 65kA @ 600VAC |
| Frame Type | NX |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4x AWG 3/0 to 600KCmil, Al/Cu |
| Max Wire | 600 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm, Undervoltage Release, Padlock Attachment |
|---|---|
| Temp Rating | 40C |
| Construction Features | HACR Rated, Solid State Trip Unit, Micrologic Series B, Non-Interchangeable Trip, True RMS Sensing |
Product FAQs
6 answersWhat do the LSIG trip functions represent on the Micrologic trip unit?
LSIG specifies the adjustable electronic trip settings: Long-Time (L), Short-Time (S), Instantaneous (I), and Ground Fault (G). These dials allow electricians to fine-tune the breaker's overcurrent and short-circuit responses to coordinate with other protective devices in the system.
Which I-Line panelboards accept this 1200A circuit breaker?
The NX361200G is compatible with Square D I-Line distribution panelboards and switchboards rated for 1200A and above, such as the HCP, HCW, and HCWM series. The panel interior must provide adequate bussing for a 1200A branch or main load.
Does the ground fault trip function require a neutral current transformer?
If the breaker is installed on a 3-phase, 4-wire system, an external neutral current transformer (CT) must be installed and wired to the trip unit to accurately detect ground faults. On 3-phase, 3-wire systems with no neutral load, the external CT is not required.
Is the NX-frame an active product, and what is the current replacement series?
The Square D NX-frame is a legacy molded case circuit breaker. Schneider Electric has superseded the N-frame family with the modern PowerPact P-frame circuit breakers for 1200A applications, though the P-frame may require different panel space or mounting hardware.
Can the Micrologic trip unit be swapped in the field?
No, the standard-function Micrologic trip unit on the NX361200G is non-interchangeable. The internal rating plug and the electronic trip functions are factory-installed and cannot be modified or upgraded in the field.
Can this I-Line circuit breaker be reverse-fed?
No. Because this breaker features I-Line plug-in jaws, the line side is mechanically configured to connect directly to the panelboard bus. The lug terminals are strictly for the load side conductors, preventing reverse-feed applications.
