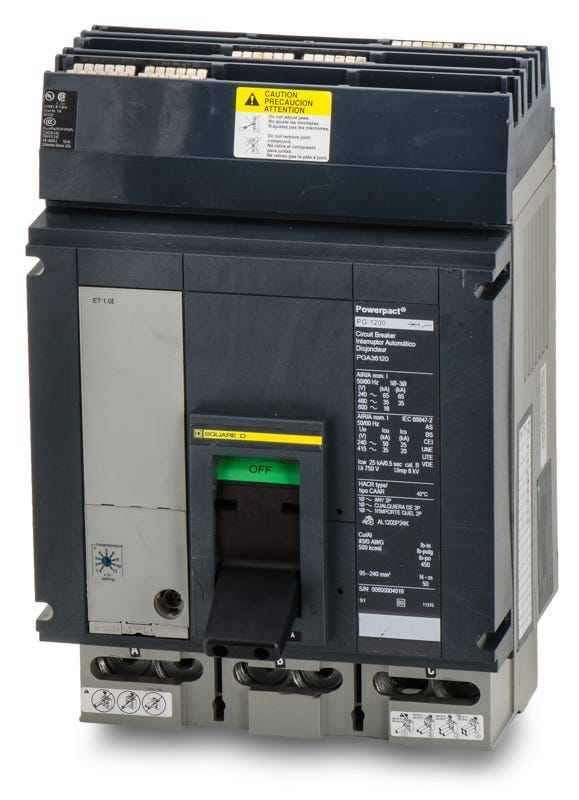

Square D PGA36120 Molded Case Circuit Breaker
- 1200A
- 3 Pole
- I-Line
Square D
PGA36120
Molded Case Circuit Breaker
Brand
Square D
SKU
PGA36120
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D PGA36120 - 1200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D PGA36120 - 1200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | PGA36120 |
| Series | PGA |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC |
| Frame Type | PGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (4) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Trip Unit Model | ET 1.0I |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | ET 1.0I Electronic Trip Unit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, True RMS Sensing |
Quantity
Square D PGA36120 - 1200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | PGA36120-R |
| Series | PGA |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC |
| Frame Type | PGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (4) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Trip Unit Model | ET 1.0I |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | ET 1.0I Electronic Trip Unit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, True RMS Sensing |
Similar Items
1200A 3 Pole Molded Case Circuit Breaker
1200A 3 Pole Molded Case Circuit Breaker
1000A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty commercial and industrial power distribution, the Square D PGA36120 is a 1200A, 3-pole molded case circuit breaker. It delivers reliable performance with an 80% continuous current rating and true RMS sensing. This P-Frame breaker installs into Square D I-Line panelboards and switchboards, utilizing a plug-on line-side connection and load-side lugs. Rated for 65kAIC at 240VAC, it features an ET 1.0I electronic trip unit with fixed thermal and adjustable magnetic settings.Specifications
| Brand | Square D |
|---|---|
| Part Number | PGA36120 |
| Series | PGA |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC |
| Frame Type | PGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (4) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Trip Unit Model | ET 1.0I |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | ET 1.0I Electronic Trip Unit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, True RMS Sensing |
Product FAQs
8 answersCan the PowerPacT PGA36120 be installed in older Square D I-Line panelboards?
Yes. Schneider Electric has verified that PowerPacT P-Frame I-Line breakers, including the PGA36120, are backward compatible with existing and legacy I-Line panelboards and switchboard distribution sections. Installers must always verify that the equipment's voltage and interrupting capacity ratings meet or exceed the application requirements before installation.
Can the trip unit on the PGA36120 be swapped with a different MicroLogic module?
No. The PGA36120 is equipped with a basic ET 1.0I electronic trip unit which provides fixed long-time and instantaneous (LI) protection. Unlike P-Frame breakers equipped with standard MicroLogic trip units, the ET 1.0I is not field-interchangeable.
Does the PGA36120 require field-installed lugs on both the line and load sides?
No. Because this is an I-Line style plug-in breaker, the line side mounts directly to the panelboard's I-Line bus stack. Factory-installed mechanical lugs are only provided on the load side.
How many load-side conductors can the standard lugs on this breaker accommodate per phase?
The factory-installed mechanical load lugs (AL1200P25K) accept up to four aluminum or copper conductors per phase. They support wire sizes from 3/0 AWG up to 500 kcmil.
Can the PGA36120 I-Line breaker be reverse fed?
No. I-Line circuit breakers feature plug-on jaw construction designed strictly for the line-side connection to the panelboard bus. They cannot be reverse fed.
Which part of the PGA36120 catalog number indicates it is an I-Line breaker?
The "A" following the "PG" interruption rating designates the termination type as an I-Line plug-on connection. PowerPacT P-Frame breakers with an "L" or "F" in this position feature different termination styles, such as lugs on both ends or no lugs.
Does the standard PGA36120 include ground-fault protection?
No. The standard ET 1.0I trip unit in this breaker provides long-time and instantaneous (LI) protection only. Applications requiring equipment ground-fault protection (LSIG) will require a different P-Frame configuration equipped with an advanced MicroLogic trip unit.
Is the PGA36120 rated for 100 percent continuous duty?
No. Standard PowerPacT PGA circuit breakers without a specific "C" suffix are 80 percent rated. This means the continuous load must not exceed 960 amps (80 percent of its 1200A capacity) for periods of three hours or more.
