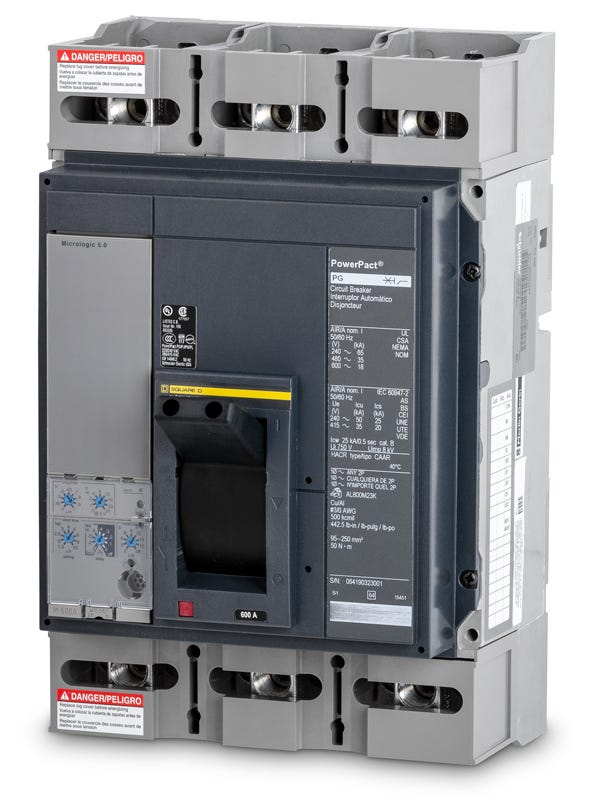

Square D PGL36120U41A Molded Case Circuit Breaker
- 1200A
- 3 Pole
- Unit Mount
Square D
PGL36120U41A
Molded Case Circuit Breaker
Brand
Square D
SKU
PGL36120U41A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D PGL36120U41A - 1200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
1200A 3 Pole Molded Case Circuit Breaker
1200A 3 Pole Molded Case Circuit Breaker
1200A 3 Pole Molded Case Circuit Breaker
Description
Engineered for demanding industrial environments, this 1200A Square D PowerPacT P-Frame MCCB provides reliable power distribution and monitoring. The unit-mount configuration is designed for compatibility with QED switchboards, Model 6 motor control centers, and P-Frame enclosures. What sets this model apart is its Micrologic 3.0A electronic trip unit, which combines adjustable long-time and instantaneous (LI) protection with a built-in ammeter for precise current measurement.Specifications
| Brand | Square D |
|---|---|
| Part Number | PGL36120U41A |
| Series | PGL |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 480-1200A |
|---|
| Frame Type | PGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D P-Frame Enclosures, QED Switchboards, Model 6 Motor Control Centers |
| Wire Gauge | (4) 3/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Trip Unit Model | MicroLogic 3.0A |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Padlock Attachment, Communication Module |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | 80% Rated, Ammeter, HACR Rated, True RMS Sensing |
Product FAQs
6 answersWhat does the "U41A" suffix mean on this Square D breaker?
The U41A suffix indicates the breaker is equipped with a Micrologic 3.0A electronic trip unit, which provides adjustable long-time and instantaneous (LI) protection along with an integrated ammeter.
What does the "G" in the PGL36120U41A part number represent?
The "G" designates the interrupting rating tier within the PowerPacT P-Frame family, which provides a 35kA capacity at 480VAC and 65kA at 240VAC.
Can the PGL36120U41A be installed in an I-Line panelboard?
No, the PGL36120U41A is a unit-mount (feed-thru) breaker with lugs on both ends. For I-Line panelboard applications, a plug-on P-Frame breaker like the PGA series is required.
What does the "L" in the PGL36120U41A catalog number indicate?
The "L" indicates that this PowerPacT P-Frame breaker is a unit-mount configuration equipped with mechanical lugs on both the line and load sides.
Can the Micrologic 3.0A trip unit on the PGL36120U41A be interchanged in the field?
Yes, the PowerPacT P-Frame design allows Micrologic trip units to be interchanged in the field, providing flexibility if your protection or monitoring requirements change.
Does the PGL36120U41A include a push-to-trip button?
Yes, all PowerPacT P-Frame circuit breakers feature an integral push-to-trip button on the cover, allowing you to manually trip the breaker for testing and maintenance.
