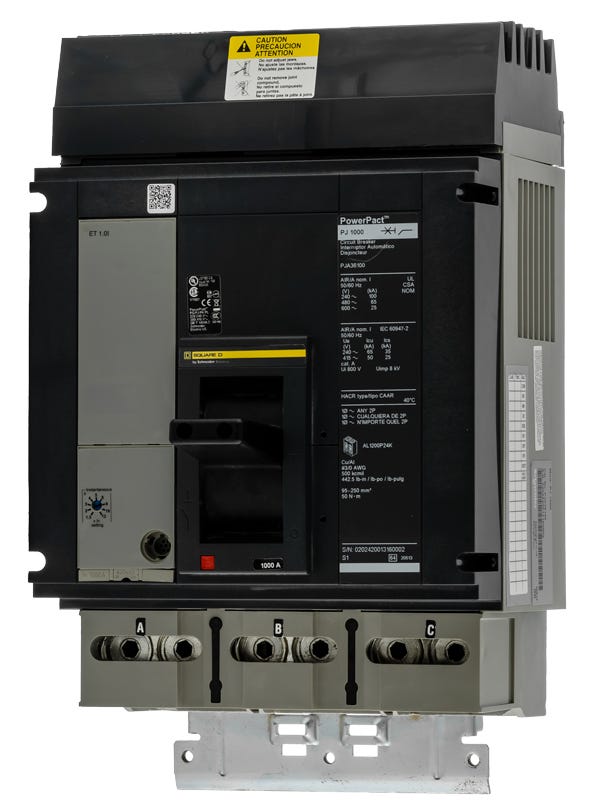

Square D PJA36100 Molded Case Circuit Breaker
- 1000A
- 3 Pole
- I-Line
Square D
PJA36100
Molded Case Circuit Breaker
Brand
Square D
SKU
PJA36100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D PJA36100 - 1000A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D PJA36100 - 1000A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | PJA |
| Amperage | 1000A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Frame Type | PJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | (4) 3/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Trip Unit Model | ET 1.0I |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | ET 1.0I Trip Unit, Lugs (Load Side) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, True RMS Sensing |
Quantity
Square D PJA36100 - 1000A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | PJA |
| Amperage | 1000A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Frame Type | PJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | (4) 3/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Trip Unit Model | ET 1.0I |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | ET 1.0I Trip Unit, Lugs (Load Side) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, True RMS Sensing |
Similar Items
1000A 3 Pole Molded Case Circuit Breaker
1000A 3 Pole Molded Case Circuit Breaker
1200A 3 Pole Molded Case Circuit Breaker
Description
Engineered for high-capacity applications, the Square D PJA36100 is a 1000A PowerPact P-Frame molded case circuit breaker. This 3-pole unit features an I-Line plug-on connection for Square D I-Line panelboards. It serves as a drop-in replacement for discontinued MA36100 and MH36100 breakers. The device includes an ET 1.0I electronic trip unit, providing Long-Time and Instantaneous (LI) protection. It ensures safety with a 65kA interrupting rating at 480VAC.Specifications
| Brand | Square D |
|---|---|
| Series | PJA |
| Amperage | 1000A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Frame Type | PJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | (4) 3/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Trip Unit Model | ET 1.0I |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | ET 1.0I Trip Unit, Lugs (Load Side) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, True RMS Sensing |
Product FAQs
6 answersWhat panelboards are compatible with the PJA36100?
The PJA36100 is designed exclusively for use in Square D I-Line panelboards and switchboards. It features an I-Line style plug-in connection on the line side and mechanical lugs on the load side.
Can the PJA36100 replace older Square D 1000A I-Line breakers?
Yes, the PowerPacT P-frame PJA36100 serves as a drop-in replacement for discontinued Square D M-frame breakers, including the MA36100 and MH36100. It shares the same dimensions, mounting, bussing, and door cut-out as the legacy M-frame models.
Does the PJA36100 require a separate mounting bracket for I-Line panels?
No additional mounting bracket is required. The I-Line plug-on connectors and mounting bracket are integral to the circuit breaker and allow for direct installation onto the panelboard bus.
What type of trip unit is installed in the PJA36100?
This breaker features a solid-state ET 1.0I electronic trip unit with LI (Long-Time and Instantaneous) protection functions. The long-time protection is fixed, while the instantaneous trip is adjustable to coordinate with your system's fault current requirements.
Can I use aluminum wire with the PJA36100 load lugs?
Yes, the factory-installed mechanical load lugs are dual-rated for both aluminum and copper wire. They accept four 3/0 AWG to 500 kcmil conductors per phase.
How do I manually test the mechanical operation of the PJA36100?
Like all PowerPacT circuit breakers, the PJA36100 features an integral push-to-trip button on the front cover. Pressing this button manually trips the breaker to verify the mechanical operation of the trip mechanism before or after installation.
