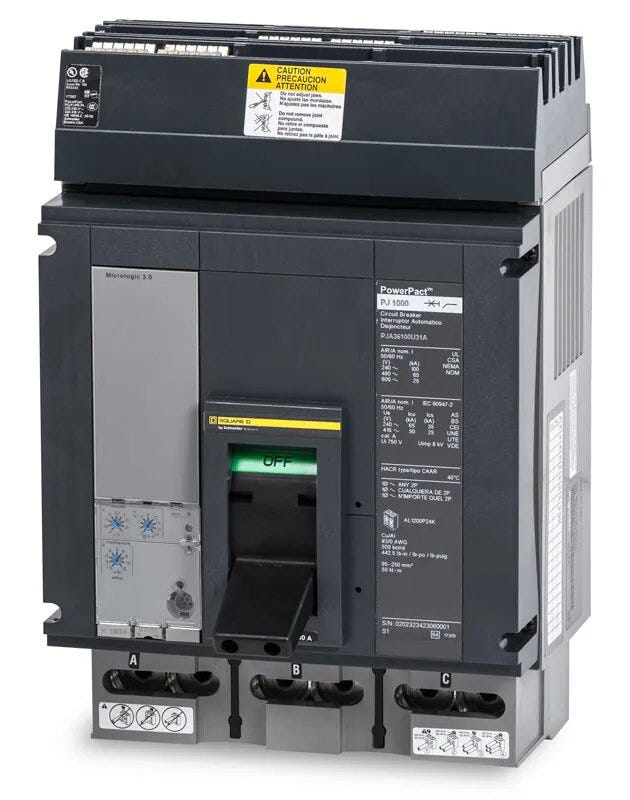

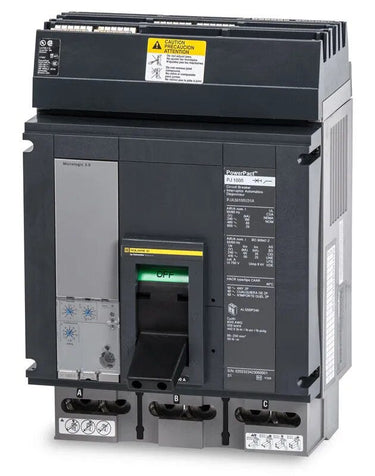

Square D PJA36100U31A Molded Case Circuit Breaker
- 1000A
- 3 Pole
- I-Line
Square D
PJA36100U31A
Molded Case Circuit Breaker
Brand
Square D
SKU
PJA36100U31A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D PJA36100U31A - 1000A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D PJA36100U31A - 1000A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | PJA36100U31A |
| Series | PJA |
| Amperage | 1000A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 400-1000A |
|---|
| Frame Type | PJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | (4) 3/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable Thermal, Adjustable Magnetic |
| Trip Unit Model | MicroLogic 3.0 |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Communication Module |
|---|---|
| Accessories | Micrologic 3.0 Trip Unit (Factory Installed) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, True RMS Sensing, Visual Trip Indicator, Adjustable Trip |
Sold out
Quantity
Square D PJA36100U31A - 1000A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | PJA36100U31A |
| Series | PJA |
| Amperage | 1000A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 400-1000A |
|---|
| Frame Type | PJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | (4) 3/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable Thermal, Adjustable Magnetic |
| Trip Unit Model | MicroLogic 3.0 |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Communication Module |
|---|---|
| Accessories | Micrologic 3.0 Trip Unit (Factory Installed) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, True RMS Sensing, Visual Trip Indicator, Adjustable Trip |
Similar Items
1000A 3 Pole Molded Case Circuit Breaker
1000A 3 Pole Molded Case Circuit Breaker
1200A 3 Pole Molded Case Circuit Breaker
Description
Designed for demanding industrial environments, this 1000A PowerPacT P-Frame breaker offers advanced electronic trip capabilities. The unit mounts into Square D I-Line panelboards and switchboards, utilizing a plug-on design for efficient installation. It features a Micrologic 3.0 trip unit with adjustable long-time and instantaneous settings, providing superior coordination compared to standard thermal-magnetic options.Specifications
| Brand | Square D |
|---|---|
| Part Number | PJA36100U31A |
| Series | PJA |
| Amperage | 1000A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 400-1000A |
|---|
| Frame Type | PJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | (4) 3/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable Thermal, Adjustable Magnetic |
| Trip Unit Model | MicroLogic 3.0 |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Communication Module |
|---|---|
| Accessories | Micrologic 3.0 Trip Unit (Factory Installed) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, True RMS Sensing, Visual Trip Indicator, Adjustable Trip |
Product FAQs
6 answersHow much mounting space does the PJA36100U31A require in an I-Line panelboard?
As a PowerPacT P-frame circuit breaker, it utilizes 9 inches of available vertical bus space in a Square D I-Line panelboard or switchboard.
How does the PJA36100U31A connect to the panelboard bus?
This I-Line circuit breaker uses blow-on style plug-on connectors on the line side, allowing it to attach directly to the panelboard bus stack. The load side features mechanical lugs that accept four 3/0 AWG to 500 kcmil aluminum or copper wires per phase.
Can the trip unit on this breaker be upgraded in the field?
Yes. The PJA36100U31A comes factory-installed with a Micrologic 3.0 standard electronic trip unit. However, PowerPacT P-frame breakers feature interchangeable trip units. This allows you to swap it in the field for a Micrologic unit with advanced metering, communication, or different protection functions without replacing the entire breaker frame.
What do the LI trip functions on the PJA36100U31A provide?
The Micrologic 3.0 electronic trip unit provides adjustable Long-Time (L) and Instantaneous (I) overcurrent protection. The long-time function protects against sustained overloads, while the instantaneous function protects against immediate short circuits.
Does this specific model include ground-fault protection?
The PJA36100U31A provides Long-Time and Instantaneous (LI) protection only. If your application requires Ground-Fault protection (LSIG), you will need a variant equipped with a Micrologic 6.0 trip unit, such as catalog number PJA36100U44A.
What is the advantage of the I-Line blow-on line connections?
The plug-on I-Line connectors feature a blow-on design where increased magnetic flux from a short circuit causes the jaws to grasp the panelboard bus bars even tighter. This helps maintain a highly secure and stable electrical connection during high-fault conditions.
