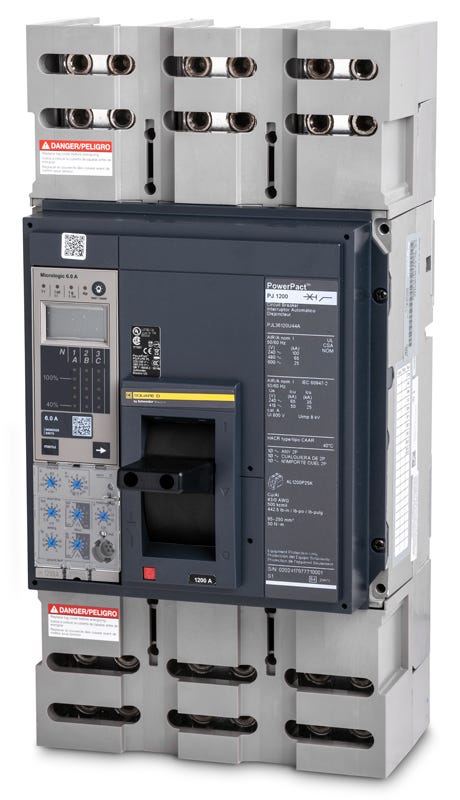

Schneider Electric / Square D PJL36120U44A Molded Case Circuit Breaker
- 1200A
- 3 Pole
- Unit Mount
Schneider Electric / Square D
PJL36120U44A
Molded Case Circuit Breaker
Brand
Schneider Electric / Square D
SKU
PJL36120U44A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Schneider Electric / Square D PJL36120U44A - 1200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Schneider Electric / Square D PJL36120U44A - 1200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Schneider Electric / Square D |
|---|---|
| Series | PJL |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 480-1200A |
|---|
| Frame Type | PJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D QED Switchboards, Model 6 Motor Control Centers, PowerPacT P-Frame Enclosures |
| Wire Gauge | (4) 3/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Trip Unit Model | MicroLogic 6.0A |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Communication Module |
|---|---|
| Accessories | Micrologic 6.0A Trip Unit, Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, True RMS Sensing, Phase Loss Protection, Visual Trip Indicator, RoHS Compliant, Mercury Free |
Sold out
Quantity
Schneider Electric / Square D PJL36120U44A - 1200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Schneider Electric / Square D |
|---|---|
| Series | PJL |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 480-1200A |
|---|
| Frame Type | PJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D QED Switchboards, Model 6 Motor Control Centers, PowerPacT P-Frame Enclosures |
| Wire Gauge | (4) 3/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Trip Unit Model | MicroLogic 6.0A |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Communication Module |
|---|---|
| Accessories | Micrologic 6.0A Trip Unit, Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, True RMS Sensing, Phase Loss Protection, Visual Trip Indicator, RoHS Compliant, Mercury Free |
Similar Items
1200A 3 Pole Molded Case Circuit Breaker
1200A 3 Pole Molded Case Circuit Breaker
1200A 3 Pole Molded Case Circuit Breaker
Description
Designed for high-capacity industrial applications, this 1200A PowerPacT P-Frame breaker mounts into Square D QED switchboards and Model 6 motor control centers. It features a sophisticated Micrologic 6.0A electronic trip unit with an integrated ammeter and adjustable LSIG parameters, including ground-fault protection. The 80% rated assembly utilizes true RMS sensing to maintain reliable overcurrent defense across diverse 480VAC and 600VAC commercial environments.Specifications
| Brand | Schneider Electric / Square D |
|---|---|
| Series | PJL |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 480-1200A |
|---|
| Frame Type | PJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D QED Switchboards, Model 6 Motor Control Centers, PowerPacT P-Frame Enclosures |
| Wire Gauge | (4) 3/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Trip Unit Model | MicroLogic 6.0A |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Communication Module |
|---|---|
| Accessories | Micrologic 6.0A Trip Unit, Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, True RMS Sensing, Phase Loss Protection, Visual Trip Indicator, RoHS Compliant, Mercury Free |
Product FAQs
6 answersWhat type of trip unit is equipped on the PJL36120U44A breaker?
This breaker includes a MicroLogic 6.0A electronic trip unit. It provides integrated ammeter functionality alongside adjustable LSIG (Long-time, Short-time, Instantaneous, and Ground-Fault) protection for precise system coordination.
What is the recommended terminal tightening torque for the PJL36120U44A?
The factory lugs require a tightening torque of 442.5 lb-in (50 N.m) when using 3/0 AWG to 500 kcmil aluminum or copper conductors.
What is the correct replacement lug kit for this 1200A P-Frame breaker?
The standard mechanical lug kit for this unit is part number AL1200P25K, which includes a set of three lugs that each accept four 3/0 AWG to 500 kcmil conductors.
Which enclosures and switchboards are compatible with the PJL36120U44A?
This feed-thru unit mount breaker is designed for installation in Square D QED switchboards, Model 6 motor control centers, and PowerPacT P-Frame enclosures.
Is the PJL36120U44A circuit breaker rated for 80% or 100% continuous current?
This standard catalog number is 80% rated. For a 100% continuous current rating, the equivalent part number requires a C suffix (PJL36120CU44A).
Can the PJL36120U44A be installed in an I-Line panelboard?
No, this specific breaker features a unit-mount, feed-thru design. Breakers intended for I-Line panelboards require a plug-on mounting base, such as the PJA frame variants (for example, PJA36120U44A).
