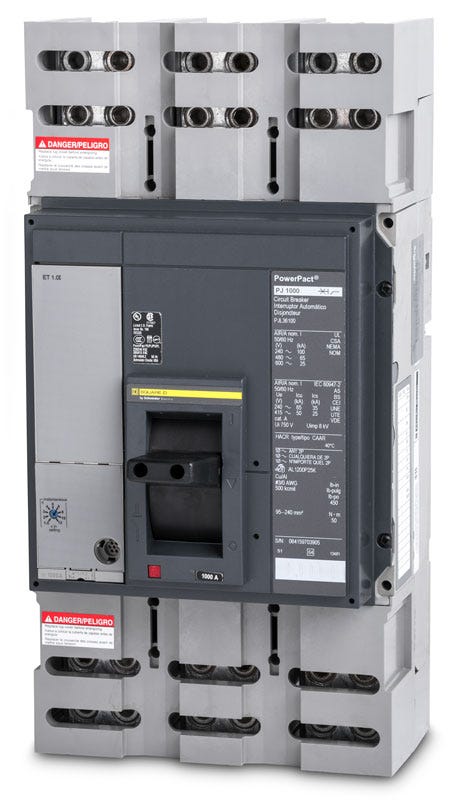

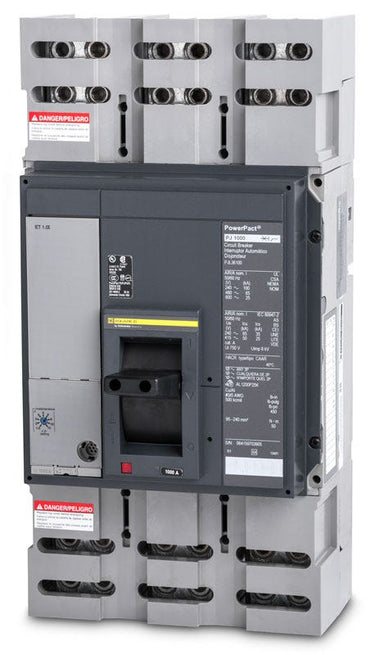

Square D PJL36100 Molded Case Circuit Breaker
- 1000A
- 3 Pole
- Unit Mount
Square D
PJL36100
Molded Case Circuit Breaker
Brand
Square D
SKU
PJL36100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D PJL36100 - 1000A 3 Pole Molded Case Circuit Breaker
New
Quantity

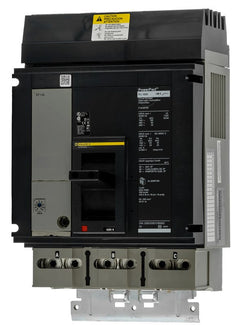

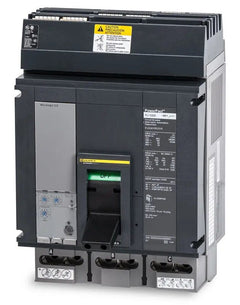

Similar Items
1000A 3 Pole Molded Case Circuit Breaker
1000A 3 Pole Molded Case Circuit Breaker
1000A 3 Pole Molded Case Circuit Breaker
Description
The Square D PJL36100 is a 1000A PowerPacT P-Frame molded case circuit breaker built for industrial applications. It utilizes an electronic trip unit for precise long-time and instantaneous (LI) protection. This unit-mount MCCB installs into Square D QED switchboards and Model 6 motor control centers, serving as a reliable replacement for legacy PE Series breakers.Specifications
| Brand | Square D |
|---|---|
| Series | PJL |
| Amperage | 1000A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Frame Type | PJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D QED Switchboards, Model 6 Motor Control Centers, PowerPacT P-Frame Enclosures |
| Wire Gauge | (4) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | None (Standard Configuration) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | 80% Rated, HACR Rated, True RMS Sensing, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
8 answersWhat size wire can the lugs on the PJL36100 accommodate?
The factory-installed lugs accept four 3/0 AWG to 500 kcmil aluminum or copper conductors per phase. The recommended tightening torque for these lugs is 442.5 lb-in (50 N.m).
Can I install the PJL36100 in an I-Line panelboard?
No. The PJL36100 is a unit-mount circuit breaker with lugs on both the line and load ends. It is designed for use in Square D QED switchboards, Model 6 Motor Control Centers, and individual PowerPacT P-frame enclosures, rather than I-Line plug-on panelboards.
What does the "LI" trip function code mean on this breaker?
The LI designation indicates that the electronic trip unit provides Long-Time (L) and Instantaneous (I) protection. It does not include Short-Time (S) or Ground Fault (G) protection functions.
What does the "J" in the PJL36100 catalog number signify?
In the Square D PowerPacT P-frame series, the "J" indicates the interrupting rating level. For this breaker, it signifies a maximum interrupting capacity of 100 kA at 240V AC, 65 kA at 480V AC, and 25 kA at 600V AC.
Does the PJL36100 include ground fault protection?
No. This specific model features an LI (Long-Time and Instantaneous) electronic trip unit, which does not provide equipment ground fault protection. If ground fault protection is required, a breaker with an LSIG trip unit is necessary.
Is the trip unit on the PJL36100 field-interchangeable?
The PJL36100 comes standard with a fixed ET 1.0I electronic trip unit. Unlike the advanced Micrologic trip units available for other PowerPacT P-frame models, the basic ET 1.0I trip unit is not interchangeable in the field.
Can the PJL36100 replace older Square D 1000A frame breakers?
The PowerPacT P-frame is the modern replacement for legacy Square D 1000A to 1200A frames. However, because the physical dimensions and mounting footprints differ from older legacy frames, retrofitting older switchboards may require specific mounting hardware or adapter kits.
How is the PJL36100 mounted in an enclosure?
This is a unit-mount breaker, meaning it is bolted directly to the backpan or mounting surface of the enclosure or switchboard. It uses mechanical lugs on both the line and load sides for hardwired connections, rather than plugging onto a busbar.
