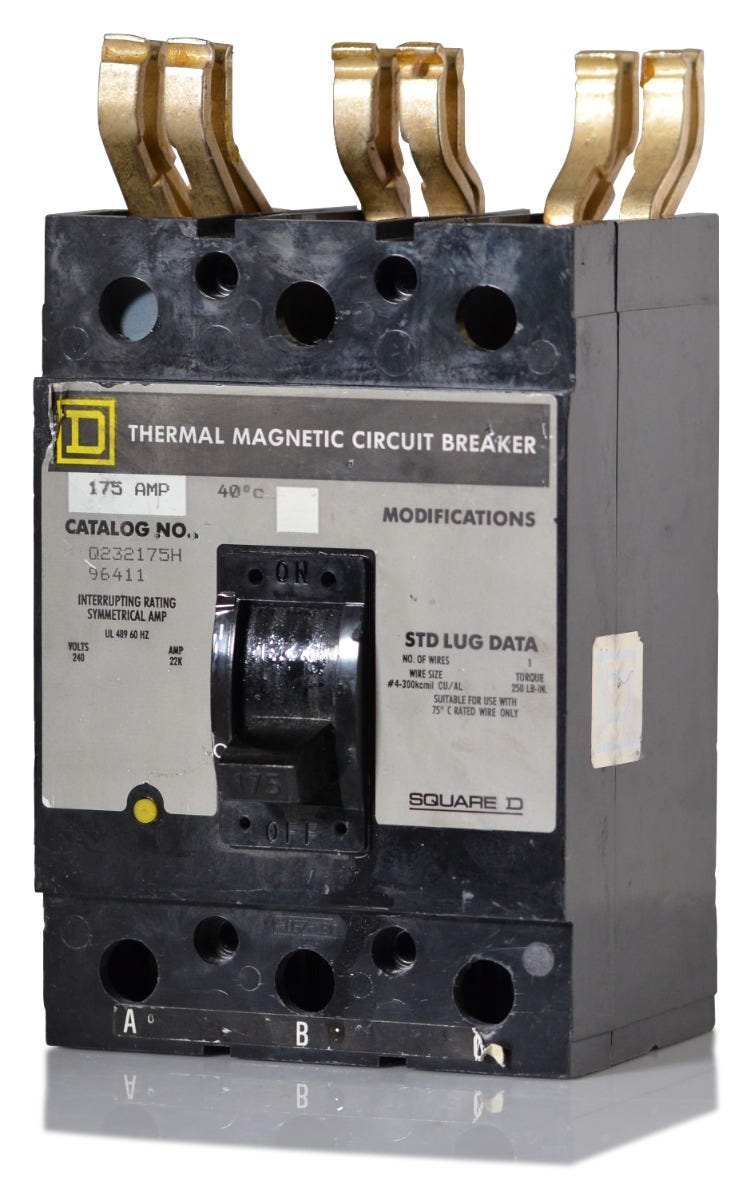

Square D Q232175H Molded Case Circuit Breaker
- 175A
- 3 Pole
- I-Line
Square D
Q232175H
Molded Case Circuit Breaker
Brand
Square D
SKU
Q232175H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D Q232175H - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Square D Q232175H is a 3-pole, 175A molded case circuit breaker from the legacy Q2 frame family. It provides reliable overcurrent protection for heavy-duty distribution systems. This unit mounts into Square D I-Line panelboards, utilizing a plug-on phase connection. As a legacy component, it is commonly replaced by the modern PowerPact QDA32175. Rated for 22kAIC at 240VAC, this MCCB features fixed thermal-magnetic LI trip technology.Specifications
| Brand | Square D |
|---|---|
| Part Number | Q232175H |
| Series | Q2 |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | Q232 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity |
Product FAQs
6 answersWhat type of panelboard accepts the Q232175H circuit breaker?
This breaker features an I-Line style plug-on connection designed exclusively for Square D I-Line panelboards and switchboards. It will not fit in NQ, NF, or QO load centers.
Is the Q232175H a current production model?
No, the Q2 frame is a legacy series that has been discontinued by Schneider Electric. The direct modern replacement for this I-Line breaker is the PowerPact Q-frame series, specifically the QDA32175.
What are the wire size and torque requirements for the load lugs?
The standard mechanical lugs accept 4 AWG to 300 kcmil copper or aluminum conductors. The required tightening torque for these terminals is 250 lb-in.
What does the H suffix mean in the Q232175H part number?
The H indicates a High Interrupting Capacity rating. Standard Q2 breakers typically offer a 10kAIC rating, whereas this model provides an upgraded 22kAIC at 240VAC.
Can the Q232175H be installed in 480V or 600V systems?
No, this breaker is strictly rated for a maximum of 240VAC. It is not suitable for 480V or 600V distribution systems.
Does the Q232175H feature an adjustable trip unit?
No, this breaker utilizes a fixed thermal-magnetic trip unit. Both the long-time overload and instantaneous short-circuit trip functions are factory set and cannot be adjusted in the field.
