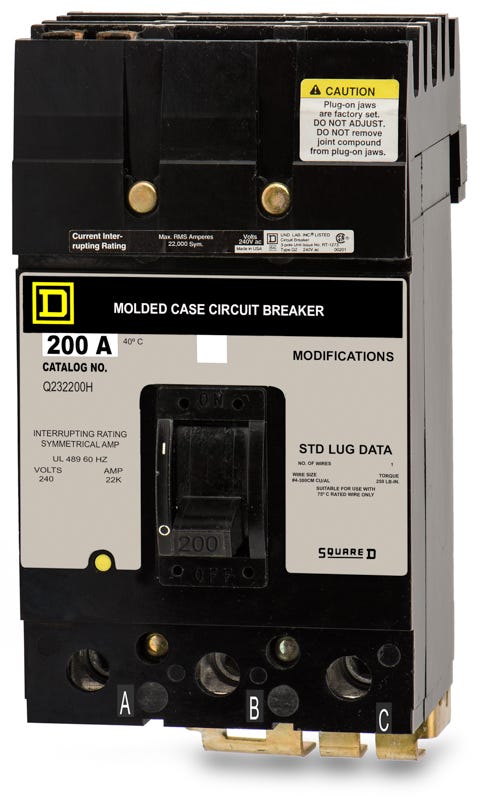

Square D Q232200H Molded Case Circuit Breaker

This breaker requires a Square D I-Line panelboard. It features an I-Line style plug-in connection that mounts directly to the internal panelboard bus assembly.

For facilities modernizing their electrical infrastructure, the Square D PowerPact QDA32200 serves as the current active equivalent for this legacy Q-Frame breaker.

No. Because this is an I-Line breaker, the line side utilizes a plug-in jaw that connects directly to the panelboard bus. Wire lugs are only present on the load side for your outgoing conductors.

In Square D Q-Frame nomenclature, the "H" designates a high interrupting capacity. This model provides a 22kAIC short-circuit rating at 240VAC, offering higher fault current handling than standard-interrupting versions of the same frame.

No, the Q232200H features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous (LI) trip thresholds are factory-set and cannot be modified in the field.

Yes, the standard factory load lugs on this breaker are dual-rated for both aluminum (Al) and copper (Cu) wire, accommodating sizes from 4 AWG up to 300 kcmil.

No, this is a standard thermal-magnetic breaker designed for basic long-time overload and instantaneous short-circuit protection. It does not contain integrated ground fault equipment protection or life safety electronics.
