Square D Q2L2125 Molded Case Circuit Breaker
- 125A
- 2 Pole
- Unit Mount
Square D
Q2L2125
Molded Case Circuit Breaker
Brand
Square D
SKU
Q2L2125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

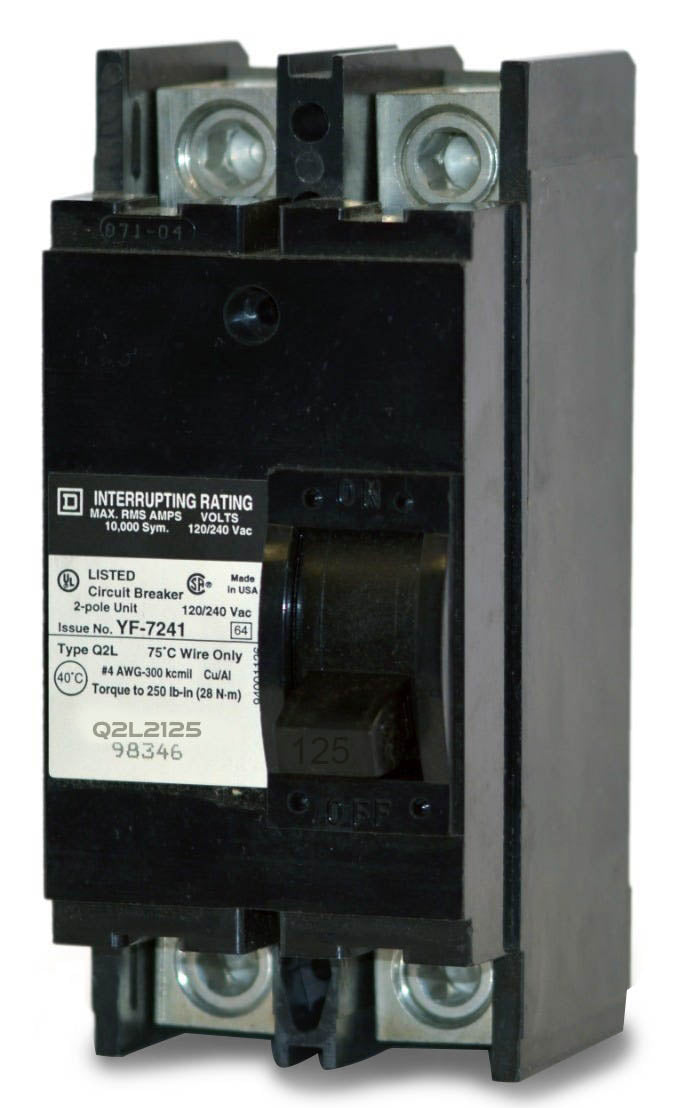

Square D Q2L2125 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker

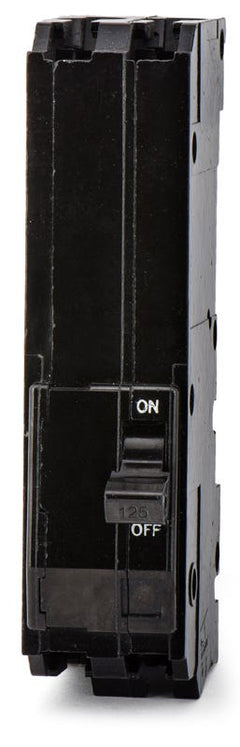

125A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
Description
Designed for standalone mounting, this 125A molded case circuit breaker ensures reliable electrical safety across commercial and industrial facilities. The unit-mount configuration allows it to install securely into Square D individual enclosures, switchboards, and NQOD panelboards without requiring a specialized bus connection.Specifications
| Brand | Square D |
|---|---|
| Series | Q2L |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q2L |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Individual Enclosures, Switchboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip, HACR Rated |
Product FAQs
7 answersWhich panelboards and enclosures accept the Q2L2125 breaker?
This unit-mount breaker is compatible with legacy Square D NQOD panelboards, standard switchboards, and specific Square D individual enclosures designed for Q-Frame breakers.
How is the Q2L2125 installed in an electrical system?
It utilizes a feed-thru, unit-mount configuration. Instead of plugging onto a busbar, it bolts securely into place and uses line and load lugs to make electrical connections.
What are the acceptable wire sizes for the Q2L2125 lugs?
The standard lugs accommodate 4 AWG to 300 kcmil wire and are rated for both aluminum and copper conductors.
How does the thermal-magnetic trip unit function on this breaker?
The trip unit provides fixed long-time (thermal) protection against overloads and fixed instantaneous (magnetic) protection against short circuits. The trip settings are factory-calibrated and cannot be adjusted in the field.
Does this breaker include integrated ground fault equipment protection?
No. The Q2L2125 is a standard thermal-magnetic breaker. It does not provide ground fault or arc fault protection.
Is the Q2L2125 part of a current or legacy product line?
The Q2L series is a legacy molded case circuit breaker line from Square D. It is primarily sourced to maintain or expand existing NQOD panelboards and older switchboards rather than for new construction.
Can this 240V breaker be installed on a 120V circuit?
Yes. While its maximum rating is 240VAC, it is fully compatible with 120/240VAC single-phase systems and maintains its 10kA interrupting capacity at both voltages.
