Square D Q2L2100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Unit Mount
Square D
Q2L2100
Molded Case Circuit Breaker
Brand
Square D
SKU
Q2L2100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

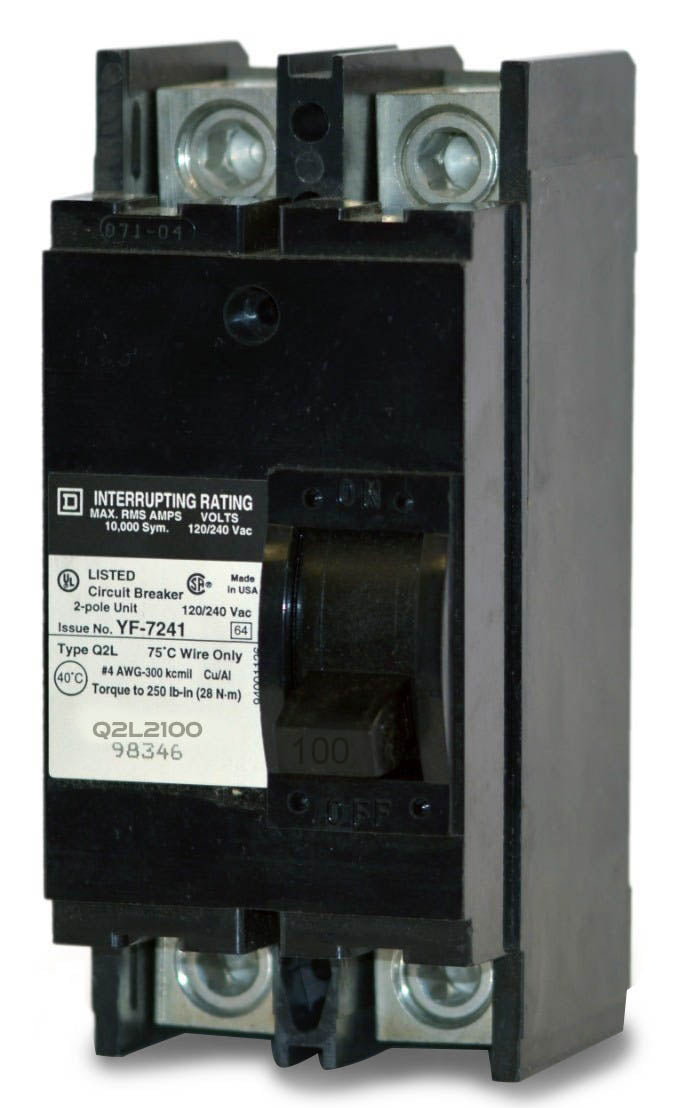

Square D Q2L2100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items

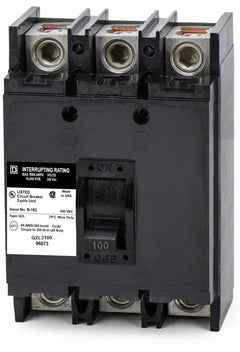

100A 3 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Built for versatile industrial applications, the Q2L2100 delivers dependable thermal-magnetic protection in a compact unit-mount design. This 100-ampere device integrates seamlessly into Square D individual enclosures, switchboards, and legacy NQOD panelboards using standard line and load lugs. Equipped with fixed long-time and instantaneous trip functions, it provides a 10kA interrupt capacity and features a Visi-Trip indicator to help maintenance personnel quickly spot tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Series | Q2L |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q2L |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Individual Enclosures, Switchboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip, HACR Rated |
Product FAQs
6 answersCan the Q2L2100 be used in modern NQ panelboards?
No. The Q2L2100 is designed specifically for legacy NQOD panelboards, switchboards, and individual enclosures. Modern NQ panels require different breaker frames, such as the PowerPact Q series or QO series depending on the amperage and bus configuration.
What does a feed-thru connection mean for the Q2L2100?
As a feed-thru, unit-mount breaker, the Q2L2100 does not plug onto a panelboard busbar or use I-Line jaws. Instead, it bolts directly to the backpan or enclosure and requires wire connections at both the line and load lugs.
Can the Q2L2100 be reverse fed?
Yes. Because this thermal-magnetic breaker uses standard lugs on both ends and does not have printed line and load restrictions, it can be reverse fed for use as a main breaker in control panels and switchboards.
What type of protection do the Long-Time and Instantaneous trip functions provide?
The Long-Time (L) function provides delayed thermal protection against sustained overloads, while the Instantaneous (I) function offers immediate magnetic tripping to clear severe short circuits.
Is the Q2L2100 still in active production?
The Q2L is a legacy Q-frame molded case circuit breaker. While it remains a direct replacement for existing NQOD panelboards and older switchboards, Square D has transitioned to the PowerPact Q-frame for newer applications.
How can maintenance personnel identify if the Q2L2100 has tripped?
The breaker is equipped with a Visi-Trip indicator. When a fault occurs and the breaker trips, a high-visibility red indicator appears in the window, making it easy to spot the tripped circuit inside a crowded panelboard.
