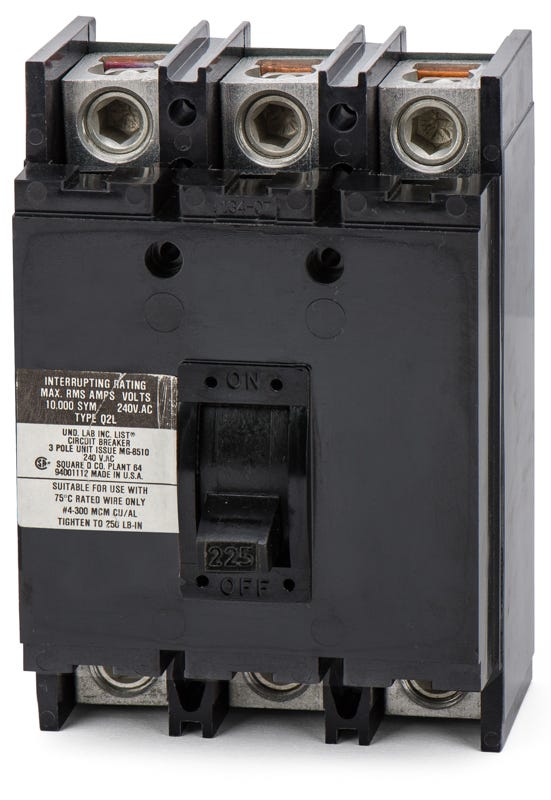

Square D Q2L3225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
Square D
Q2L3225
Molded Case Circuit Breaker
Brand
Square D
SKU
Q2L3225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D Q2L3225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D Q2L3225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | Q2L3225-R |
| Series | Q2L |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | Q2L |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Quantity
Square D Q2L3225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | Q2L |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | Q2L |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the Square D Q2L3225 provides long-time and instantaneous (LI) trip functions. This 225A molded case circuit breaker delivers reliable thermal-magnetic protection for legacy Q-Frame systems. Designed with a unit mount configuration, it installs into Square D enclosures, switchboards, and NQOD panelboards. For modern upgrades, this legacy unit is replaced by the PowerPact QBL32225.Specifications
| Brand | Square D |
|---|---|
| Series | Q2L |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | Q2L |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
4 answersCan the Q2L3225 be installed in modern Square D panelboards?
The Q2L3225 is a legacy Q-Frame breaker primarily designed for older NQOD panelboards, switchboards, and individual enclosures. It is not designed to plug into modern NQ or NF series panelboards.
What is the modern replacement for the legacy Q2L3225 circuit breaker?
The direct modern replacement for this legacy Q-Frame breaker is the PowerPact QBL32225. However, installing the exact Q2L3225 preserves the original UL listing of legacy NQOD panels without requiring field modifications.
How does a feed-thru Q2L breaker mount inside an enclosure?
As a unit-mount, feed-thru circuit breaker, the Q2L3225 bolts directly to the mounting pan or enclosure backplate using mounting screws. It does not plug onto a panelboard busbar like standard branch breakers.
Can the Q2L3225 be used as a main breaker in NQOD panels?
Yes, Q2L frame breakers are frequently utilized as main breakers in NQOD panelboards. This requires the appropriate main breaker add-on kit to adapt the unit-mount breaker to the panel interior.
