Square D QBA220702 Molded Case Circuit Breaker
- 70A
- 2 Pole
- I-Line
Square D
QBA220702
Molded Case Circuit Breaker
Brand
Square D
SKU
QBA220702
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

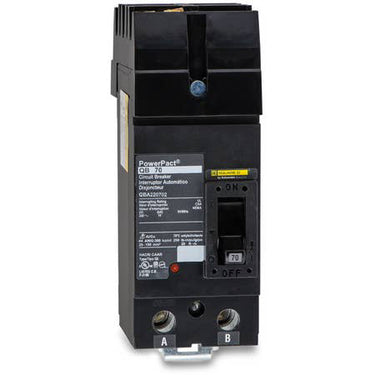

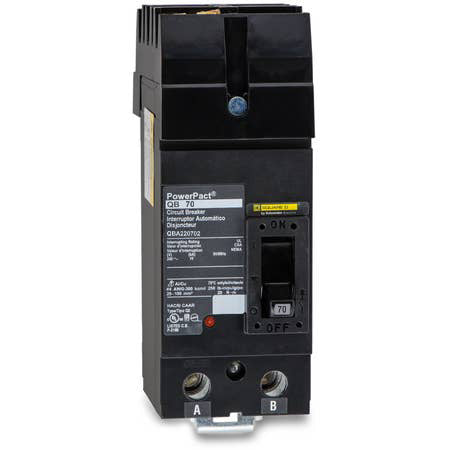

Square D QBA220702 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial environments, the Square D QBA220702 MCCB delivers 70A of protection from the PowerPacT Q-Frame family. It provides reliable overcurrent safety for demanding electrical distribution systems. This unit mounts into Square D I-Line panelboards and switchboards. It features an AC phase connection and serves as an exact replacement for legacy Q22070 breakers. Equipped with thermal-magnetic trip technology, it delivers long-time and instantaneous (LI) protection.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBA220702 |
| Series | QBA |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG-300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards are compatible with the QBA220702 circuit breaker?
This PowerPacT Q-Frame breaker is designed exclusively for Square D I-Line panelboards and switchboards. It will not fit in standard NQ or NF panels, which require unit-mount breakers.
How does the QBA220702 connect to the electrical system?
It utilizes an I-Line bracket mounting system. The line side plugs directly into the I-Line bus stack, eliminating the need for line-side wiring. The load side features mechanical lugs that accept 4 AWG to 300 kcmil aluminum or copper wire.
Can the QBA220702 be used in systems requiring high fault current ratings?
The QBA220702 is rated for a maximum of 10 kAIC at 240V AC. For applications requiring higher interrupting capacities, you must upgrade to the QD (25 kAIC), QG (65 kAIC), or QJ (100 kAIC) series within the PowerPacT Q-Frame family.
Can I adjust the trip curve settings on the QBA220702?
No, the QBA220702 features a fixed thermal-magnetic trip unit. The long-time overload and instantaneous short-circuit thresholds are factory-set, meaning you cannot dial in custom trip curves for specialized coordination.
Does the QBA220702 include a manual testing feature?
Yes, like all PowerPacT Q-Frame circuit breakers, it features an integral push-to-trip button on the cover. This allows electricians to manually trip the breaker to verify the mechanical operation of the trip mechanism during maintenance.
