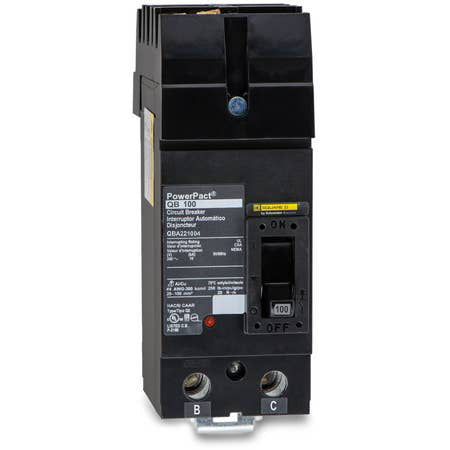

Square D QBA221004 Molded Case Circuit Breaker
- 100A
- 2 Pole
- I-Line
Square D
QBA221004
Molded Case Circuit Breaker
Brand
Square D
SKU
QBA221004
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBA221004 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 2 Pole Molded Case Circuit Breaker
110A 2 Pole Molded Case Circuit Breaker
110A 2 Pole Molded Case Circuit Breaker
Description
Providing 100 amps of reliable power distribution, this PowerPact Q-Frame circuit breaker is tailored for industrial facilities. It delivers proven thermal-magnetic protection. The unit utilizes a BC phase connection for integration into Square D I-Line switchboards. It is a verified substitute for the QDA221004 and replaces older Q22100 components. Rated for 10kAIC at 240VAC, this HACR-approved device features a Visi-Trip mechanism that clearly flags tripped conditions to minimize downtime.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBA221004 |
| Series | QBA |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG-300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Visual Trip Indicator |
Product FAQs
6 answersWhere is the QBA221004 circuit breaker typically installed?
This PowerPact Q-frame breaker is designed specifically for use in Square D I-Line panelboards and switchboards. It features an I-Line style plug-in connection on the line side, allowing it to snap directly onto the panelboard busbar for a secure installation.
How are wire connections made on the QBA221004?
The line side utilizes an I-Line plug-in connection that mounts directly to the panelboard bus. The load side is equipped with mechanical lugs that accept copper or aluminum wire ranging from 4 AWG to 300 kcmil.
How can I verify if the QBA221004 has tripped?
This breaker features a Visi-Trip mechanism that provides a clear visual indication when a trip occurs. It also includes an integral push-to-trip button on the cover to manually trip the breaker for safety testing and maintenance.
Can the QBA221004 replace older legacy breakers?
Yes, this breaker is a direct replacement for older Q22100 components in existing Square D I-Line switchboards and panelboards.
What is the continuous current rating for this breaker?
The QBA221004 carries a standard continuous current rating of 80 percent of its 100A maximum capacity.
How does the thermal-magnetic trip unit in the QBA221004 operate?
The fixed thermal-magnetic trip unit provides dual protection. The thermal component responds to gradual overloads using a bimetallic strip, while the magnetic component reacts immediately to short circuits.
