Square D QBA221101 Molded Case Circuit Breaker
- 110A
- 2 Pole
- I-Line
Square D
QBA221101
Molded Case Circuit Breaker
Brand
Square D
SKU
QBA221101
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

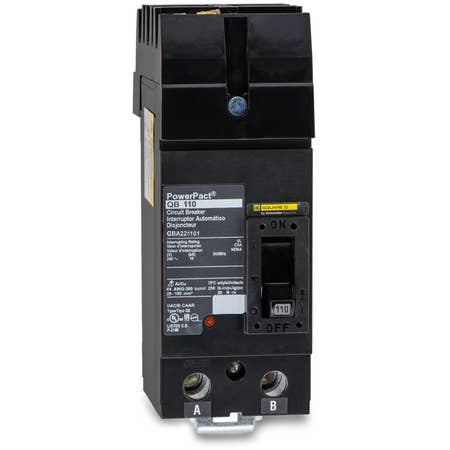

Square D QBA221101 - 110A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
110A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
The QBA221101 is a thermal-magnetic MCCB from Square D's PowerPacT Q-Frame family, engineered for commercial power distribution. This 2-pole breaker installs into Square D I-Line panelboards and switchboards. It serves as a replacement for the legacy Q22110, offering an AB phase connection and load-side lugs. Rated for 10kAIC at 240VAC, the unit features fixed long-time and instantaneous (LI) trip functions. It includes a Visi-Trip indicator and is HACR rated for HVAC equipment.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBA221101 |
| Series | QBA |
| Amperage | 110A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated, Phase Connection AB |
Product FAQs
7 answersWhat panelboards are compatible with the QBA221101?
The QBA221101 is an I-Line style plug-on circuit breaker designed exclusively for use in Square D I-Line panelboards and switchboards. It is not compatible with standard QO, NQ, or NF load centers.
Are there higher interrupting rating alternatives to the QBA221101?
Yes. The QBA221101 has a 10 kAIC rating at 240V. If your system requires a higher short-circuit current rating, Square D offers the QDA221101 (25 kAIC), QGA221101 (65 kAIC), and QJA221101 (100 kAIC) as direct I-Line plug-on replacements.
Does the QBA221101 require a separate mounting bracket?
No. As an I-Line breaker, the QBA221101 features plug-on line-side jaws that connect directly to the I-Line bus stack, requiring no additional mounting brackets or hardware.
What wire sizes are accepted by the lugs on the QBA221101?
The load-side lugs on this breaker accept 4 AWG to 300 kcmil aluminum or copper wire.
Does the QBA221101 have an adjustable trip unit?
No, the QBA221101 features a fixed thermal-magnetic trip unit with non-adjustable long-time and instantaneous (LI) trip functions.
Can the QBA221101 replace older Q2-series breakers?
Yes, the PowerPacT Q-frame is a direct replacement for legacy Square D Q2-series circuit breakers of the same configuration.
What does the 1 at the end of the QBA221101 catalog number indicate?
In the Square D PowerPacT Q-frame I-Line series, the final digit indicates the phase connection. The 1 in QBA221101 specifies an AB phase connection for mounting on the panelboard bus.
