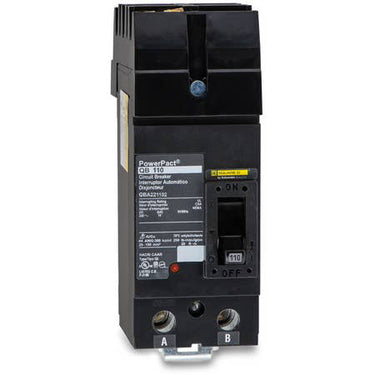

Square D QBA221102 Molded Case Circuit Breaker
- 110A
- 2 Pole
- I-Line
Square D
QBA221102
Molded Case Circuit Breaker
Brand
Square D
SKU
QBA221102
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

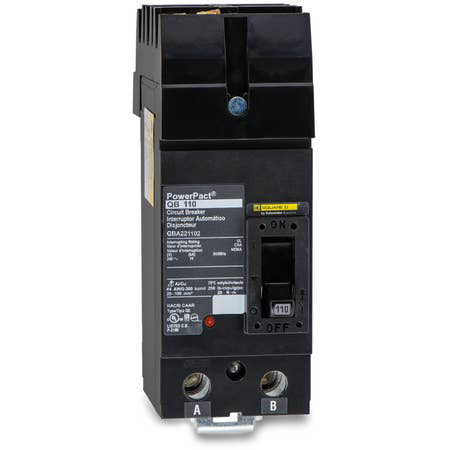

Square D QBA221102 - 110A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items

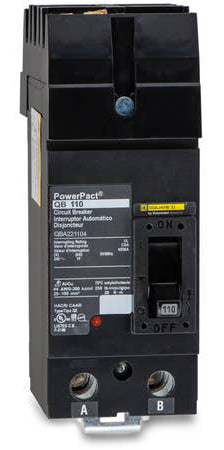

110A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Built for industrial power systems, the QBA221102 is a 2-pole molded case circuit breaker manufactured by Square D. Designed specifically for I-Line panelboards, this breaker utilizes an AC phase connection. It replaces the older Q22110 model and serves as a substitute for the QDA221102. The breaker delivers a 10kAIC interrupting rating at 240VAC and utilizes fixed thermal and magnetic (LI) trip units. A built-in Visi-Trip indicator allows personnel to easily spot tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBA221102 |
| Series | QBA |
| Amperage | 110A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Phase Connection: AC |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Phase Connection AC, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator |
Product FAQs
8 answersWhat panelboards are compatible with the QBA221102 circuit breaker?
This breaker is designed exclusively for use in Square D I-Line panelboards and switchboards. It features a plug-on line connection and will not fit in standard NQ, NF, or QO enclosures.
What do the letters in the QBA221102 catalog number mean?
The letter 'Q' identifies the PowerPacT Q-frame family. 'B' denotes the standard interrupting rating of 10kAIC at 240VAC. 'A' indicates an I-Line plug-on mounting style with a standard ABC phase jaw configuration.
Can the QBA221102 replace older legacy breakers?
Yes, the PowerPacT Q-frame series serves as a direct replacement for legacy Square D Q2 series circuit breakers, such as the obsolete Q22110.
What is the difference between the QBA221102 and the QDA221102?
Both are 110A, 2-pole I-Line breakers, but they have different interrupting ratings. The QBA221102 has a standard 10kAIC rating at 240V, while the QDA221102 features a higher 25kAIC rating. The QDA221102 can be used as a substitute if a higher fault current rating is acceptable for your application.
How much bus space does this 2-pole breaker occupy in an I-Line panel?
The QBA221102 requires 3 inches of mounting space on the I-Line bus, as each pole of a Q-frame breaker is 1.5 inches wide.
Is the QBA221102 suitable for reverse feeding?
No. Because this breaker utilizes an I-Line plug-on jaw for the line-side connection, it is physically restricted to a forward-fed orientation and cannot be reverse fed.
Does this breaker include a Visi-Trip indicator?
Yes, Square D PowerPacT Q-frame breakers feature a built-in Visi-Trip visual indicator, allowing personnel to quickly identify a tripped breaker in a crowded panelboard.
Does the QBA221102 provide ground fault protection?
No. This breaker is equipped with a standard fixed thermal-magnetic trip unit (Long-Time and Instantaneous) for overload and short-circuit protection. It does not provide ground fault (GFCI) or equipment protection (EPD).
