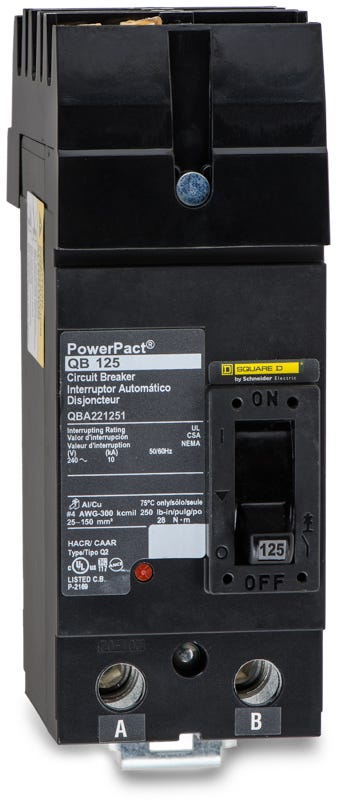

Square D QBA221251 Molded Case Circuit Breaker
- 125A
- 2 Pole
- I-Line
Square D
QBA221251
Molded Case Circuit Breaker
Brand
Square D
SKU
QBA221251
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBA221251 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QBA221251 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBA221251 |
| Series | QBA |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase Connection AB (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Visual Trip Indicator |
Sold out
Quantity
Square D QBA221251 - 125A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBA221251-R |
| Series | QBA |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase Connection AB (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Visual Trip Indicator |
Similar Items
125A 2 Pole Molded Case Circuit Breaker
110A 2 Pole Molded Case Circuit Breaker
110A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial power distribution, the QBA221251 is a 125A, two-pole molded case circuit breaker. It belongs to the PowerPact Q-frame family, offering fixed thermal-magnetic LI protection. This model is factory-configured with an AB phase connection. Its plug-on I-Line mounting ensures a secure fit within Square D I-Line panelboards and switchboards. Delivering a 10 kAIC capacity at 240VAC, the breaker is HACR rated for HVAC equipment and features a Visi-Trip visual indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBA221251 |
| Series | QBA |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase Connection AB (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat type of panelboards accept the QBA221251 circuit breaker?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It utilizes the I-Line plug-in mounting system, which allows for phase-isolated stab-on connections directly to the panel bus.
How much bus mounting space does the QBA221251 require?
As a 2-pole PowerPacT Q-frame breaker, it requires 3 inches of mounting space in an I-Line panel. Each pole measures 1.5 inches wide.
What does the QBA prefix indicate in the QBA221251 catalog number?
In the Schneider Electric nomenclature, Q indicates the PowerPacT Q-frame family, B denotes the 10kAIC interrupting rating at 240VAC, and A specifies the I-Line plug-in mounting style.
How is the QBA221251 connected on the line and load sides?
The line side features I-Line plug-on jaw connections that snap directly onto the panel bus. The load side is equipped with mechanical lugs that accept 4 AWG to 300 kcmil aluminum or copper conductors.
What is the default phase connection for the QBA221251?
The standard QBA221251 is factory configured for an A-B phase connection on the I-Line bus.
Is the QBA221251 part of the PowerPacT series?
Yes, it is a PowerPacT Q-frame molded case circuit breaker. It serves as the modern replacement for legacy Square D Q-frame I-Line breakers with matching 125A and 10kAIC specifications.
