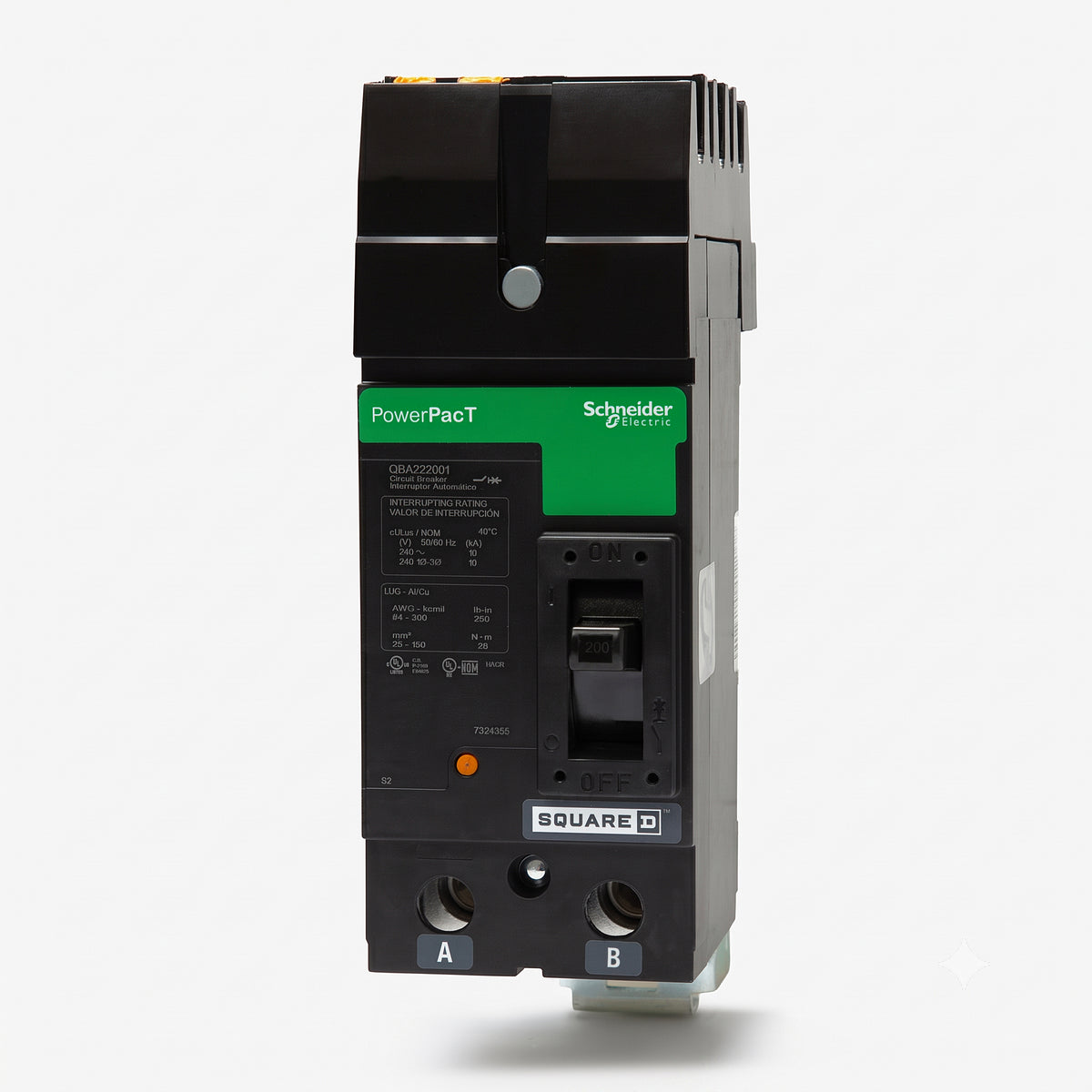

Square D QBA222001 Molded Case Circuit Breaker
- 200A
- 2 Pole
- I-Line
Square D
QBA222001
Molded Case Circuit Breaker
Brand
Square D
SKU
QBA222001
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBA222001 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QBA222001 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBA222001 |
| Series | QBA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection AB, 80% Rated |
Sold out
Quantity
Square D QBA222001 - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBA222001-R |
| Series | QBA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection AB, 80% Rated |
Similar Items
200A 2 Pole Molded Case Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
2 Pole Circuit Breaker
Description
Engineered for commercial applications, the Square D QBA222001 delivers 200A of thermal-magnetic protection. This PowerPacT Q-Frame MCCB features an AB phase connection and provides reliable long-time and instantaneous (LI) trip functions. It installs into Square D I-Line panelboards and serves as an exact replacement for the legacy Q22200 breaker. Rated at 10kAIC at 240VAC, this HACR-rated breaker includes a Visi-Trip indicator for quick fault identification and load-side lugs.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBA222001 |
| Series | QBA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection AB, 80% Rated |
Product FAQs
7 answersHow does the QBA222001 connect to the panelboard?

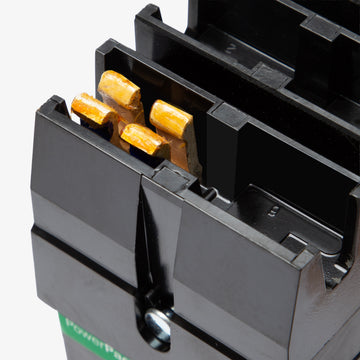

It utilizes a plug-on I-Line connection on the line side to snap directly onto the panelboard bus, while the load side uses standard mechanical lugs for wire termination.
What does the 1 at the end of the QBA222001 catalog number indicate?
The 1 suffix indicates an AB phase connection for the I-Line bus. This determines which two phases the breaker connects to when mounted in the panelboard.
Can the QBA222001 be used in 480V or 600V I-Line panelboards?
No, Square D PowerPacT Q-frame breakers have a maximum voltage rating of 240VAC. For 480V or 600V applications, a different frame size such as an H-frame or J-frame is required.
Can the QBA222001 replace older Square D circuit breakers?
Yes, the PowerPacT Q-frame is a direct replacement for legacy Square D Q2 series I-Line circuit breakers with matching specifications.
Is the QBA222001 suitable for HVAC applications?
Yes, this breaker is HACR rated, making it approved for use with heating, air conditioning, and refrigeration equipment.
Does this breaker include a push-to-trip button for testing?
Yes, Square D PowerPacT Q-frame breakers feature a built-in push-to-trip mechanism to manually verify the tripping function and mechanical operation.
How can I tell if the QBA222001 has tripped?
This breaker features a Visi-Trip indicator, which provides a clear visual indication when the breaker has tripped due to an overcurrent or short-circuit event.
