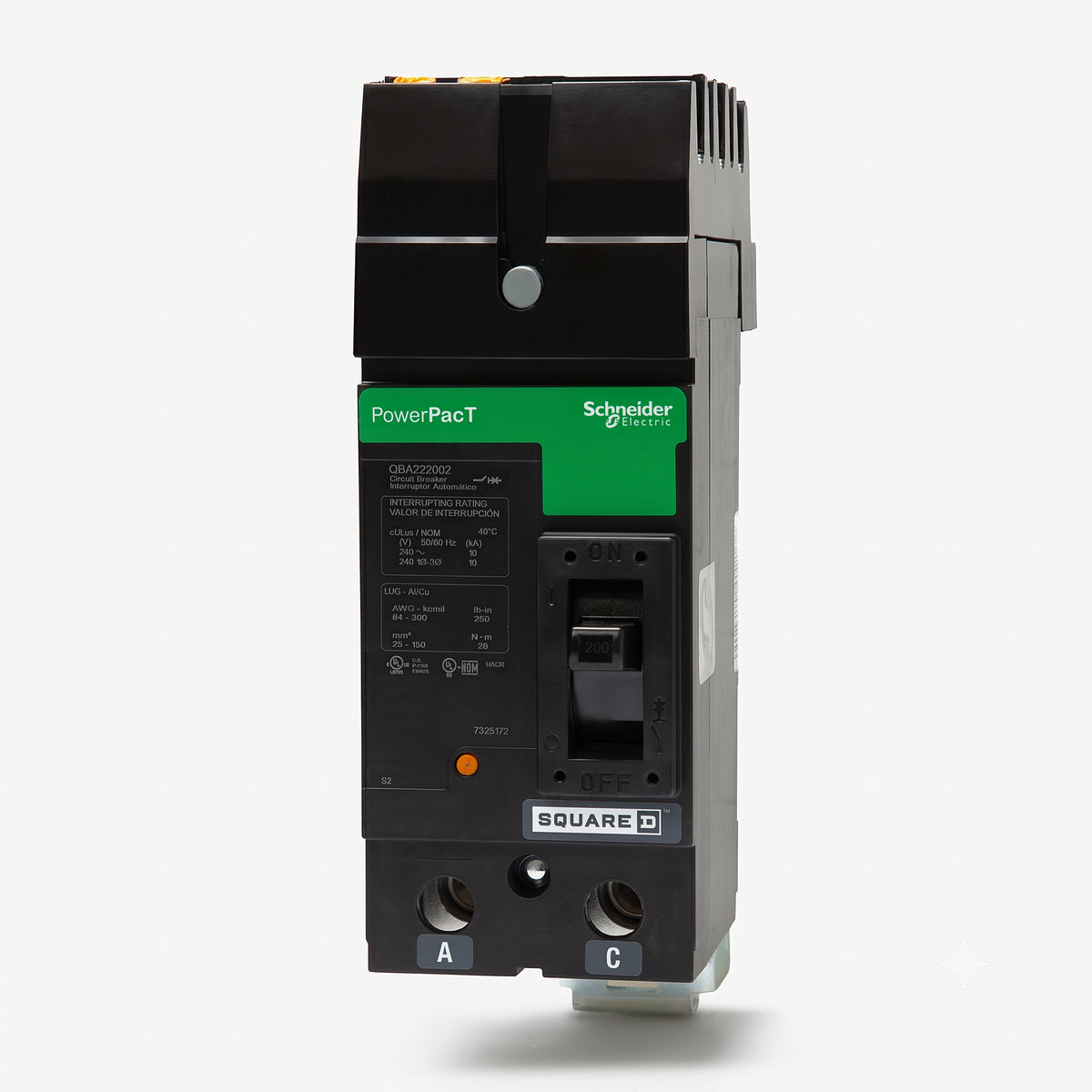

Square D QBA222002 Molded Case Circuit Breaker
- 200A
- 2 Pole
- I-Line
Square D
QBA222002
Molded Case Circuit Breaker
Brand
Square D
SKU
QBA222002
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBA222002 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QBA222002 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBA222002 |
| Series | QBA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Phase Connection AC, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator |
Sold out
Quantity
Square D QBA222002 - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBA222002-R |
| Series | QBA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Phase Connection AC, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator |
Similar Items
200A 2 Pole Molded Case Circuit Breaker
2 Pole Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty electrical distribution, this 200-amp thermal-magnetic MCCB provides essential long-time and instantaneous trip functions. It operates at 240VAC with a standard 10kA short-circuit current rating. Designed specifically for Square D I-Line panelboards, this model features an AC phase connection. It easily replaces older Q22200 units, ensuring continued compatibility within existing commercial infrastructure.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBA222002 |
| Series | QBA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Phase Connection AC, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator |
Product FAQs
8 answersWhat panelboards are compatible with the QBA222002 circuit breaker?
This breaker is designed exclusively for use in Square D I-Line panelboards and switchboards. It features an I-Line style plug-in connection for the line side and mechanical lugs on the load side.
Can the QBA222002 be used to replace older Square D breakers?
Yes, the QBA222002 is a direct replacement for legacy Square D Q22200 circuit breakers. It upgrades older systems to the current PowerPacT Q-Frame platform while maintaining the same physical footprint and I-Line mounting.
How are the connections made on the QBA222002?

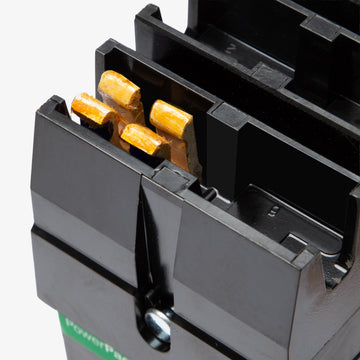

The line side utilizes I-Line plug-on jaws that connect directly to the panelboard bus. The load side features factory-installed mechanical lugs that accept 4 AWG to 300 kcmil aluminum or copper wire.
Can the QBA222002 be installed in 480V or 600V systems?
No, this PowerPacT Q-Frame breaker is rated for a maximum of 240VAC. Applying it to 480V or 600V electrical systems exceeds its design limits and violates safety standards.
Does this breaker require a separate mounting bracket for installation?

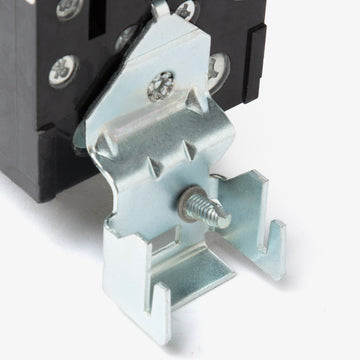

No, the QBA222002 features an integrated I-Line mounting bracket and plug-on jaws. This allows it to snap directly into the bus assembly of a compatible I-Line panelboard without additional mounting hardware.
What phase connection does the QBA222002 use on the panelboard bus?
The QBA222002 is configured for an AC phase connection. When installing this 2-pole breaker, ensure the I-Line panelboard bus layout aligns with the AC phase requirement.
Does the QBA222002 include a push-to-trip feature?
Yes, PowerPacT Q-Frame circuit breakers include an integral push-to-trip button on the cover. This allows electricians to manually trip the breaker to verify the mechanical operation of the trip mechanism during routine maintenance.
How does the trip mechanism function on the QBA222002?
It utilizes a thermal-magnetic trip unit with fixed long-time and instantaneous (LI) protection. It also features a trip-free mechanism, meaning the breaker will trip under fault conditions even if the handle is physically held in the ON position.
