Square D QBL22080 - 80A 2 Pole Molded Case Circuit Breaker

Brand Square D
SKU QBL22080
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

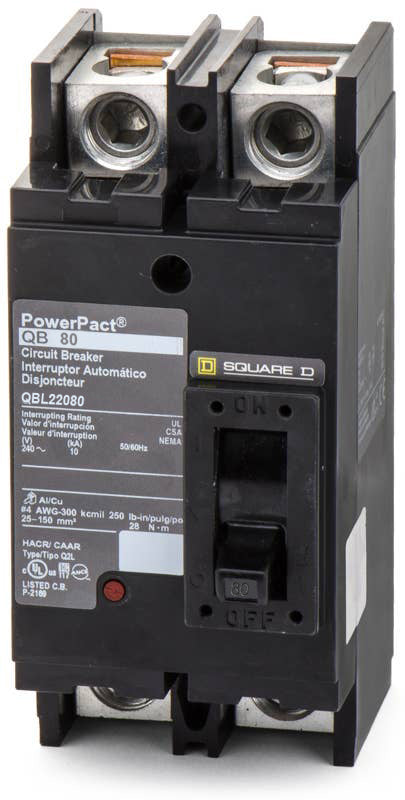

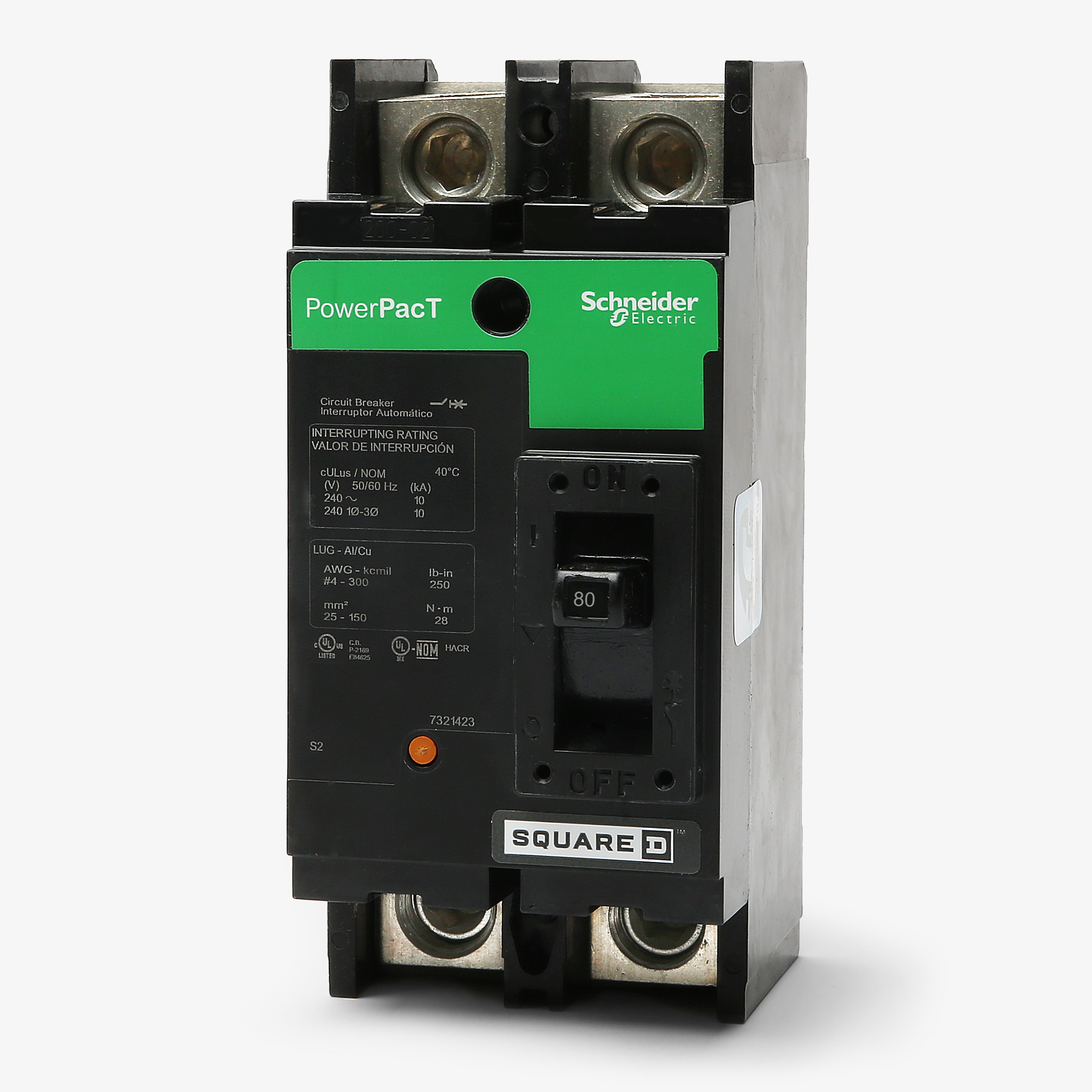

Square D QBL22080 - 80A 2 Pole Molded Case Circuit Breaker

Brand Square D
SKU QBL22080
Select Item Condition
Earn 391 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Square D QBL22080 - 80A 2 Pole Molded Case Circuit Breaker

New

$391.87 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Built to handle residential, commercial, and industrial loads, this 80-amp PowerPacT Q-Frame breaker utilizes fixed thermal and magnetic trip elements. It mounts easily into Square D Q2 enclosures, control panels, and meter mains requiring lug-to-lug connections. Upgrading older systems is simple since this component replaces discontinued Q22080 units. The integrated Visi-Trip indicator and standard 10kAIC rating ensure dependable performance and quick fault identification.

Specifications

Brand Square D
Series QBL
Amperage 80A
Voltage 208Y/120VAC, 240VAC
Poles 2
Phase 1
AIC Rating 10kA @ 208Y/120VAC, 10kA @ 240VAC
Mounting Style Unit Mount
Terminal Type Lugs
For Use With Square D Q2 Enclosures, Switchboards, Control Panels, Meter Mains
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic

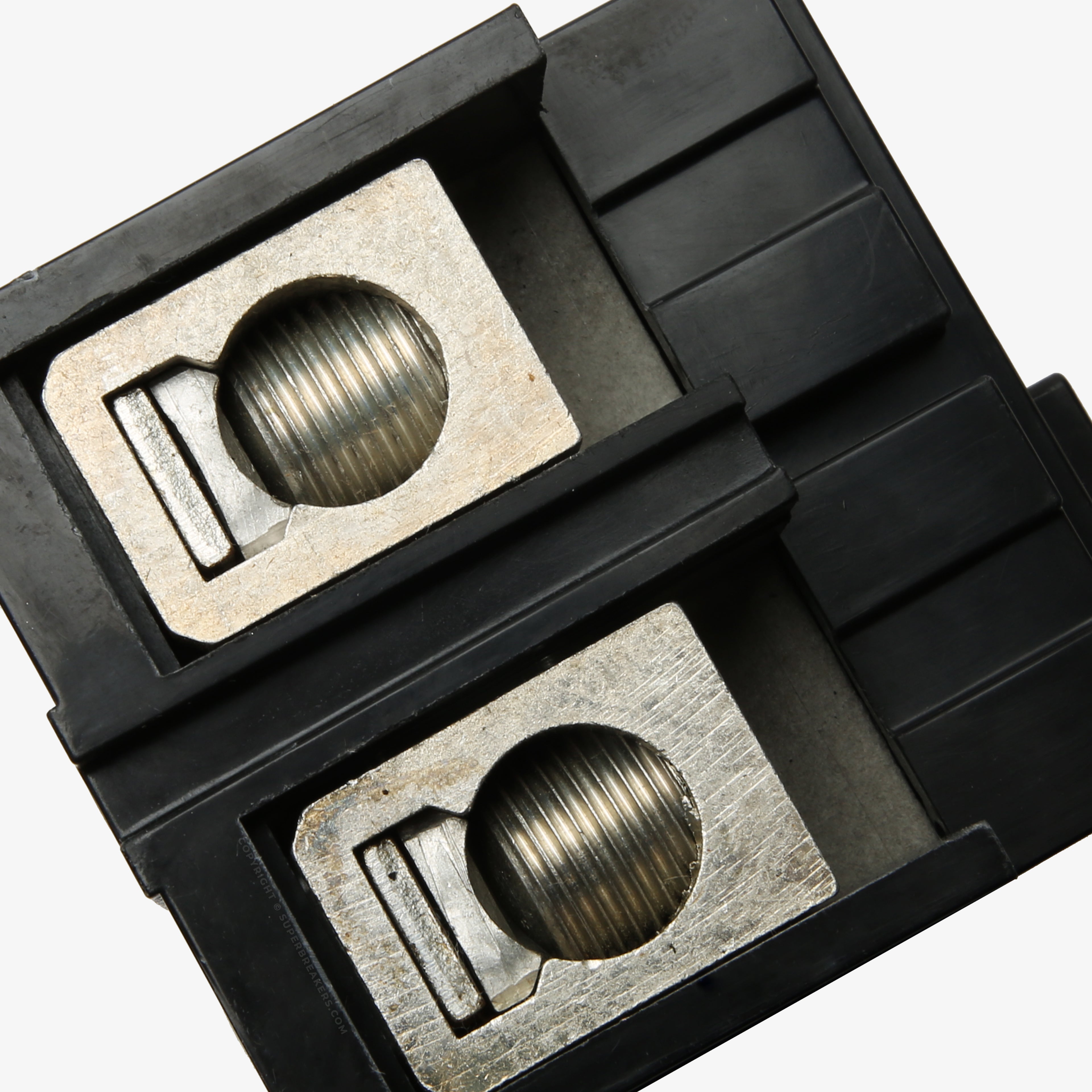

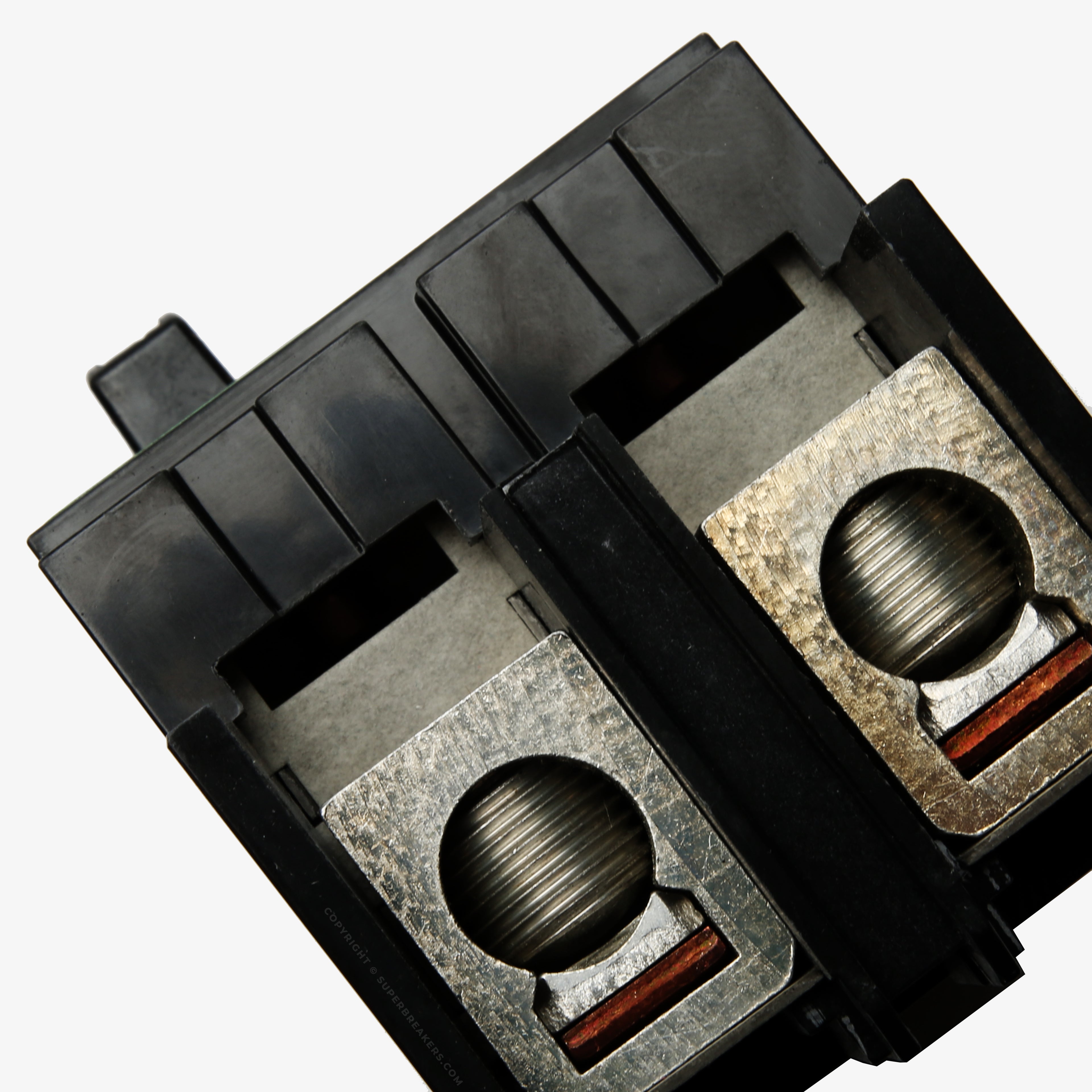

Wire Gauge 4 AWG - 300 kcmil (Al/Cu)
Max Wire 300 kcmil
Min Wire 4 AWG
Available Options Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment
Accessories Line and Load Lugs Included
Standards CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489
Approval CSA, IEC, NOM, UL
Temp Rating -25C to 70C
Construction Features HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator
