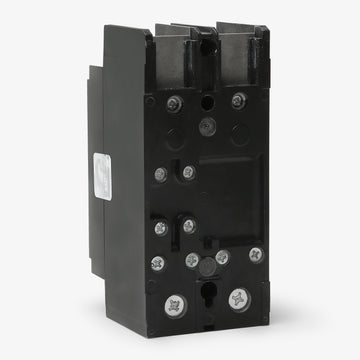

Square D QBL22175 Molded Case Circuit Breaker
- 175A
- 2 Pole
- Unit Mount
Square D
QBL22175
Molded Case Circuit Breaker
Brand
Square D
SKU
QBL22175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBL22175 - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QBL22175 - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBL22175 |
| Series | QBL |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Q2 Enclosures, Switchboards, Control Panels, Meter Mains |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
Quantity
Square D QBL22175 - 175A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBL22175-R |
| Series | QBL |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Q2 Enclosures, Switchboards, Control Panels, Meter Mains |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
Similar Items
150A 2 Pole Molded Case Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
Description
Built for demanding power systems, the Square D QBL22175 is a 175A, two-pole PowerPact Q-Frame circuit breaker. It delivers reliable long-time and instantaneous (LI) thermal-magnetic protection for commercial and industrial facilities. Designed for unit mounting, this MCCB integrates seamlessly into Square D Q2 enclosures, meter mains, and control panels. It is also an exact substitute for discontinued Q22175 models. This 10kAIC rated breaker includes Visi-Trip technology and standard lugs.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBL22175 |
| Series | QBL |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Q2 Enclosures, Switchboards, Control Panels, Meter Mains |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
Product FAQs
7 answersWhat enclosures are compatible with the QBL22175 circuit breaker?
The QBL22175 is designed for use in Square D Q2 enclosures, as well as compatible switchboards, control panels, and meter mains.
What is the wire size and torque specification for the QBL22175 lugs?
The box-type lugs accept 4 AWG to 300 kcmil aluminum or copper wire. The tightening torque is 248 lb-in (28 N.m).
Are the lugs on the QBL22175 removable or replaceable?
No, PowerPacT Q-frame circuit breakers feature factory-installed, non-replaceable box-type lugs.
What is the difference between the QBL, QDL, QGL, and QJL circuit breakers?
These are all PowerPacT Q-frame breakers that share the same physical dimensions but have different interrupting ratings at 240V. The QBL is rated at 10kA, QDL at 25kA, QGL at 65kA, and QJL at 100kA.
Is the QBL22175 a direct replacement for older Q2 series breakers?
Yes, the PowerPacT Q-frame circuit breaker is a direct replacement for legacy Square D Q2 Series devices.
How does a unit mount breaker like the QBL22175 differ from an I-Line breaker?
A unit mount breaker features lugs on both the line and load ends for cabled applications and mounts individually on a plate. An I-Line breaker plugs directly onto a bus on the line side and is used exclusively in I-Line panelboards and switchboards.
Can the QBL22175 be used on a 120/240V single-phase system?
Yes, this 2-pole breaker is rated for 240VAC and is suitable for standard 120/240V single-phase applications.
