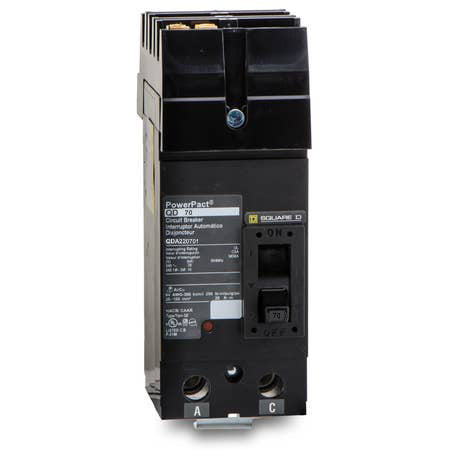

Square D QDA220701 Molded Case Circuit Breaker
- 70A
- 2 Pole
- I-Line
Square D
QDA220701
Molded Case Circuit Breaker
Brand
Square D
SKU
QDA220701
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QDA220701 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QDA220701 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QDA220701 |
| Series | QDA |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | AB Phase Connection |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Sold out
Quantity
Square D QDA220701 - 70A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QDA220701 |
| Series | QDA |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | AB Phase Connection |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Similar Items
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial power distribution, the Square D QDA220701 is a 70A, two-pole molded case circuit breaker. It is part of the PowerPact Q-frame series, offering dependable thermal-magnetic protection. This breaker features an I-Line mounting style with an AB phase connection, allowing it to install into Square D I-Line panelboards. It is also an exact substitute for the legacy Q220701 breaker.Specifications
| Brand | Square D |
|---|---|
| Part Number | QDA220701 |
| Series | QDA |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | AB Phase Connection |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Product FAQs
6 answersWhat panelboards accept the QDA220701 circuit breaker?
This breaker is designed specifically for Square D I-Line panelboards and switchboards. It features an I-Line plug-on connection for the line side and standard lugs for the load side.
What does the trailing 1 in the QDA220701 part number signify?
The 1 at the end of the catalog number indicates an AB phase connection for mounting onto the I-Line bus.
Is the QDA220701 suitable for HVAC applications?
Yes, this PowerPacT Q-frame breaker is HACR rated, making it suitable for heating, air conditioning, and refrigeration equipment.
What are the fixed magnetic trip thresholds for this breaker?
The thermal-magnetic trip unit has a magnetic hold current of 1000A and a magnetic tripping current of 1800A.
What is the required torque for the load lugs on the QDA220701?
The load side lugs require a tightening torque of 248 lb-in (28 N.m) when using 4 AWG to 300 kcmil copper or aluminum wire.
Is this a standard or 100% rated circuit breaker?
The QDA220701 is a standard 80% rated breaker. Continuous loads should not exceed 80% of its 70A nominal rating.
