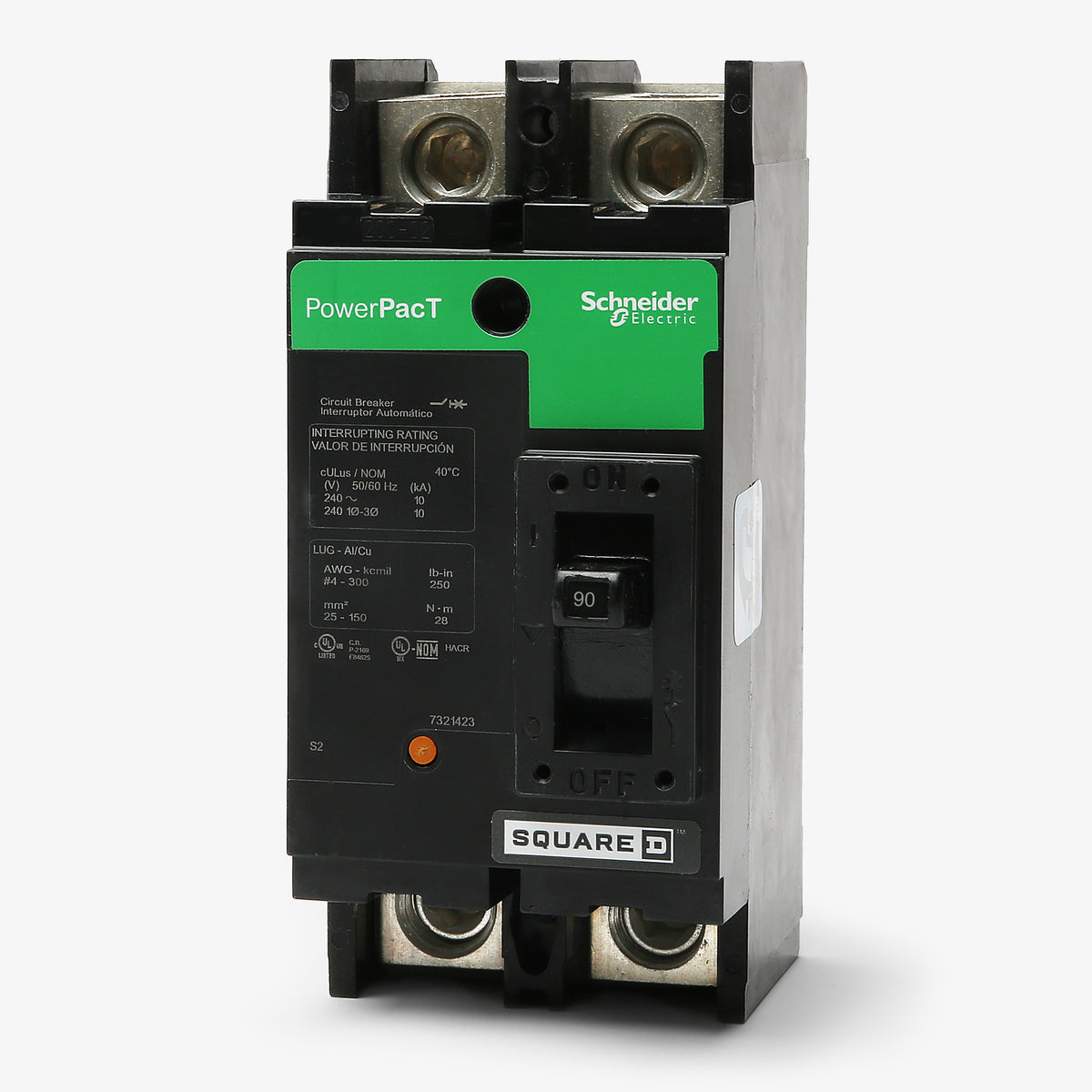

Square D QDL22090 Molded Case Circuit Breaker
- 90A
- 2 Pole
- Unit Mount
Square D
QDL22090
Molded Case Circuit Breaker
Brand
Square D
SKU
QDL22090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QDL22090 - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 2 Pole Molded Case Circuit Breaker
110A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial use, the Square D QDL22090 is a 2-pole, 90A MCCB from the PowerPacT Q-Frame family. It provides thermal-magnetic protection with LI trip functions. This unit mount breaker features line and load lugs. It installs into Square D enclosures, panelboards, and switchboards, replacing legacy Q22090 breakers. Rated at 25kAIC at 240VAC, this HACR-rated breaker ensures robust overcurrent defense. The QDL prefix denotes its standard 25kAIC rating and unit mount configuration.Specifications

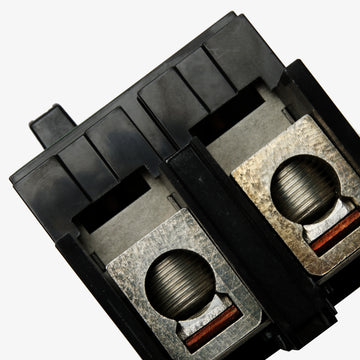

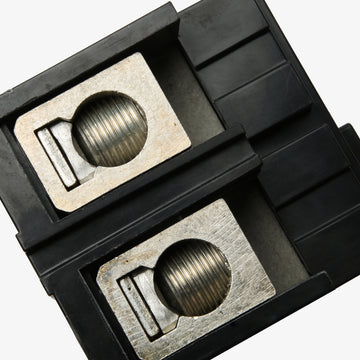

| Brand | Square D |
|---|---|
| Part Number | QDL22090 |
| Series | QDL |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Individual Enclosures, Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Push-To-Trip, RoHS Compliant, Mercury Free, PVC Free |
Product FAQs
6 answersWhat panelboards and enclosures are compatible with the QDL22090 circuit breaker?
This Q-frame breaker is designed for use in Square D NQ panelboards, switchboards, and individual enclosures. It also serves as a direct replacement for legacy Q2L2090 breakers.
What is the difference between the QDL22090 and the QGL22090 or QJL22090?
The difference lies in the interrupting rating. The QDL22090 is rated for 25kAIC at 240V, while the QGL22090 is rated for 65kAIC, and the QJL22090 is rated for 100kAIC. All three share the same physical Q-frame footprint and mounting dimensions.
Is the Square D QDL22090 HACR rated?
Yes, this thermal-magnetic circuit breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
What is the recommended lug tightening torque for the QDL22090?
The line and load lugs should be torqued to 247.8 lbf.in (28 N.m) when using the accepted 4 AWG to 300 kcmil aluminum or copper wire.
Can the QDL22090 be reverse fed?
Yes, as a standard thermal-magnetic breaker, it can be reverse fed for supply-side applications. If used as a back-fed main breaker in a panelboard, a mechanical hold-down kit is required to comply with NEC regulations.
Can I use the QDL22090 to replace an older Q2L main breaker in an NQOD panel?
While the Q-frame QDL22090 physically fits in place of a legacy Q2L breaker, Schneider Electric notes that the UL listing on older NQODQ2 panels was strictly for Q2 frame breakers. Installing a Q-frame breaker in these older panels may void the UL listing.
