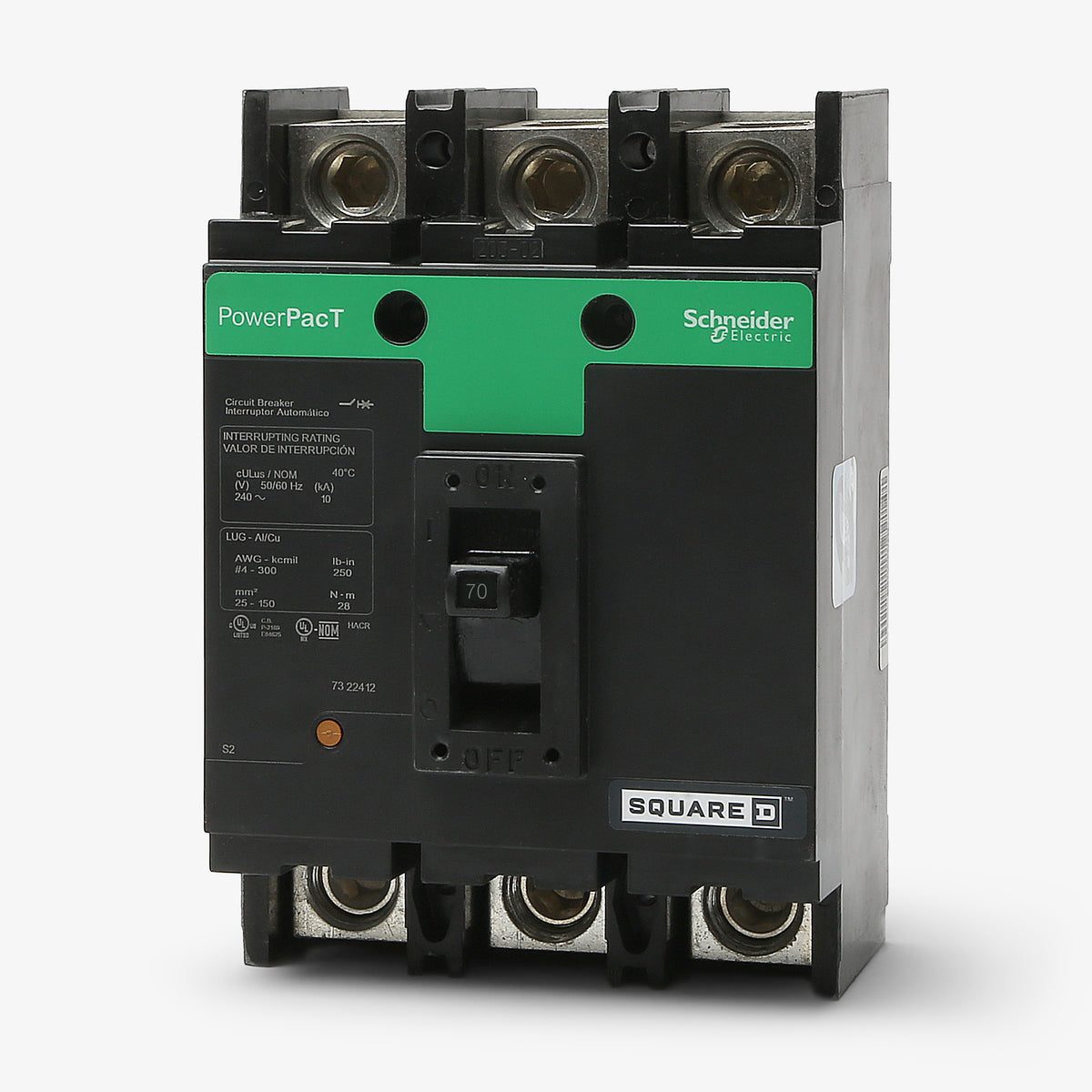

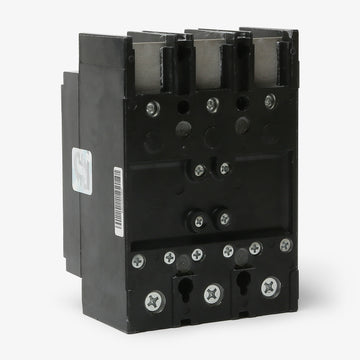

Square D QDL32070 Molded Case Circuit Breaker
- 70A
- 3 Pole
- Unit Mount
Square D
QDL32070
Molded Case Circuit Breaker
Brand
Square D
SKU
QDL32070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QDL32070 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QDL32070 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QDL32070 |
| Series | QDL |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NQ Panelboards, Square D Switchboards, Square D Individual Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Non-Interchangeable Trip, Reverse Feed, Mercury Free, PVC Free |
Quantity
Square D QDL32070 - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QDL32070 |
| Series | QDL |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NQ Panelboards, Square D Switchboards, Square D Individual Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Non-Interchangeable Trip, Reverse Feed, Mercury Free, PVC Free |
Similar Items
90A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Part of the PowerPacT Q-Frame family, this 70A MCCB is built for commercial environments. The QDL prefix denotes a 25kA interrupting capacity at 240VAC with factory lugs. The unit-mount configuration installs into Square D NQ panelboards and individual enclosures. It serves as a functional replacement for legacy Q2L3070 breakers. Thermal-magnetic technology provides precise long-time and instantaneous (LI) protection. The HACR-rated mechanism accepts 4 AWG to 300 kcmil wiring.Specifications
| Brand | Square D |
|---|---|
| Part Number | QDL32070 |
| Series | QDL |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NQ Panelboards, Square D Switchboards, Square D Individual Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Non-Interchangeable Trip, Reverse Feed, Mercury Free, PVC Free |
Product FAQs
6 answersWhich panelboards are compatible with the QDL32070 circuit breaker?
This unit-mount breaker is designed for use in Square D NQ panelboards, switchboards, and individual enclosures. It features a feed-thru connection and is not compatible with I-Line panelboards.
What wire sizes and torque specifications are required for the QDL32070 lugs?

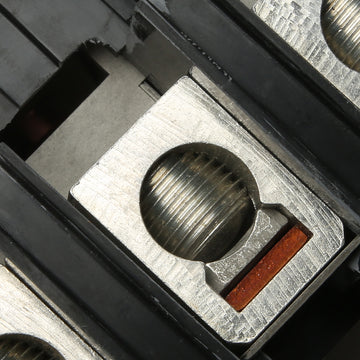

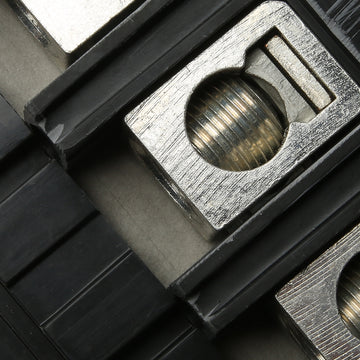

The factory-installed lugs accept 4 AWG to 300 kcmil aluminum or copper wire. The required tightening torque for these connections is 248 lb-in (28 N.m).
What is the difference between Square D QDL, QGL, and QJL circuit breakers?
The difference is the interrupting rating (AIC). The QDL32070 has a 25kAIC rating at 240V. The QGL series offers 65kAIC, and the QJL series provides 100kAIC for applications requiring higher fault current protection.
What does the LI trip function mean on this PowerPacT Q-Frame breaker?
The LI designation indicates that the thermal-magnetic trip unit provides Long-Time (L) overload protection and Instantaneous (I) short-circuit protection. Both the thermal and magnetic trip settings are fixed on this model.
Does the QDL32070 provide ground fault or arc fault protection?
No. This is a standard thermal-magnetic circuit breaker designed for overcurrent and short-circuit protection. It does not include integrated ground fault (GFCI) or arc fault (AFCI) capabilities.
Can the QDL32070 be used on a 480V electrical system?
No. This Q-Frame circuit breaker has a maximum voltage rating of 240VAC and cannot be safely installed on 480V or 600V systems.
