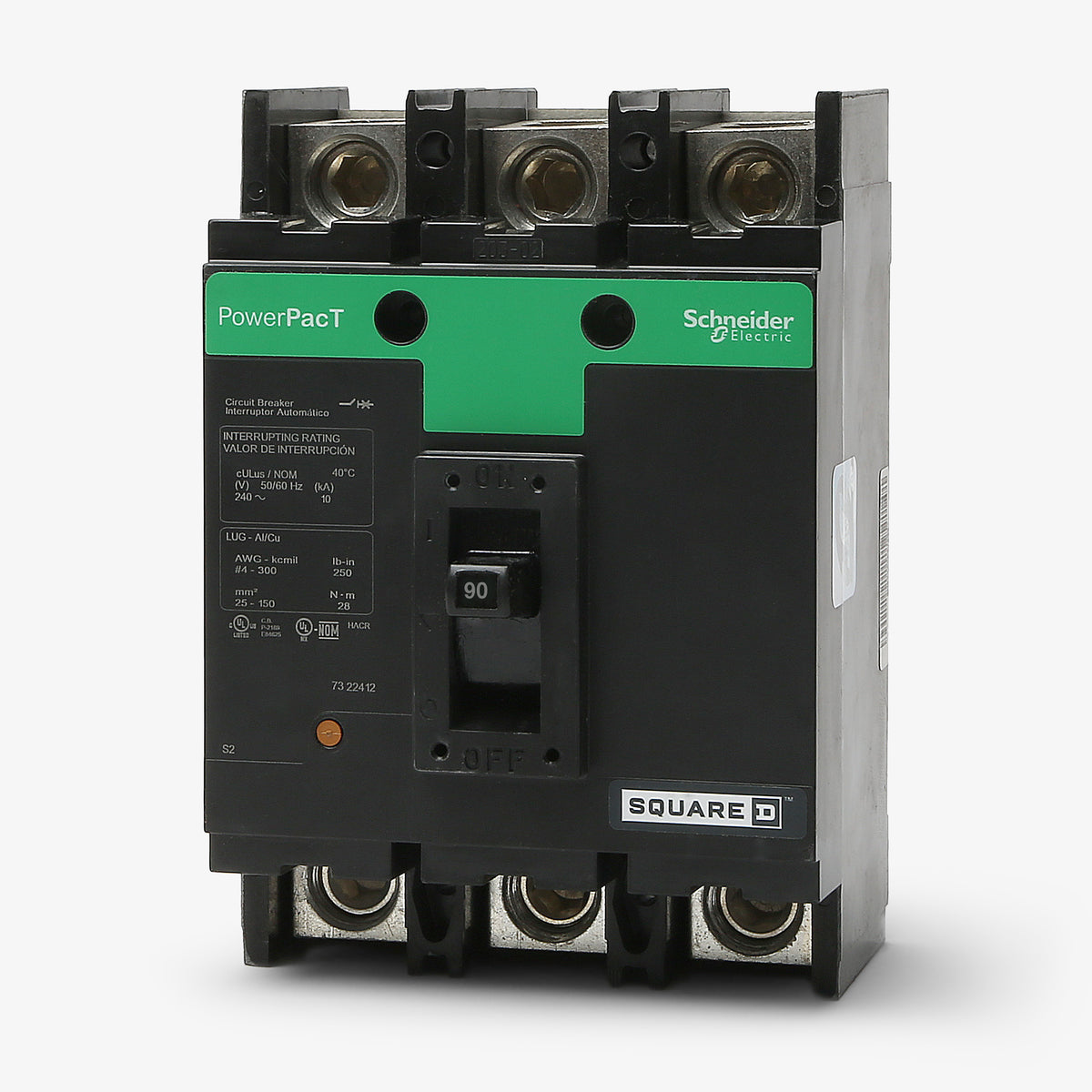

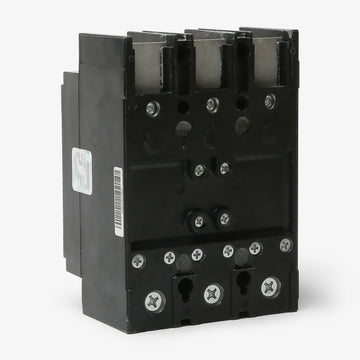

Square D QDL32090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Unit Mount
Square D
QDL32090
Molded Case Circuit Breaker
Brand
Square D
SKU
QDL32090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QDL32090 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial loads, this 90A PowerPacT Q-Frame breaker delivers a 25kA interrupting rating at 240VAC. The QDL prefix identifies it as a lug-connected, unit-mount solution. Compatibility spans across Square D NQ panelboards, switchboards, and enclosures. It serves as a cross-reference for discontinued Q23090 breakers in existing setups. The non-interchangeable trip unit provides dependable LI protection. It features a push-to-trip mechanism for easy manual testing.Specifications
| Brand | Square D |
|---|---|
| Part Number | QDL32090 |
| Series | QDL |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Individual Enclosures, Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Mercury Free, PVC Free, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, 80% Rated, RoHS Compliant, Push-To-Trip |
Product FAQs
7 answersWhat older circuit breakers does the QDL32090 replace?
The PowerPacT Q-frame QDL32090 is a direct replacement for legacy Square D Q2 Series circuit breakers.
Can I install the QDL32090 in an I-Line panelboard?
No. The QDL32090 is a unit mount, feed-thru circuit breaker with lugs on both the line and load sides. It is designed for individual enclosures, switchboards, and specific panelboards, but it will not mount to an I-Line bus.
Can the QDL32090 be reverse fed?
Yes. PowerPacT Q-frame circuit breakers like the QDL32090 do not have restrictive line and load markings, meaning they can be safely reverse fed or back-fed in your electrical system.
What is the recommended lug torque for the QDL32090?

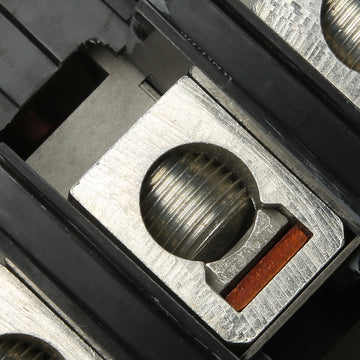

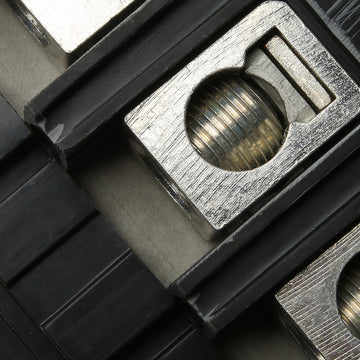

The line and load lugs require a tightening torque of 248 lb-in (28 N.m) for 4 AWG to 300 kcmil aluminum or copper wire. Always verify the exact torque requirements printed on the breaker label prior to installation.
Is the QDL32090 100% rated or standard 80% rated?
The QDL32090 is a standard 80% rated circuit breaker. It is designed to carry 80% of its 90A continuous current rating under normal continuous load conditions.
What is the difference between the QBL32090, QDL32090, QGL32090, and QJL32090?
These breakers share the same physical dimensions and 90A rating but have different interrupting capacities. At 240V, the QBL is rated at 10kAIC, the QDL is rated at 25kAIC, the QGL is rated at 65kAIC, and the QJL is rated at 100kAIC.
Does this breaker include a push-to-trip button?
Yes. All PowerPacT Q-frame circuit breakers feature an integral push-to-trip button on the cover, allowing you to manually trip the breaker to verify the mechanical operation of the trip mechanism.
