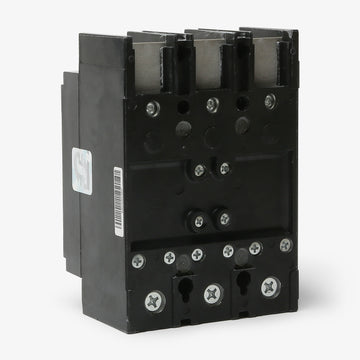

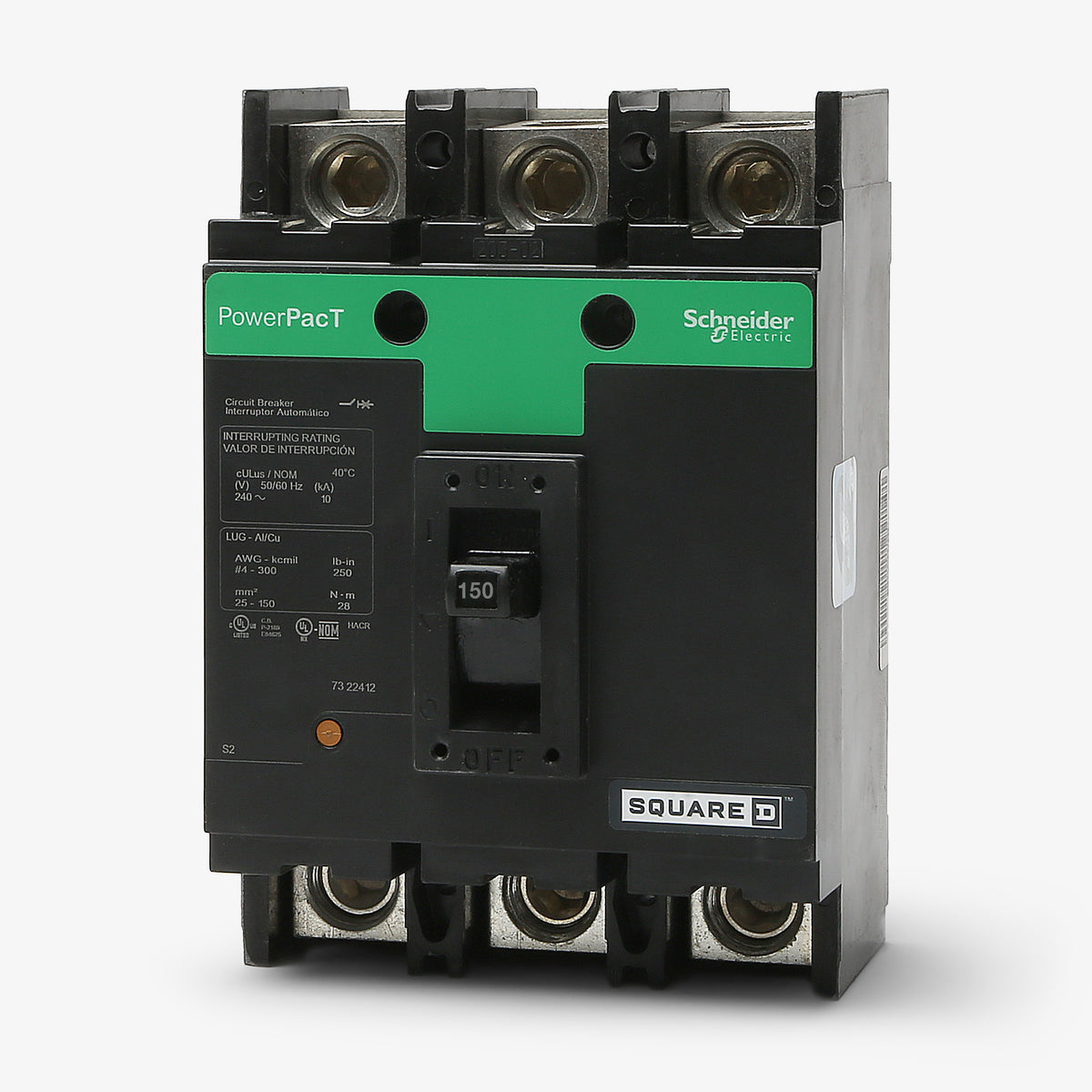

Square D QDL32150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Unit Mount
Square D
QDL32150
Molded Case Circuit Breaker
Brand
Square D
SKU
QDL32150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QDL32150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QDL32150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QDL32150 |
| Series | QDL |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NQ Panelboards, Square D Switchboards, Square D Individual Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Non-Interchangeable Trip, Push-To-Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Mercury Free, PVC Free, Halogen Free, Visual Trip Indicator |
Quantity
Square D QDL32150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QDL32150-R |
| Series | QDL |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NQ Panelboards, Square D Switchboards, Square D Individual Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Non-Interchangeable Trip, Push-To-Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Mercury Free, PVC Free, Halogen Free, Visual Trip Indicator |
Similar Items
125A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Operating within the PowerPacT Q-Frame family, the Square D QDL32150 delivers 150A of molded case circuit protection. It provides essential long-time and instantaneous overcurrent protection for 240VAC commercial electrical systems. This unit mount MCCB is engineered to fit into Square D NQ panelboards and individual enclosures. It serves as a seamless replacement for the discontinued Q2L3150.Specifications
| Brand | Square D |
|---|---|
| Part Number | QDL32150 |
| Series | QDL |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NQ Panelboards, Square D Switchboards, Square D Individual Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Non-Interchangeable Trip, Push-To-Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Mercury Free, PVC Free, Halogen Free, Visual Trip Indicator |
Product FAQs
6 answersWhat is the difference between QBL, QDL, QGL, and QJL circuit breakers?
These prefixes identify the short-circuit interrupting rating of the PowerPacT Q-Frame breakers at 240VAC. The QBL is rated 10kAIC, QDL is 25kAIC, QGL is 65kAIC, and QJL is 100kAIC.
Is the QDL32150 a direct replacement for the legacy Q2L3150?
Yes, the PowerPacT QDL32150 is a direct, seamless replacement for the discontinued Square D Q2L3150 circuit breaker.
Are the line and load lugs included with this unit?

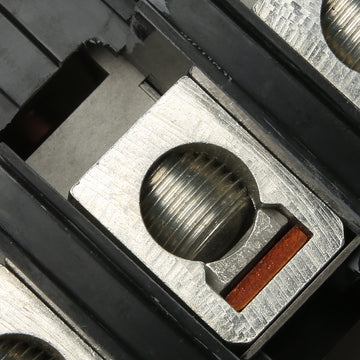

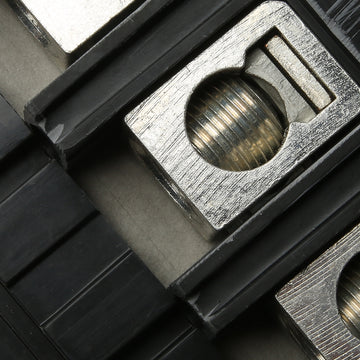

Yes, this feed-thru circuit breaker comes equipped with factory-installed lugs on both the line and load ends, accepting 4 AWG to 300 kcmil copper or aluminum wire.
How does a unit mount breaker install in a panel?
Unit mount breakers are fastened directly to the panel backpan using mounting screws and are wired via cable connections to the lugs, unlike plug-on or I-Line bus-mounted breakers.
Can the QDL32150 be installed in a Square D NQ panelboard?
Yes, Q-Frame breakers can be installed in NQ panelboards where they are commonly utilized as main or sub-feed circuit breakers.
Is this breaker suitable for use on a 208Y/120V system?
Yes, the QDL32150 is fully rated for 208Y/120VAC systems and provides the same 25kAIC interrupting capacity as it does at 240VAC.
