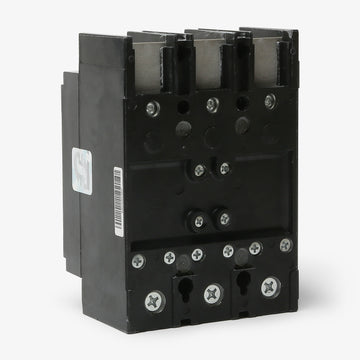

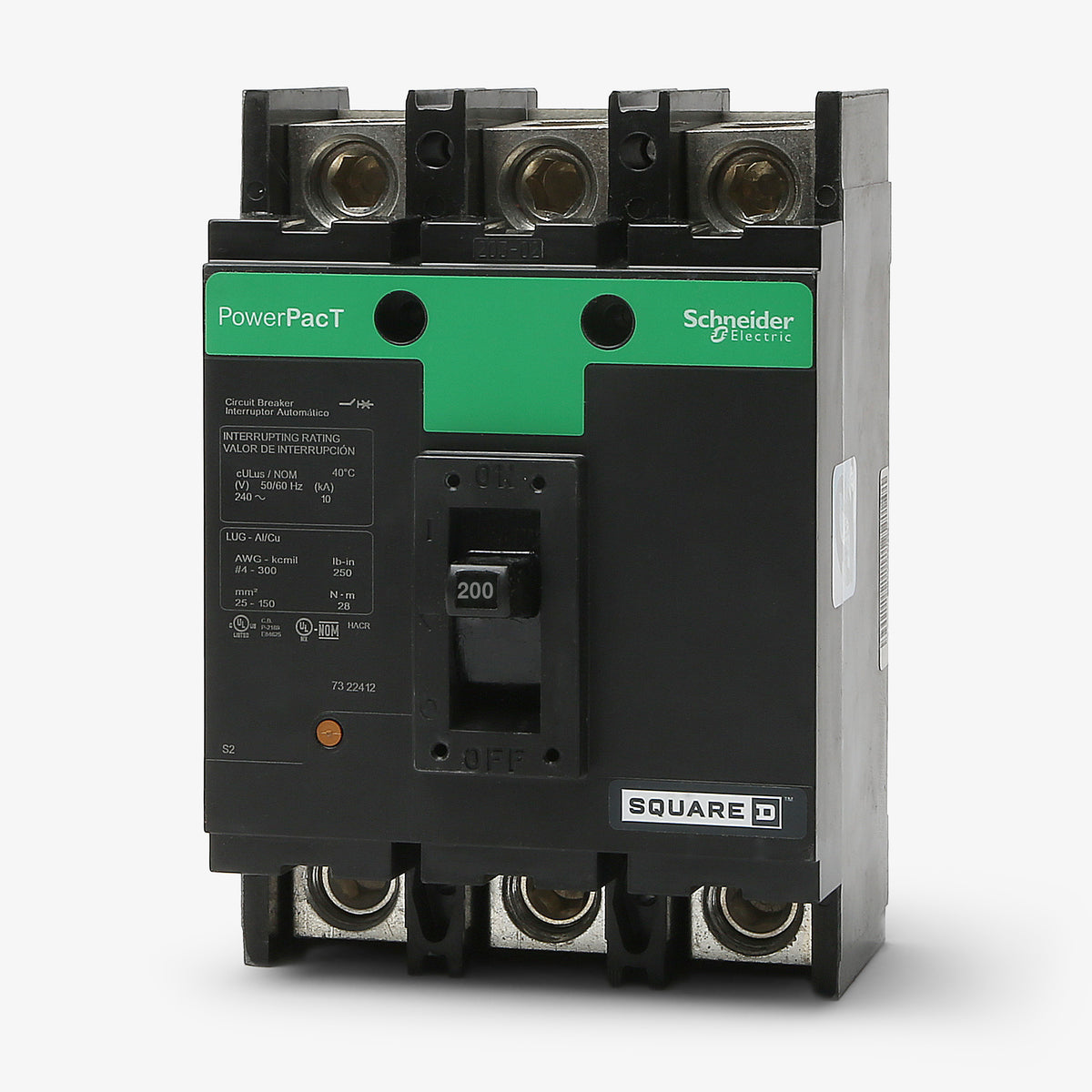

Square D QDL32200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
Square D
QDL32200
Molded Case Circuit Breaker
Brand
Square D
SKU
QDL32200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QDL32200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QDL32200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QDL32200 |
| Series | QDL |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Individual Enclosures, Metering Devices, Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Mercury Free, PVC Free, 80% Rated |
Quantity
Square D QDL32200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QDL32200-R |
| Series | QDL |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Individual Enclosures, Metering Devices, Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Mercury Free, PVC Free, 80% Rated |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Square D QDL32200 provides robust overcurrent protection within the PowerPacT Q-Frame family. It features a fixed thermal-magnetic trip unit with long-time and instantaneous (LI) functions. Designed as a unit-mount breaker, it installs into Square D enclosures, switchboards, and metering devices. It serves as a drop-in replacement for legacy Q232200 models. Rated for 25 kAIC at 240VAC, this 3-pole breaker includes line and load lugs.Specifications
| Brand | Square D |
|---|---|
| Part Number | QDL32200 |
| Series | QDL |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Individual Enclosures, Metering Devices, Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Mercury Free, PVC Free, 80% Rated |
Product FAQs
8 answersIs the QDL32200 compatible with I-Line panelboards?
No. The QDL32200 is a unit-mount circuit breaker with lug connections on both the line and load sides. For an I-Line panelboard, you will need a plug-on I-Line style breaker, such as the QDA32200.
What type of enclosures accept the QDL32200 breaker?
This unit-mount Q-frame breaker is designed for use in Square D individual enclosures (such as the legacy Q2 series enclosures), as well as compatible unit-mount metering devices, switchboards, and specific panelboards.
What does the D in QDL32200 signify in the Square D catalog number?
The D indicates the interrupting capacity of the breaker. For PowerPacT Q-frame breakers, the D-rating provides a 25kA short-circuit current rating (SCCR) at 240VAC.
Can the QDL32200 be used on a 480V system?
No. This breaker is rated for a maximum of 240VAC and is not suitable for 480V or 600V applications.
How do you mount the QDL32200 circuit breaker?
The QDL32200 is a unit-mount breaker that installs via mounting screws. Wiring is connected using the factory-installed mechanical lugs on both the line and load ends, making it a feed-thru connection type.

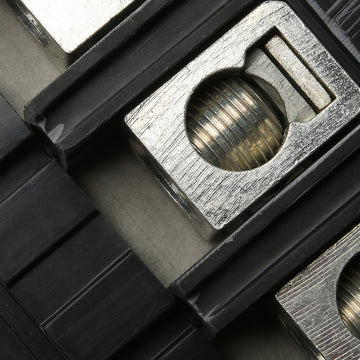

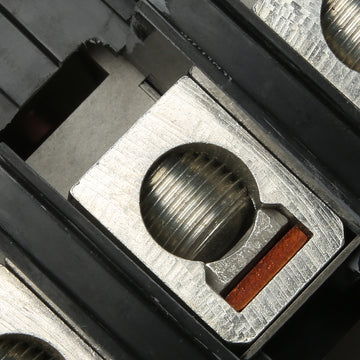

What is the tightening torque for the lugs on the QDL32200?
The line and load lugs should be torqued to 248 lbf-in (28 N-m) when using standard 4 AWG to 300 kcmil aluminum or copper wire.
Can I use the QDL32200 to replace an older Q2L32200 circuit breaker?
Yes. The PowerPacT Q-frame circuit breakers, including the QDL32200, are direct dimensional replacements for legacy Square D Q2 Series breakers.
What is the difference between the QDL32200 and the QGL32200?
Both are 200A, 3-pole, 240V Q-frame unit-mount breakers. The difference lies in their interrupting rating. The QDL32200 is rated at 25kAIC, while the QGL32200 features a higher rating of 65kAIC at 240V.
