Square D QO115CP Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Square D
QO115CP
Miniature Circuit Breaker
Brand
Square D
SKU
QO115CP
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

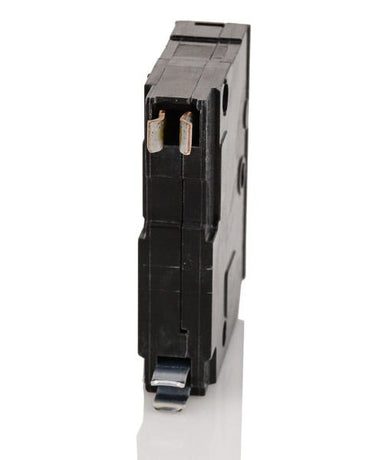

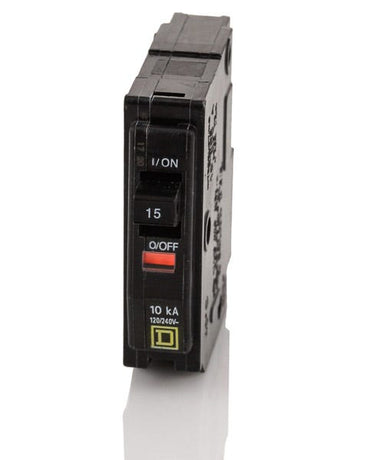

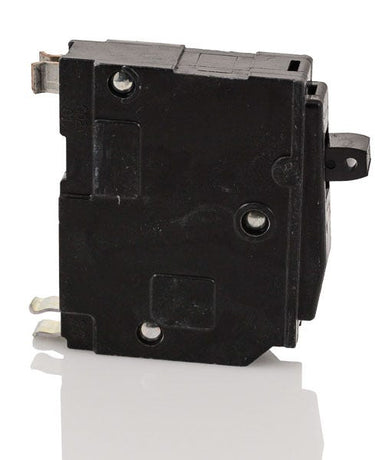

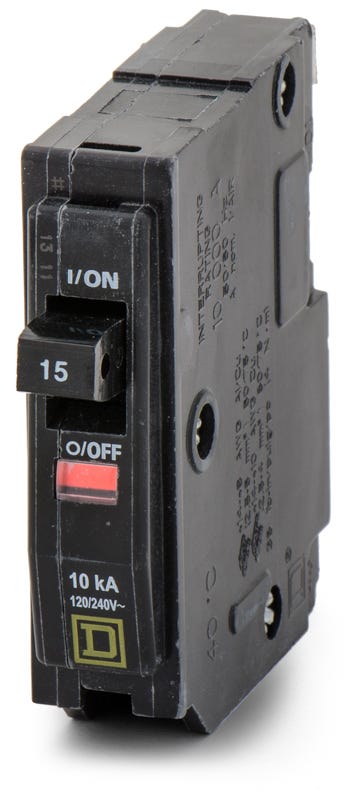

Square D QO115CP - 15A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
15A 1 Pole Miniature Circuit Breaker
15A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
Description
Packaged in consumer-friendly retail blister packs, this 15-amp single-pole unit provides essential overcurrent protection for residential and commercial branch circuits. It carries both HACR and Switching Duty ratings, making it suitable for air conditioning equipment and fluorescent lighting control. The component installs into standard Square D QO load centers, NQ panelboards, and legacy NQOD enclosures. Signature Visi-Trip technology features a highly visible red indicator flag.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO115 |
| Series | QO |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR, SWD, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, SWD Rated, Mercury Free, RoHS Compliant |
Product FAQs
7 answersWhich electrical panels are approved for use with this breaker?
This plug-on breaker is UL listed for installation in Square D QO load centers, as well as NQ and legacy NQOD panelboards.
Will the QO115CP fit into a Square D Homeline load center?
No. QO series breakers have a 3/4-inch width per pole and a specific mounting clip. They are not interchangeable with Homeline breakers, which require a 1-inch width per pole.
What does the CP suffix indicate on the QO115CP catalog number?
The CP stands for Consumer Packaging or Commercial Packaging. The breaker itself is a standard QO115 miniature circuit breaker, but it is shipped in a retail blister pack rather than bulk contractor packaging.
What type of wire connections does the QO115CP support?
The breaker features pressure plate terminals designed to accept 14 AWG to 8 AWG copper or aluminum conductors. Ensure proper torque is applied during installation as specified on the breaker label.
How does the Visi-Trip indicator function on this breaker?
When the breaker trips due to an overcurrent or short circuit, the handle snaps to a midpoint position and a bright red indicator flag appears. This allows for rapid identification of the tripped circuit inside a crowded panel.
Can the QO115CP be used in direct current applications?
Yes. While primarily used for 120/240VAC systems with a 10kAIC rating, this breaker is also rated for 48VDC systems with a 5kAIC interrupting capacity.
Is this 15-amp breaker suitable for HVAC equipment and lighting control?
Yes. The QO115CP is HACR rated for use with heating, air conditioning, and refrigeration equipment. It is also Switching Duty (SWD) rated, making it suitable for regular switching of 120V fluorescent lighting loads.
