Square D QO115VH Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Square D
QO115VH
Miniature Circuit Breaker
Brand
Square D
SKU
QO115VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

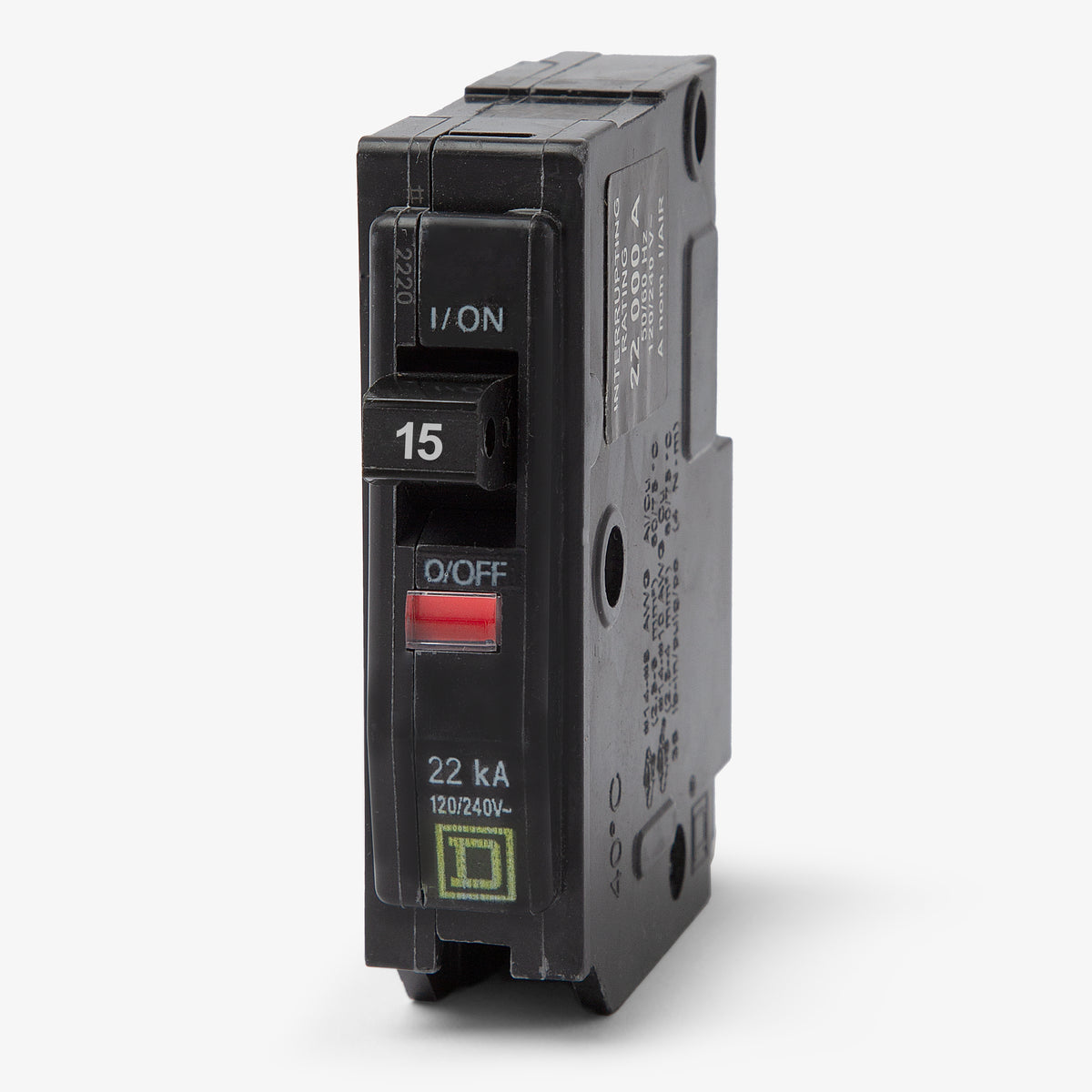

Square D QO115VH - 15A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
30A 1 Pole Miniature Circuit Breaker
15A 2 Pole Miniature Circuit Breaker
15A 3 Pole Miniature Circuit Breaker
Description
Built to handle higher fault currents, this 15A miniature breaker provides an upgraded 22kAIC interrupt rating for demanding electrical environments. It serves as a robust solution for commercial facilities or residential services located near high-capacity utility transformers. This unit installs seamlessly into standard QO load centers, NQ panelboards, and Speed-D switchboards.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO115VH |
| Series | QO |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards, Speed-D Switchboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, High Interrupting Capacity, Visual Trip Indicator |
Product FAQs
6 answersWhat panels are compatible with the QO115VH circuit breaker?
This plug-on breaker is designed exclusively for use in Square D QO Load Centers, NQ Panelboards, and Speed-D Switchboards. It is not compatible with Homeline or other manufacturer panels.
What does the VH designation mean in the QO115VH catalog number?
The VH suffix indicates a high interrupting rating of 22kAIC at 120/240VAC. Standard QO breakers, such as the QO115, typically feature a 10kAIC rating. The VH version is required in electrical systems with higher available fault currents.
Can the QO115VH be used to replace a standard QO115?
Yes. The QO115VH shares the exact physical dimensions and plug-on mounting style as the standard QO115. It serves as a direct replacement while providing an upgraded 22kAIC interrupting capacity.

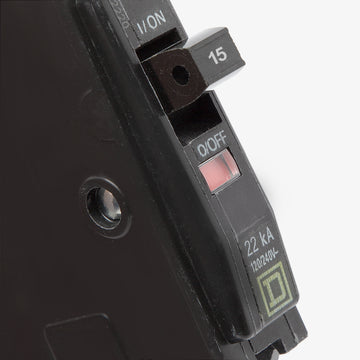

Does the QO115VH feature a tripped circuit indicator?
Yes, it includes the Square D Visi-Trip indicator. When the breaker trips, the handle snaps to a center position and a highly visible red indicator appears in the window, allowing for rapid identification of the faulted circuit.
What are the wire size and torque specifications for the QO115VH terminals?
The pressure plate terminals accept 14 AWG to 8 AWG aluminum or copper conductors. The recommended tightening torque for these connections is 40.7 lbf-in (4.6 N-m).
Is the QO115VH rated for switching fluorescent lighting loads?
Yes, 15A and 20A 1-pole QO breakers are SWD (Switching Duty) rated, making them suitable for switching 120VAC fluorescent lighting loads on a regular basis.
