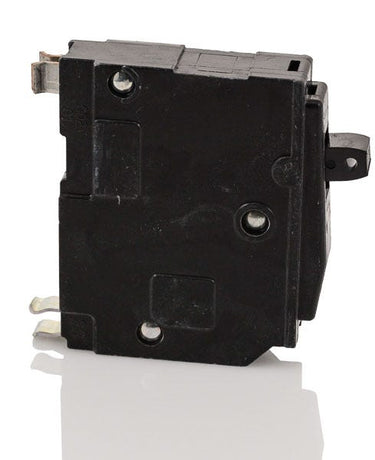

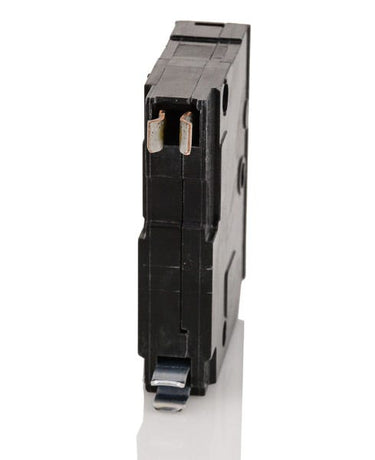

Square D QO120CP Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Square D
QO120CP
Miniature Circuit Breaker
Brand
Square D
SKU
QO120CP
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO120CP - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
20A 1 Pole Miniature Circuit Breaker
QO1201021 - 20A 1 Pole Miniature Circuit Breaker
25A 1 Pole Miniature Circuit Breaker
Description
Ideal for residential and commercial applications, the Square D QO120CP is a 20A, single-pole miniature circuit breaker. It delivers standard thermal-magnetic protection for 120/240VAC and 48VDC systems. This plug-on breaker mounts securely into Square D QO load centers and NQ panelboards. It serves as a direct substitute for the standard QO120, arriving in consumer packaging. The unit is SWD rated for switching 120V fluorescent lighting loads. It includes the signature Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO120 |
| Series | QO |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Auxiliary Switch, Shunt Trip |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR, SWD, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Visual Trip Indicator |
Product FAQs
7 answersWhat is the difference between a QO120 and a QO120CP breaker?
The CP suffix simply designates Consumer Packaging. The device inside the retail blister pack is a standard QO120 single pole 20A breaker. They are electrically and physically identical.
Can this plug-on breaker be used in an NQ series commercial panelboard?
Yes. Current Schneider Electric NQ and legacy NQOD panelboard interiors are engineered to accept both plug-on QO branch breakers and bolt-on QOB branch breakers.
Are QO series breakers compatible with Square D Homeline load centers?
No. QO breakers feature a 3/4-inch per pole width and a unique plug-on mounting clip. They will not fit into Homeline panels, which require 1-inch wide Homeline format breakers.

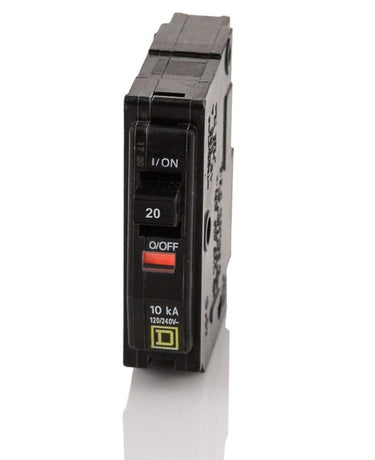

How does the Visi-Trip indicator work on this breaker?
If the breaker trips due to an overload or short circuit, the handle snaps to a center position and a bright red flag appears in the indicator window. This feature allows quick visual identification of a tripped circuit in a dark or crowded panel.
Is the QO120CP suitable for switching lighting loads on and off?
Yes. Standard 15A and 20A QO breakers carry a Switching Duty (SWD) rating, meaning they are UL approved to be used as a regular switch for 120VAC fluorescent lighting circuits.
Is this breaker approved for heating and cooling equipment?
Yes. The QO120CP is HACR rated, making it suitable for use with compatible heating, air conditioning, and refrigeration equipment provided it meets the nameplate requirements of the appliance.
Does this thermal-magnetic breaker provide GFCI or AFCI protection?
No. This model offers standard thermal-magnetic protection against overloads and short circuits only. If your installation requires ground fault or arc fault protection to meet code, you must use a designated GFCI, AFCI, or dual-function breaker.
