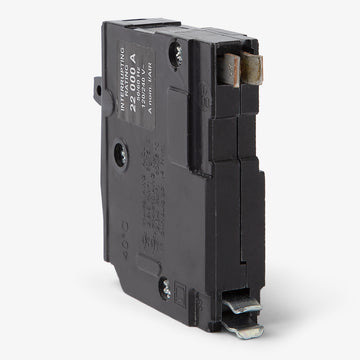

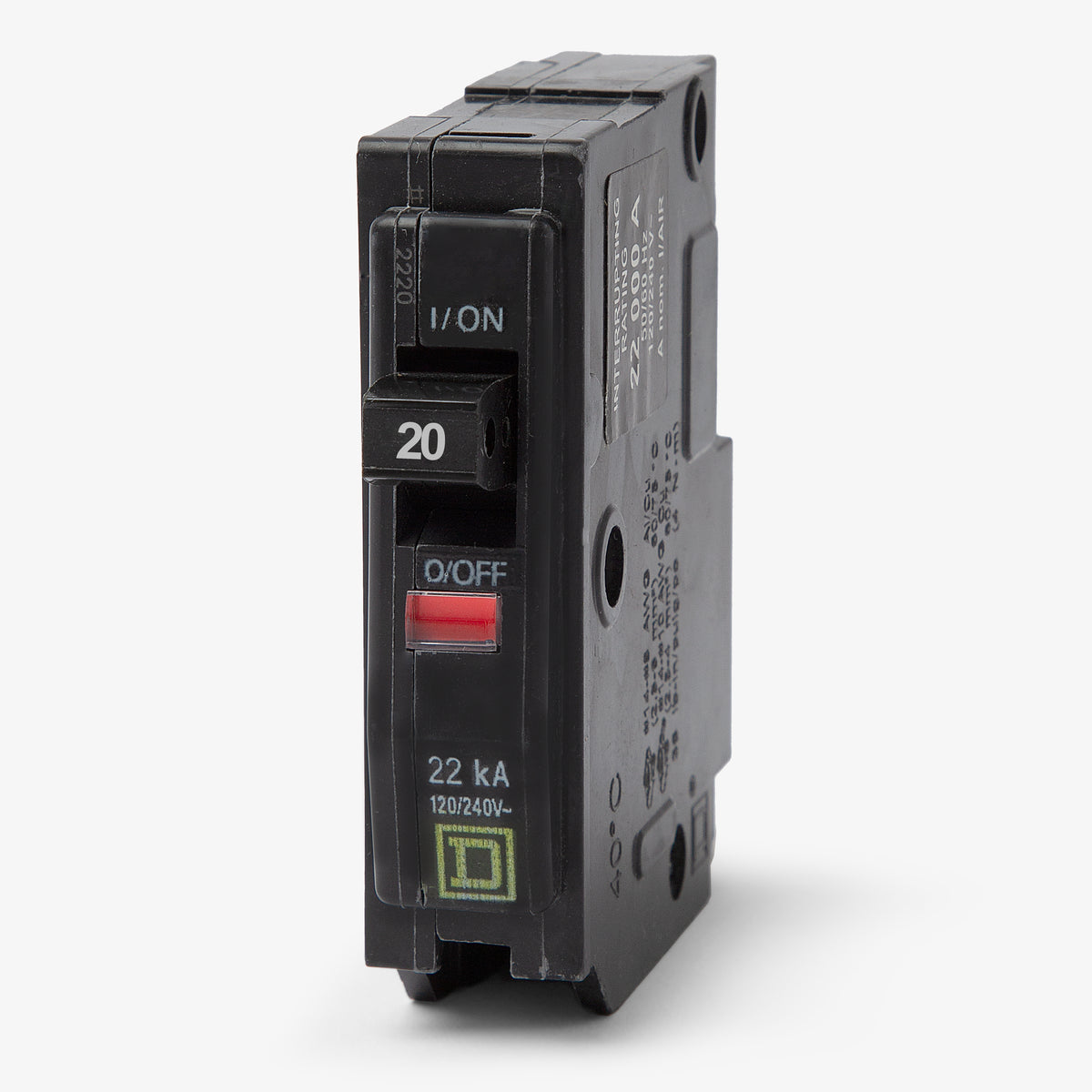

Square D QO120VH Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Square D
QO120VH
Miniature Circuit Breaker
Brand
Square D
SKU
QO120VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO120VH - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
30A 1 Pole Miniature Circuit Breaker
20A 2 Pole Miniature Circuit Breaker
20A 3 Pole Miniature Circuit Breaker
Description
Delivering enhanced fault protection, this 20-amp high-interrupting device features a 22kAIC rating for demanding residential and commercial applications. It mounts into standard QO load centers, NQ panelboards, and legacy NQOD enclosures. The unit incorporates Square D's signature Visi-Trip indicator to clearly flag tripped circuits, alongside an SWD rating that approves it for daily switching of fluorescent lighting circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO120VH |
| Series | QO |
| Amperage | 20A |
| Poles | 1 |

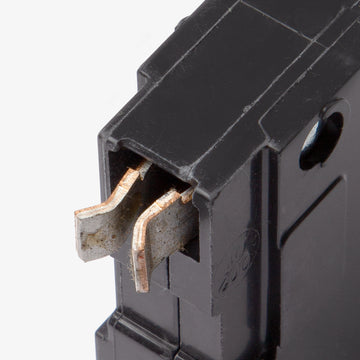

| Mounting Style | Plug-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Visi-Trip Indicator |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, High Interrupting Capacity, HACR Rated, SWD Rated, Mercury Free, RoHS Compliant |
Product FAQs
6 answersWhat is the difference between the Square D QO120 and the QO120VH?
The "VH" suffix indicates a higher interrupting rating. The QO120VH is rated for 22kAIC at 120/240VAC, while the standard QO120 is rated for 10kAIC. Both are 20A, 1-pole breakers that fit the same panels.
Can I install the QO120VH in a Square D Homeline panel?
No. QO series breakers, including the QO120VH, are not interchangeable with Homeline (HOM) breakers. This breaker is designed exclusively for QO load centers, NQ panelboards, and legacy NQOD panelboards.
What is the recommended terminal torque for the QO120VH circuit breaker?
The pressure plate terminals on the QO120VH should be torqued to 40.7 lb-in (4.6 N.m) for secure connections with 14 to 8 AWG copper or aluminum wire.
Is the QO120VH rated for switching fluorescent lighting loads?
Yes, this breaker is SWD (Switching Duty) rated, making it suitable for the daily switching of 120V fluorescent lighting circuits.
Does the QO120VH carry an HACR rating for HVAC equipment?
Yes, it is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires HACR type circuit breakers.
How can I tell if the QO120VH has tripped?

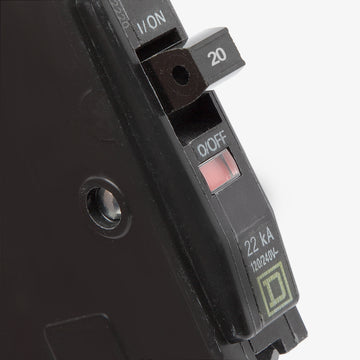

This breaker features the Square D Visi-Trip indicator. When the breaker trips due to an overload or short circuit, the handle moves to a center position and a highly visible red indicator appears in a small window.
