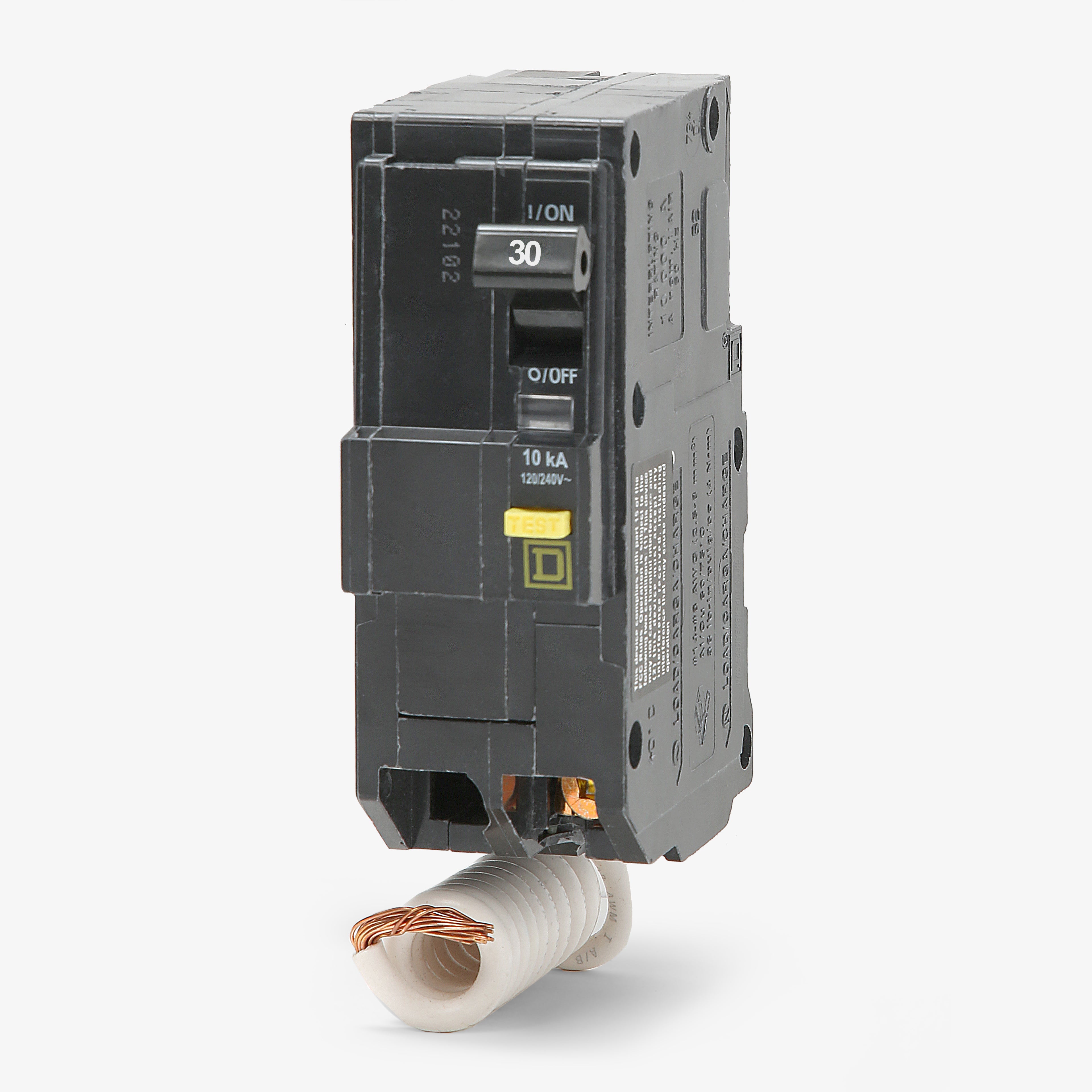

Square D QO230GFI GFCI Miniature Circuit Breaker
- 30A
- 2 Pole
- Plug-On
Square D
QO230GFI
GFCI Miniature Circuit Breaker
Brand
Square D
SKU
QO230GFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO230GFI - 30A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items

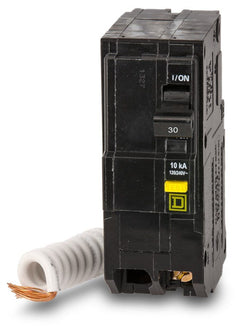

35A GFCI Miniature Circuit Breaker
25A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
Description
Built for residential and commercial applications, the Square D QO230GFI delivers reliable 30A ground-fault protection. This two-pole breaker safeguards personnel in areas where water and electricity mix. It mounts into standard QO load centers, NQ panelboards, and NQOD enclosures. The plug-on design and included pigtail neutral simplify wiring. Rated 10 kAIC at 120/240V, this GFCI breaker features a Class A 6mA sensor and the Visi-Trip indicator to quickly identify tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO230GFI |
| Series | QO |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip, Self-Test |
Product FAQs
7 answersWhich panelboards and load centers accept the QO230GFI?
This plug-on breaker installs exclusively in Square D QO load centers, NQ panelboards, and legacy NQOD panelboards. It is not compatible with Homeline or bolt-on QOB panels.
What is the bolt-on equivalent for the QO230GFI?

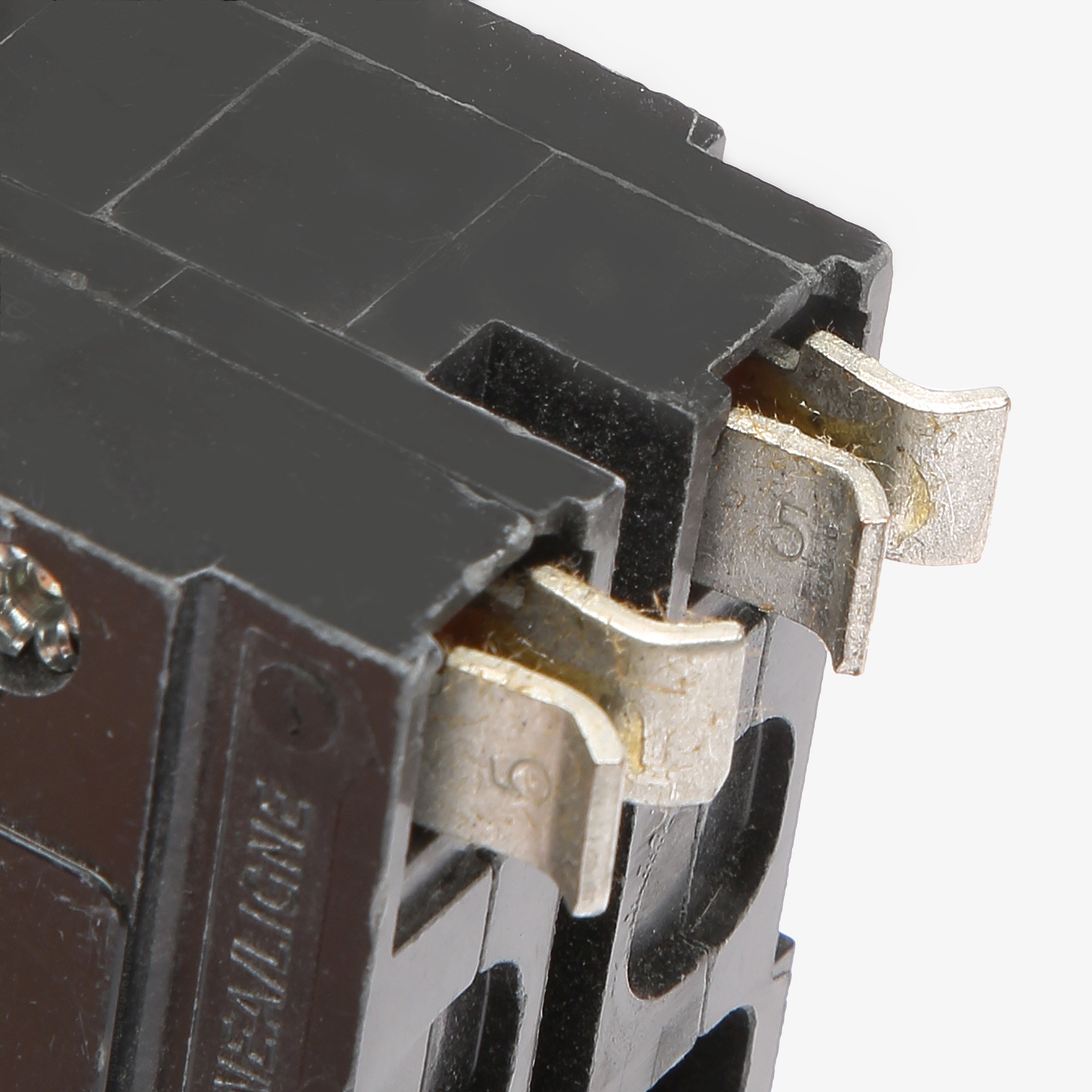

If installing in a panel that requires bolt-on connections, use the QOB230GFI. The QO230GFI features plug-on mounting and cannot be secured to a bolt-on bus bar.
What is the ground-fault trip threshold for this breaker?
The QO230GFI provides Class A ground-fault protection. It trips when detecting a ground fault of 4 to 6 mA, ensuring personnel protection against electrical shock.
Does the QO230GFI require a neutral connection to operate?

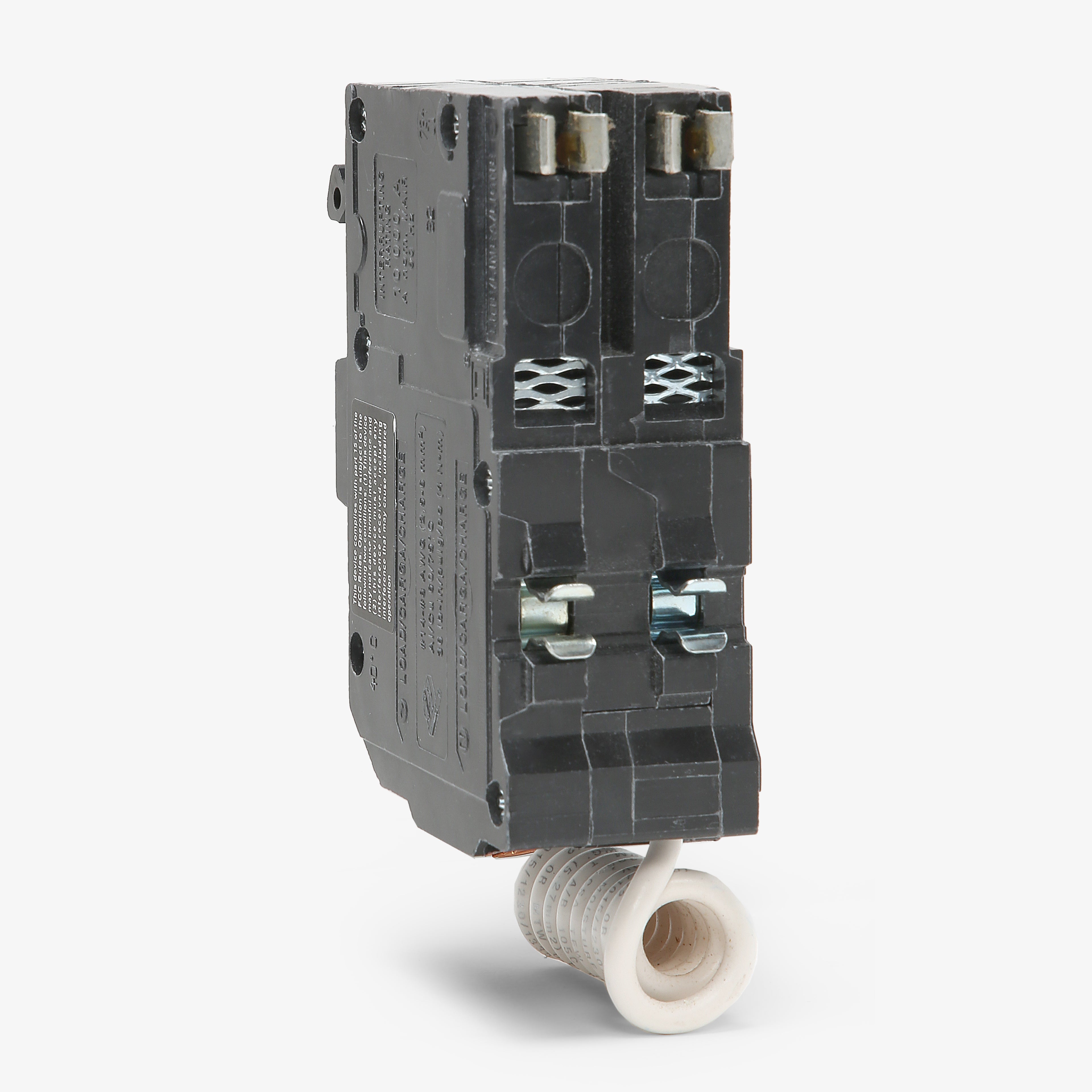

Yes, the breaker itself requires a neutral connection to power its internal GFCI circuitry. You must connect the factory-installed white pigtail wire directly to the neutral bar in your load center.
Can I use this 2-pole GFCI breaker for a straight 240V load without a neutral wire?
Yes. For straight 240V applications like well pumps or water heaters, connect the two hot wires to the breaker and leave the load neutral lug empty. The breaker's white pigtail must still be connected to the panel neutral bar.

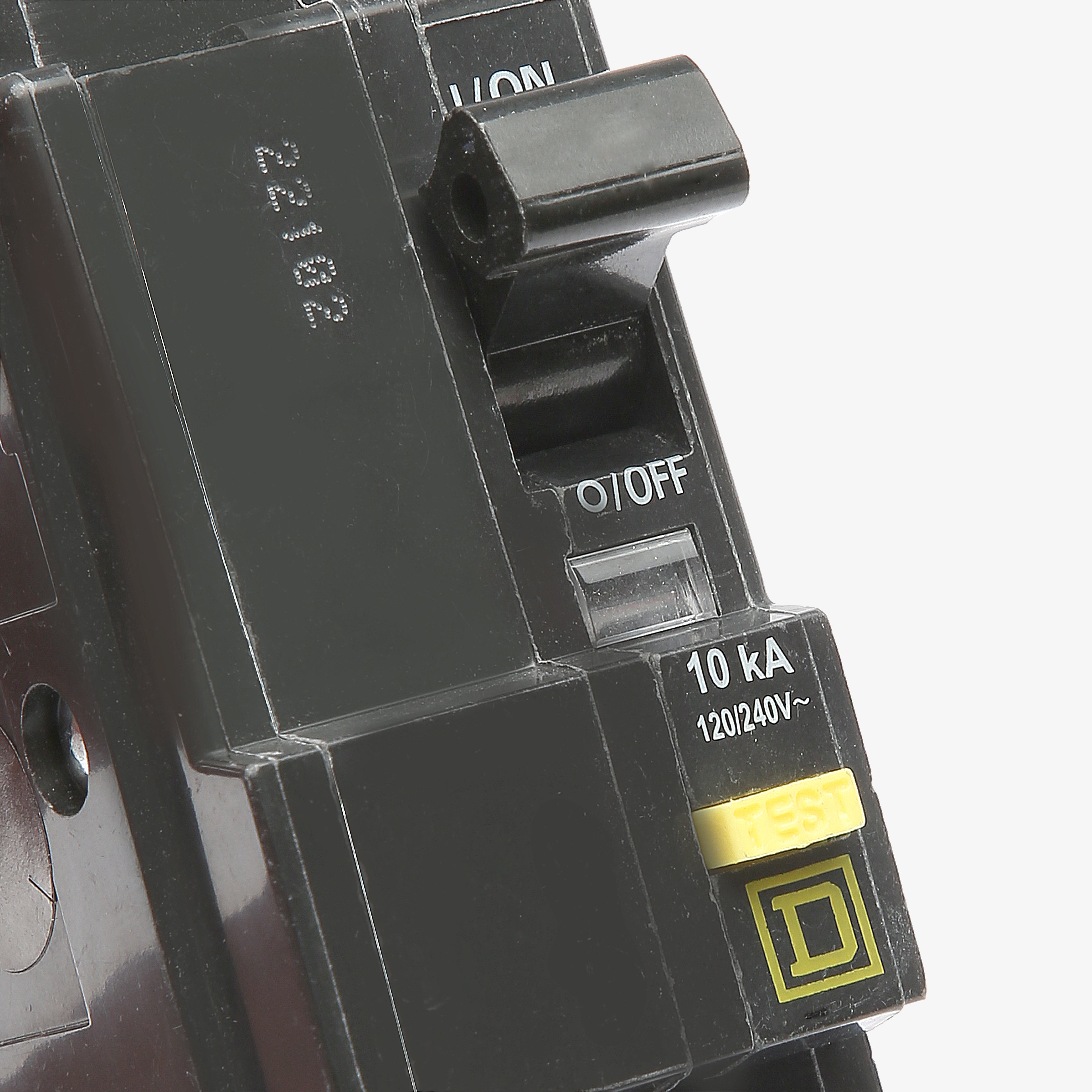

How does the Visi-Trip indicator work on this GFCI breaker?
When the breaker trips due to an overcurrent, short circuit, or ground fault, a highly visible red flag appears in the window. This allows for quick identification of the tripped circuit in a crowded panel.
Does the QO230GFI require more panel space than a standard 30A QO breaker?
No. The QO230GFI occupies two standard spaces (1.5 inches total width) in your panel, identical to a standard non-GFCI 2-pole QO breaker.
