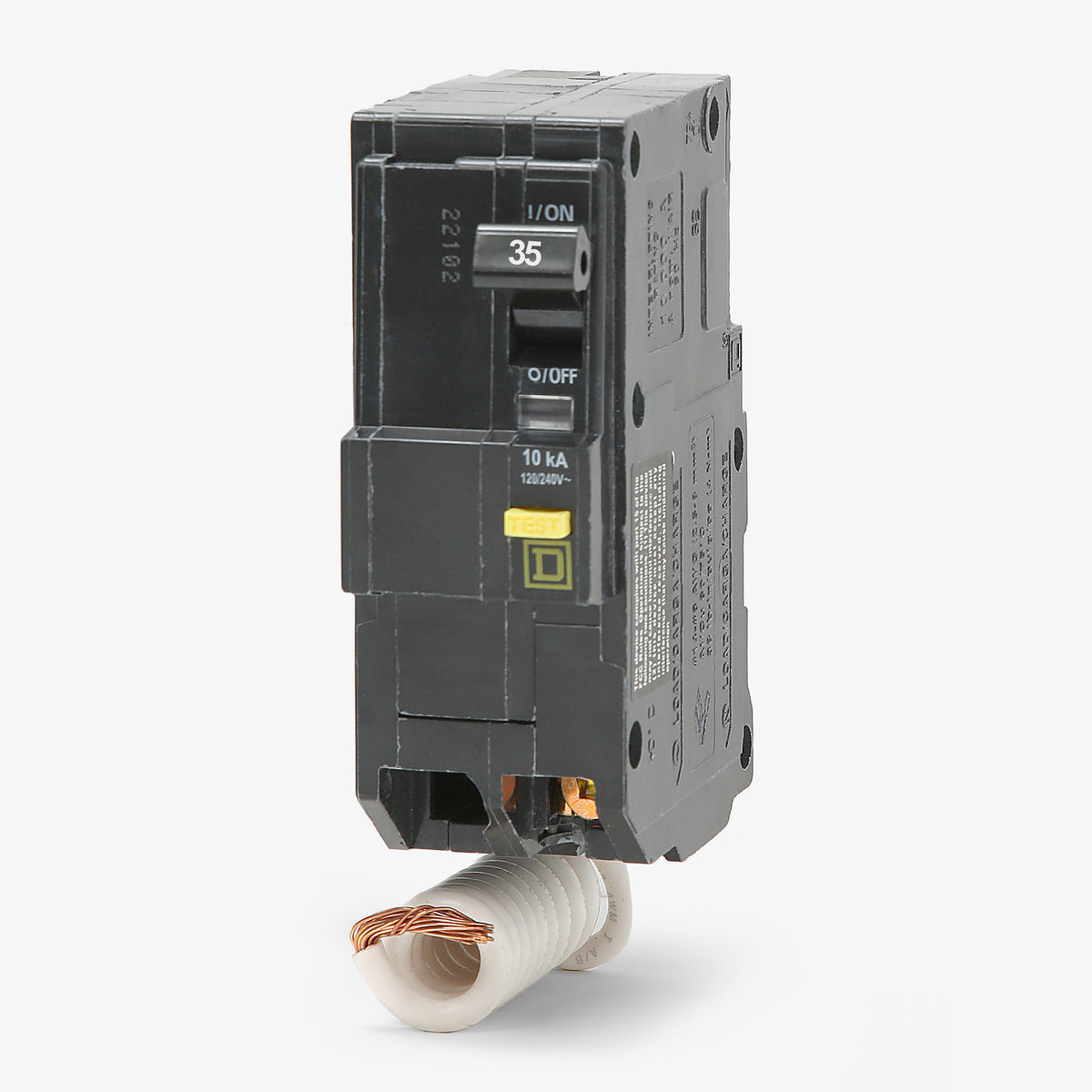

Square D QO235GFI GFCI Miniature Circuit Breaker
- 35A
- 2 Pole
- Plug-On
Square D
QO235GFI
GFCI Miniature Circuit Breaker
Brand
Square D
SKU
QO235GFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO235GFI - 35A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
40A GFCI Miniature Circuit Breaker
30A GFCI Miniature Circuit Breaker
30A GFCI Miniature Circuit Breaker
Description
Part of the Qwik-Gard series, the Square D QO235GFI provides 35A of power while actively monitoring for dangerous ground faults. It is engineered for environments requiring strict adherence to NEC safety codes for wet locations. This breaker is compatible with QO load centers and NQ panelboards. It utilizes a plug-on mounting style and includes a pigtail neutral connection. Offering a 10 kAIC rating at 120/240V, it features a self-test function and the Visi-Trip indicator for rapid diagnostics.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO235GFI |
| Series | QO |
| Amperage | 35A |
| Poles | 2 |

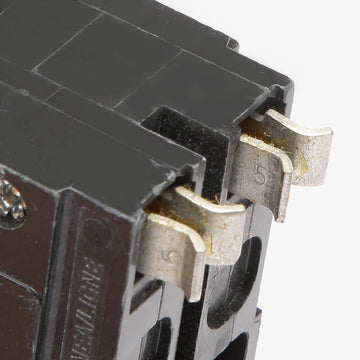

| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Self-Test |
Product FAQs
6 answersCan I install the QO235GFI in a Square D Homeline panel?
No. The QO235GFI is designed exclusively for Square D QO load centers, NQ panelboards, and NQOD panelboards. Homeline panels require Homeline (HOM) series breakers.
How is the neutral connection made on the QO235GFI?

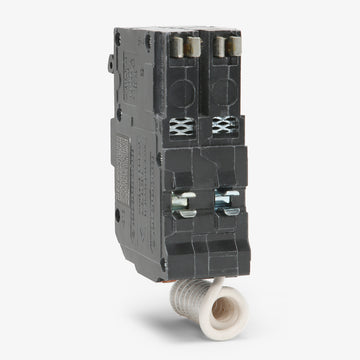

This breaker features a pigtail neutral connection. The coiled white wire must be routed and connected directly to the neutral bus bar in the panel to power the GFCI circuitry.
Can the QO235GFI be used for straight 240V loads that do not have a neutral wire?
Yes. A 2-pole GFCI breaker can protect straight 240V loads, such as certain pumps or heaters. The breaker's white pigtail must still be connected to the panel's neutral bar, but the load neutral terminal on the breaker can be left empty.
What level of ground fault protection does the QO235GFI provide?
This breaker provides Class A ground fault protection, which is designed to trip when a ground fault of 4 to 6 milliamperes is detected, protecting personnel from electrical shock.
What does the LIG trip function mean on the QO235GFI?
LIG stands for Long-Time, Instantaneous, and Ground-Fault. This indicates the breaker provides thermal protection against standard overloads (Long-Time), magnetic protection against short circuits (Instantaneous), and Class A protection against ground faults.
Does the QO235GFI feature a tripped circuit indicator?

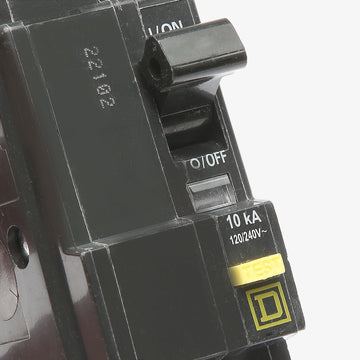

Yes. It includes the Square D Visi-Trip indicator. When the breaker trips, the handle snaps to a midpoint position and a highly visible red indicator appears, allowing for quick identification of the faulted circuit.
