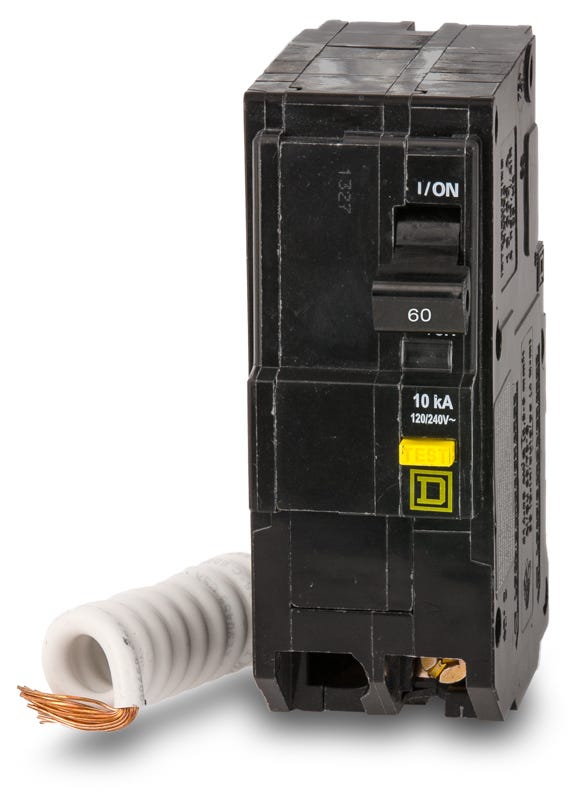

Square D QO260GF I - 60A GFCI Miniature Circuit Breaker
- 60A
- 2 Pole
- Plug-On
Square D
QO260GF
I - 60A GFCI Miniature Circuit Breaker
Brand
Square D
SKU
QO260GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO260GFI - 60A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
Square D QO260GFI - 60A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO260GF |
| Series | QO |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG (Al), 6 AWG (Cu) |
| Min Wire | 12 AWG (Al), 14 AWG (Cu) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break, RoHS Compliant, Mercury Free |
Sold out
Quantity
Square D QO260GFI - 60A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO260GF-R |
| Series | QO |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG (Al), 6 AWG (Cu) |
| Min Wire | 12 AWG (Al), 14 AWG (Cu) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break, RoHS Compliant, Mercury Free |
Similar Items
45A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
Description
Engineered for residential and commercial use, the Square D QO260GF delivers Class A ground-fault protection. This 60A, two-pole breaker meets NEC requirements for wet locations. The plug-on design mounts into Square D QO load centers and NQ panelboards. It accepts 14-6 AWG copper or 12-4 AWG aluminum wiring via box lug terminals. Featuring Qwik-Gard technology and a pigtail neutral, it ensures accurate sensing. The Visi-Trip indicator provides a clear visual signal when the breaker trips.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO260GF |
| Series | QO |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG (Al), 6 AWG (Cu) |
| Min Wire | 12 AWG (Al), 14 AWG (Cu) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break, RoHS Compliant, Mercury Free |
Product FAQs
6 answersWhat panels are compatible with the QO260GF circuit breaker?
This breaker installs in Square D QO load centers and NQ panelboards. It is not compatible with Square D Homeline panels.
Are the QO260GF and QO260GFI the same circuit breaker?
Yes, QO260GF and QO260GFI are interchangeable catalog numbers for the same Square D 60A 2-pole GFCI breaker with a pigtail neutral.
Does the QO260GF require a neutral connection for straight 240V loads?
Yes. Even if the connected equipment does not require a load neutral, the breaker's white pigtail wire must be connected to the panel neutral bus. This powers the internal GFCI circuitry and ensures the test button functions correctly.
What level of ground fault protection does this breaker provide?
The QO260GF delivers Class A ground fault protection. It is designed to trip when it detects a ground fault of 6mA or higher, providing personnel protection for wet locations like hot tubs, spas, and pools.
How do I identify a tripped QO260GF breaker in the panel?
This breaker includes the Square D Visi-Trip indicator. When the breaker trips due to an overload, short circuit, or ground fault, a red indicator appears in the window for quick visual identification.
Can I install the QO260GF in a Plug-On Neutral load center?
Yes, this pigtail neutral breaker can be installed in a Plug-On Neutral panel, provided you manually wire the pigtail to the neutral bus. For a direct connection without a pigtail, the QO260PGF is required.
