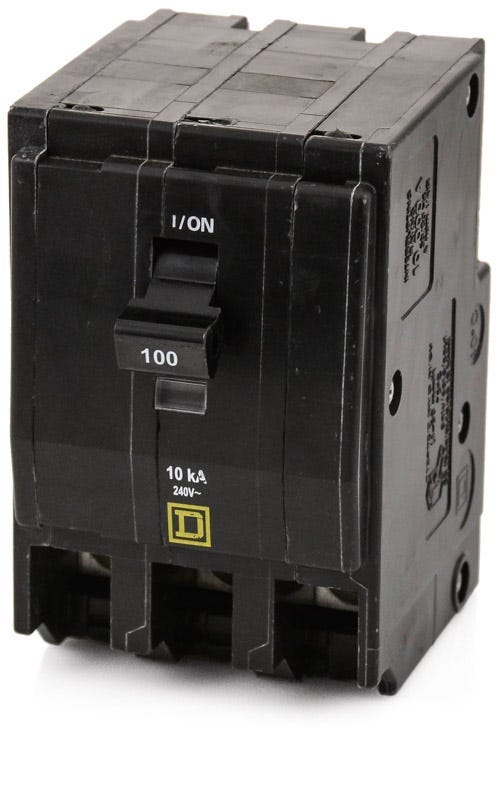

Square D QO3100VH Miniature Circuit Breaker
- 100A
- 3 Pole
- Plug-On
Square D
QO3100VH
Miniature Circuit Breaker
Brand
Square D
SKU
QO3100VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO3100VH - 100A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
60A 3 Pole Miniature Circuit Breaker
50A 3 Pole Miniature Circuit Breaker
40A 3 Pole Miniature Circuit Breaker
Description
High-capacity circuit protection comes standard with this three-pole, 100A miniature breaker from Schneider Electric. The VH designation indicates an upgraded 22kAIC rating, making it suitable for demanding commercial environments requiring robust fault clearing capabilities. Designed to snap securely into compatible enclosures, it fits standard QO load centers as well as NQ and legacy NQOD panelboards. The box lug terminals accept 4 AWG to 2/0 AWG aluminum or copper wiring.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO3100VH |
| Series | QO |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Visi-Trip Indicator |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, HACR Rated, Visual Trip Indicator, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Mercury Free, RoHS Compliant |
Product FAQs
6 answersHow many panel spaces does the QO3100VH require?
As a 3-pole QO series breaker, it requires three 3/4-inch spaces in a compatible 3-phase panel.
What does the VH suffix mean in the QO3100VH part number?
The VH suffix designates a high interrupting rating of 22kAIC. This provides a higher fault current rating than the 10kAIC limit found on standard QO circuit breakers without the VH suffix.
Can the QO3100VH be installed in a Square D Homeline load center?
No. Square D QO breakers use a 3/4-inch format that is not physically interchangeable with 1-inch Homeline panels. This breaker must be installed in a QO load center or an NQ/NQOD panelboard.
Can I use this 3-pole breaker in a single-phase residential panel?
No. The QO3100VH is a 3-pole circuit breaker designed strictly for 3-phase systems. It will not safely or correctly land on the bus bars of a single-phase load center.
Does the QO3100VH feature a tripped circuit indicator?
Yes. It includes the Square D Visi-Trip window. When the breaker trips, the handle rests in a center position and a bright red indicator appears in the window to quickly identify the tripped circuit.
Is the QO3100VH HACR rated?
Yes. Standard QO thermal-magnetic circuit breakers are UL listed as HACR type, making them suitable for use with compatible heating, air conditioning, and refrigeration equipment.
