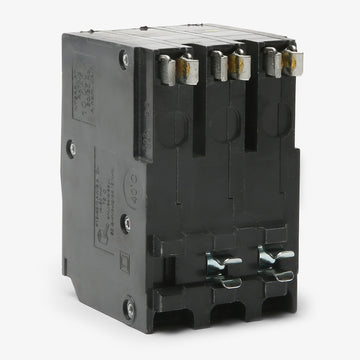

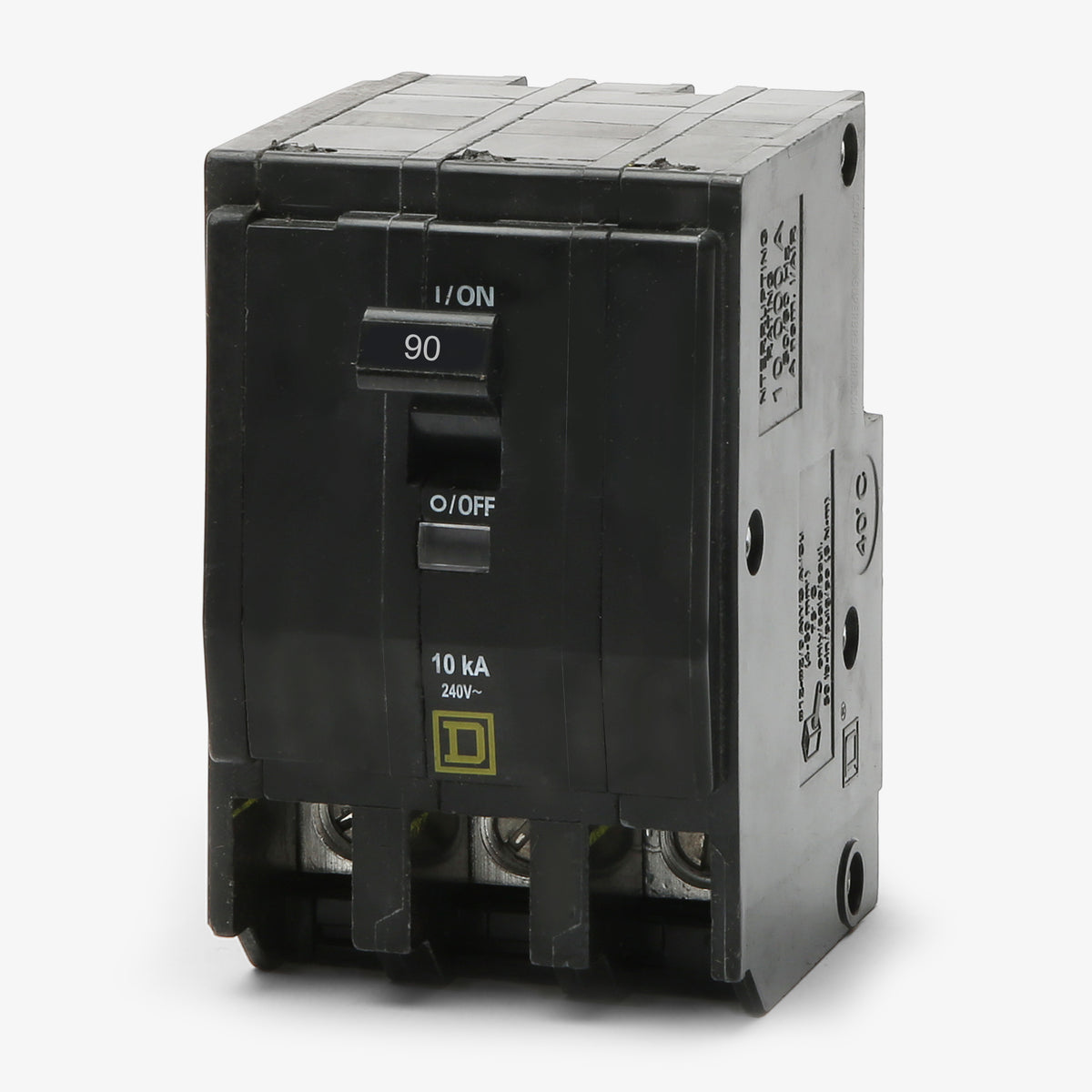

Square D QO390 Miniature Circuit Breaker
- 90A
- 3 Pole
- Plug-On
Square D
QO390
Miniature Circuit Breaker
Brand
Square D
SKU
QO390
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO390 - 90A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QO390 - 90A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO390 |
| Series | QO |
| Amperage | 90A |
| Poles | 3 |

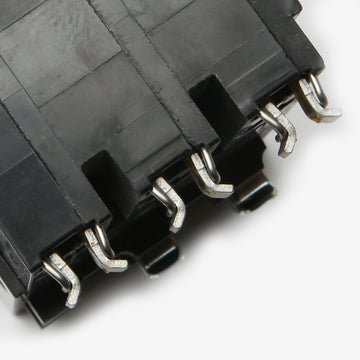

| Mounting Style | Plug-On |
| Voltage | 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |

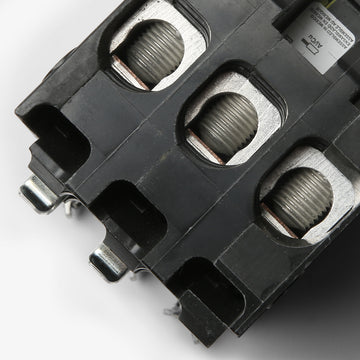

| Terminal Type | Box Lugs |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards, Speed-D Switchboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Sold out
Quantity
Square D QO390 - 90A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO390-R |
| Series | QO |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards, Speed-D Switchboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Similar Items
100A 3 Pole Miniature Circuit Breaker
100A 3 Pole Miniature Circuit Breaker
80A 3 Pole Miniature Circuit Breaker
Description
Designed for commercial and industrial environments, the QO390 delivers robust thermal-magnetic protection for three-phase systems. It mounts into standard Square D QO load centers, NQ panelboards, and Speed-D switchboards without requiring special tools. Featuring the signature Visi-Trip indicator, this 10kAIC rated component allows maintenance personnel to quickly identify tripped circuits, minimizing downtime in critical facility operations.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO390 |
| Series | QO |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards, Speed-D Switchboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Product FAQs
5 answersCan I install the QO390 in a Square D Homeline load center?
No. Homeline load centers only accept HOM series circuit breakers, which are built on a 1 inch wide format. The QO390 uses a 3/4 inch per pole design and is physically incompatible.
What is the catalog number for the bolt-on equivalent of this breaker?
If your installation requires bolt-on connections instead of a plug-on mount, you will need to source catalog number QOB390.
Does the QO390 include the Square D Visi-Trip indicator?
Yes, it is equipped with the Visi-Trip feature. When the breaker trips due to an overcurrent or short circuit, a highly visible red flag appears in the indicator window for quick identification.
Is the QO390 approved for HVAC equipment?
Yes, this breaker is HACR rated. It is suitable for protecting heating, air conditioning, and refrigeration equipment circuits.
Will all three poles open simultaneously during a fault?
Yes. The QO390 features an internal common trip mechanism. If an overcurrent or short circuit occurs on any single pole, it forces all three poles to open simultaneously, preventing single-phasing of your connected equipment.
