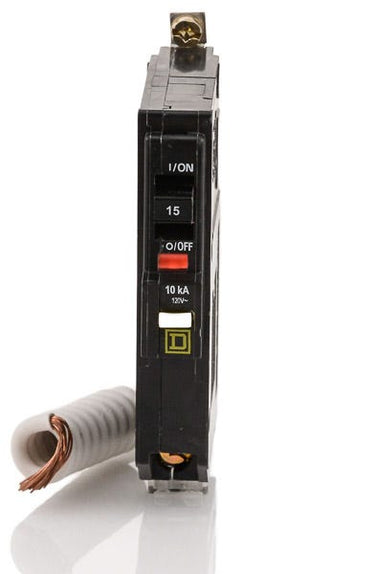

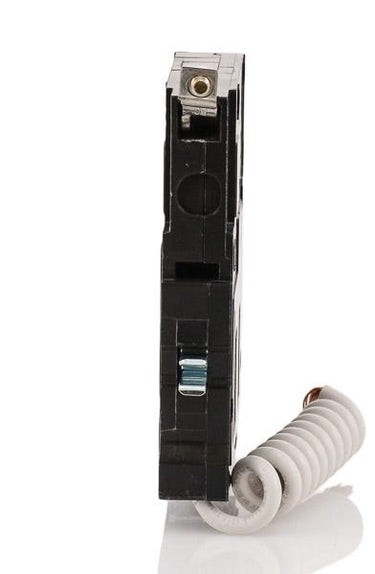

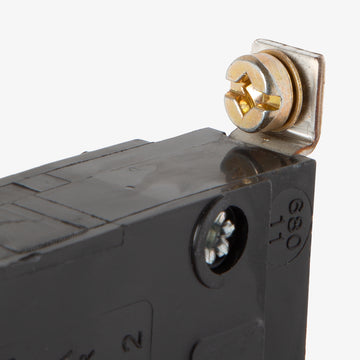

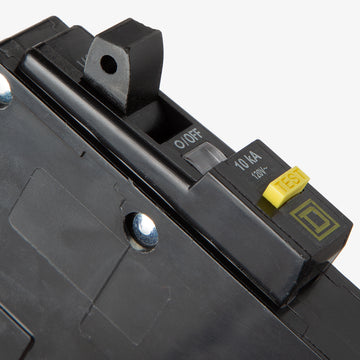

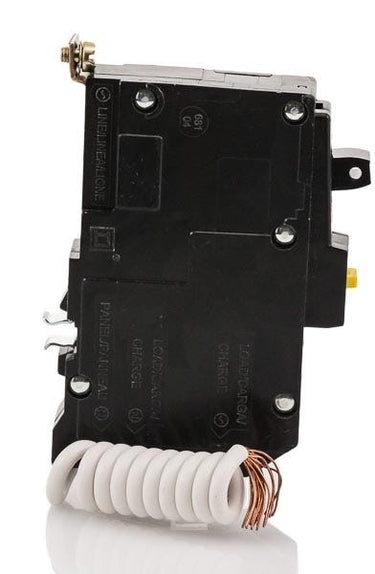

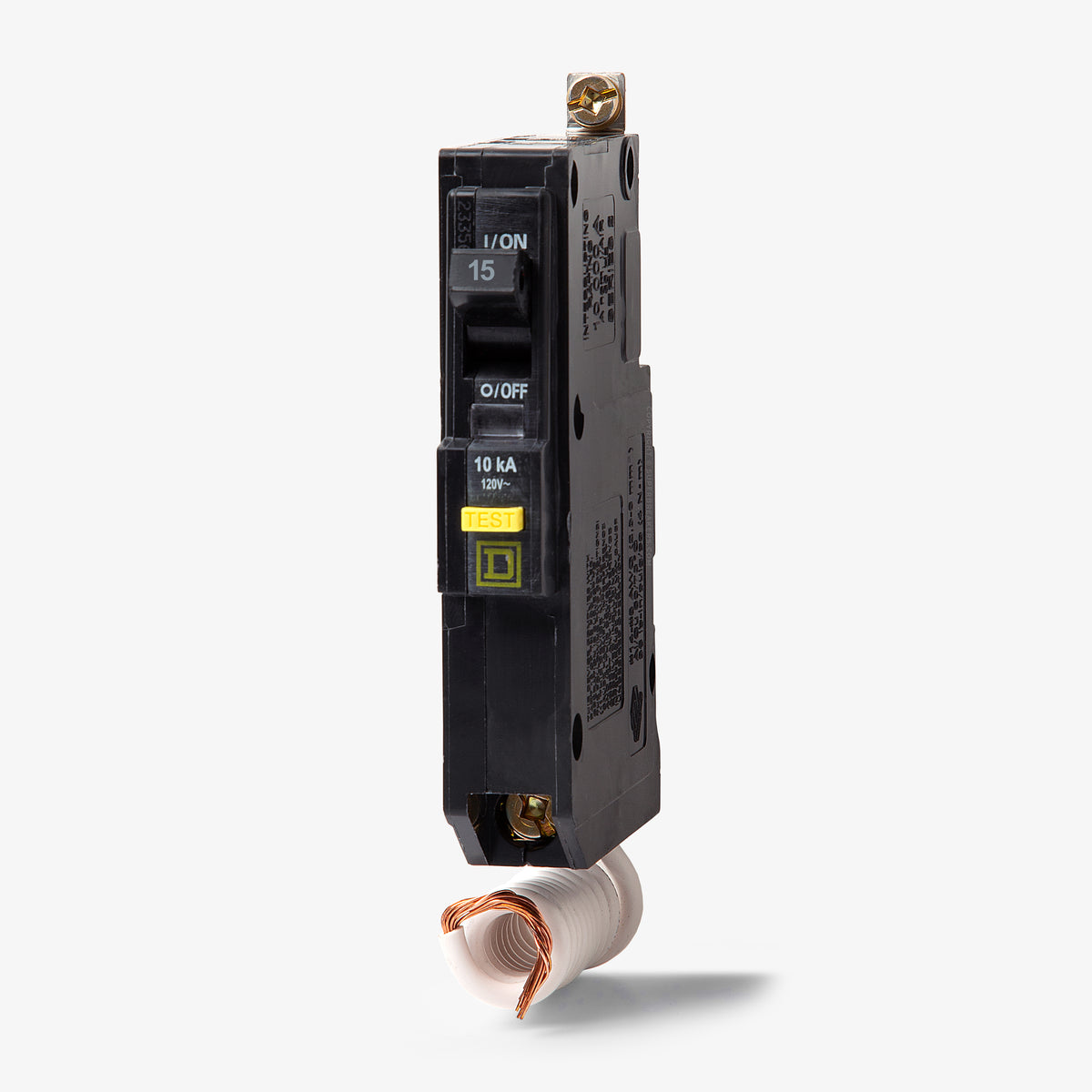

Square D QOB115GFI GFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Square D
QOB115GFI
GFCI Miniature Circuit Breaker
Brand
Square D
SKU
QOB115GFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB115GFI - 15A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB115GFI - 15A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB115GFI |
| Series | QOB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 489, UL 943, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Sold out
Quantity
Square D QOB115GFI - 15A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB115GF-R |
| Series | QOB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 489, UL 943, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Similar Items
20A GFCI Miniature Circuit Breaker
25A GFCI Miniature Circuit Breaker
30A GFCI Miniature Circuit Breaker
Description
Built for demanding commercial environments, this single-pole 15A breaker provides essential Class A 6mA ground-fault protection for personnel. It fastens securely into NQ and NQOD panelboards via a robust bolt-on connection, ensuring stable performance in high-vibration industrial settings. The inclusion of a pigtail neutral and Visi-Trip indicator simplifies both installation and troubleshooting, helping facilities meet NEC safety standards for damp or wet locations.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB115GFI |
| Series | QOB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 489, UL 943, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Product FAQs
6 answersCan I install the QOB115GFI in a standard QO load center?
No. The QOB115GFI features a bolt-on connection designed specifically for Square D NQ and NQOD panelboards. For a standard QO load center, you will need the plug-on equivalent, catalog number QO115GFI.
What is the plug-on equivalent for this bolt-on GFCI breaker?
The plug-on equivalent is the Square D QO115GFI, which is used in standard QO residential and commercial load centers.
What is the ground fault trip threshold for the QOB115GFI?
This breaker provides Class A ground fault protection for personnel and is designed to trip when it detects a ground fault leakage current of 6 mA.
Is there an Equipment Protection Device (EPD) version of this 15A breaker?
Yes. If you need equipment protection with a higher 30 mA trip threshold to prevent nuisance tripping on heat trace or industrial equipment, use the Square D QOB115EPD.
How is the neutral connection made on the QOB115GFI?
This breaker includes a pigtail neutral wire that must be routed and connected directly to the neutral bus bar in your NQ or NQOD panelboard to ensure proper ground fault sensing.
Does this breaker feature a tripped status indicator?
Yes, it includes the Square D Visi-Trip indicator. When the breaker trips due to an overload, short circuit, or ground fault, a highly visible red flag appears in the handle window to help you quickly identify the tripped circuit.
