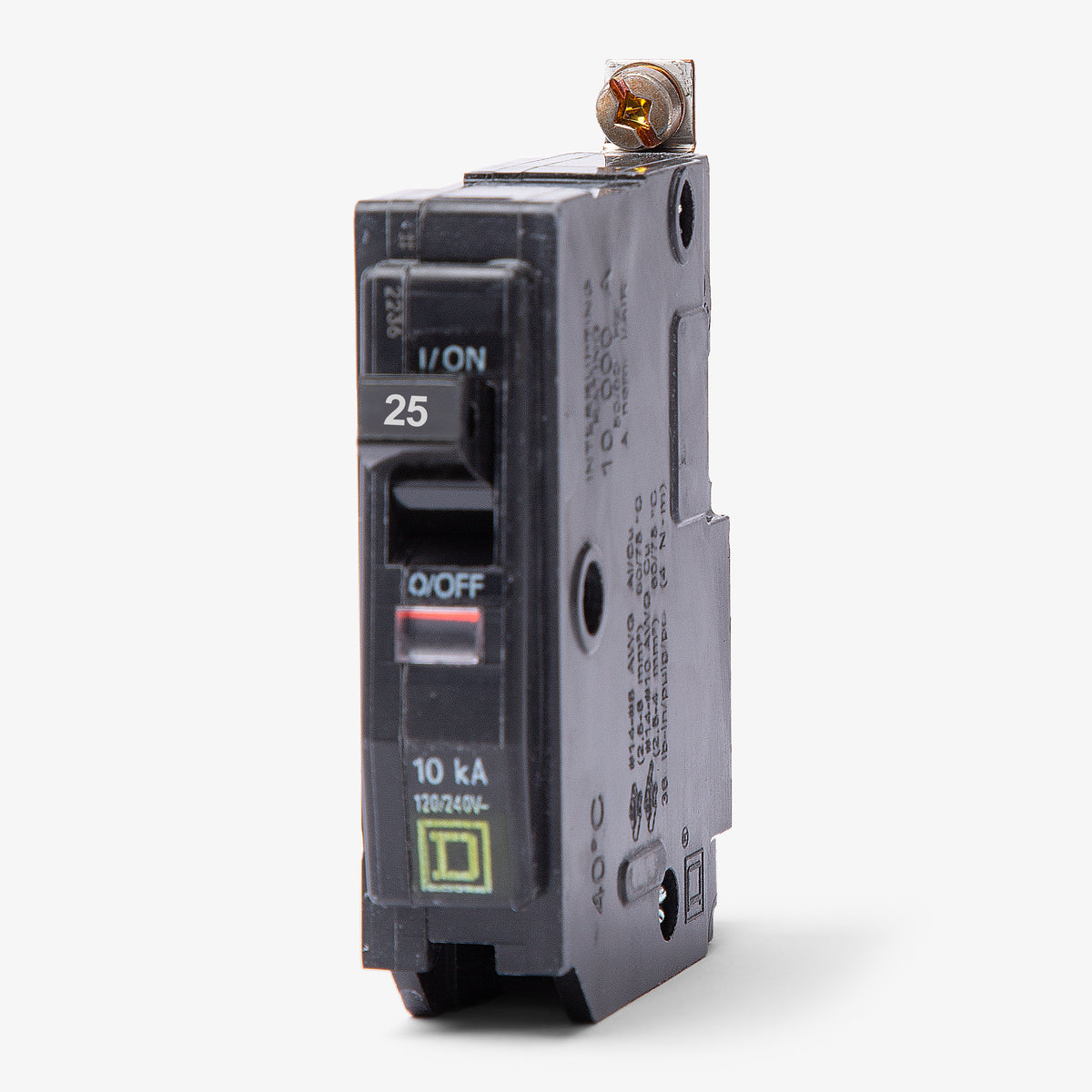

Square D QOB125 Miniature Circuit Breaker
- 25A
- 1 Pole

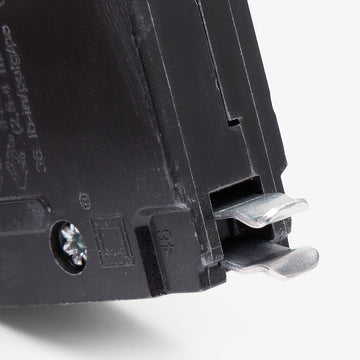

- Bolt-On
Square D
QOB125
Miniature Circuit Breaker
Brand
Square D
SKU
QOB125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB125 - 25A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB125 - 25A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB125 |
| Series | QOB |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Sold out
Quantity
Square D QOB125 - 25A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB125-R |
| Series | QOB |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Similar Items
30A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
Description
Built for commercial and industrial applications, the Square D QOB125 is a single-pole, 25-amp miniature circuit breaker. It delivers dependable thermal-magnetic protection for standard branch circuits. This device mounts into Square D NQ and NQOD panelboards using a secure bolt-on connection. The pressure plate terminals accommodate 14-8 AWG aluminum or copper wire. Rated at 10kAIC at 120/240VAC, this HACR-rated breaker includes the Visi-Trip indicator to easily spot tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB125 |
| Series | QOB |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
5 answersCan I install the QOB125 circuit breaker in a standard QO load center?
No. The QOB125 features a bolt-on connection designed specifically for commercial and industrial Square D NQ and NQOD panelboards. Standard residential QO load centers require plug-on circuit breakers.
What is the recommended terminal torque for wiring the QOB125?

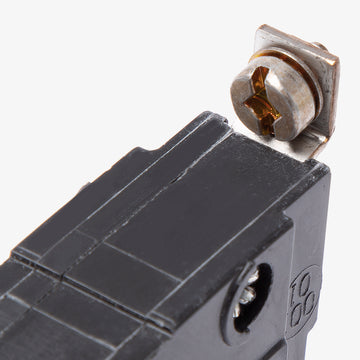

The pressure plate terminals on the QOB125 should be torqued to 35.4 lb-in (4 N.m) when using properly sized 14-8 AWG copper or aluminum conductors.
Does the QOB125 miniature circuit breaker include a Visi-Trip indicator?
Yes, standard QOB breakers feature the Visi-Trip indicator. When the breaker trips, the handle snaps to a midpoint position and a highly visible red flag appears to help quickly identify the faulted circuit.
Is there a 25A 1-pole bolt-on breaker with a higher interrupting rating than the QOB125?
Yes. If your panelboard requires a higher short-circuit current rating than the 10kAIC provided by the standard QOB125, you can use the QOB125VH for 22kAIC or the QHB125 for 65kAIC at 120/240VAC.
How does the thermal magnetic trip mechanism in the QOB125 function?
The thermal magnetic (LI) mechanism provides two levels of protection. The long-time thermal component protects against sustained overloads by heating up and bending a bimetallic strip, while the instantaneous magnetic component trips immediately in the presence of a severe short circuit.
