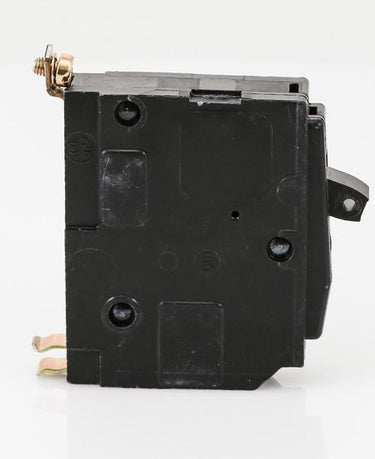

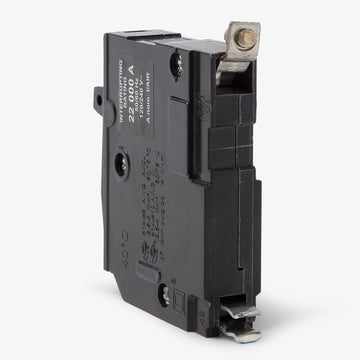

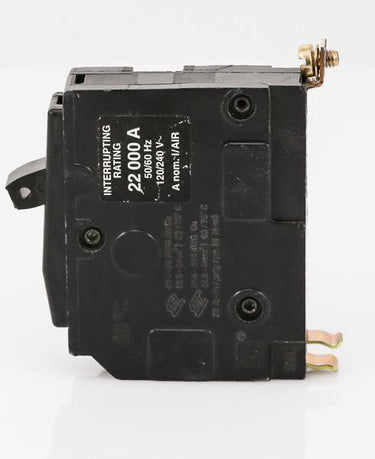

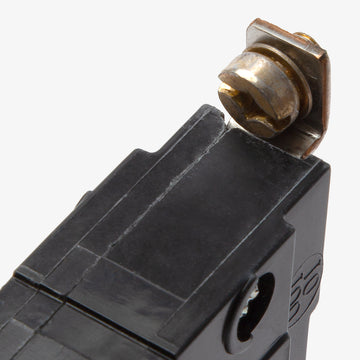

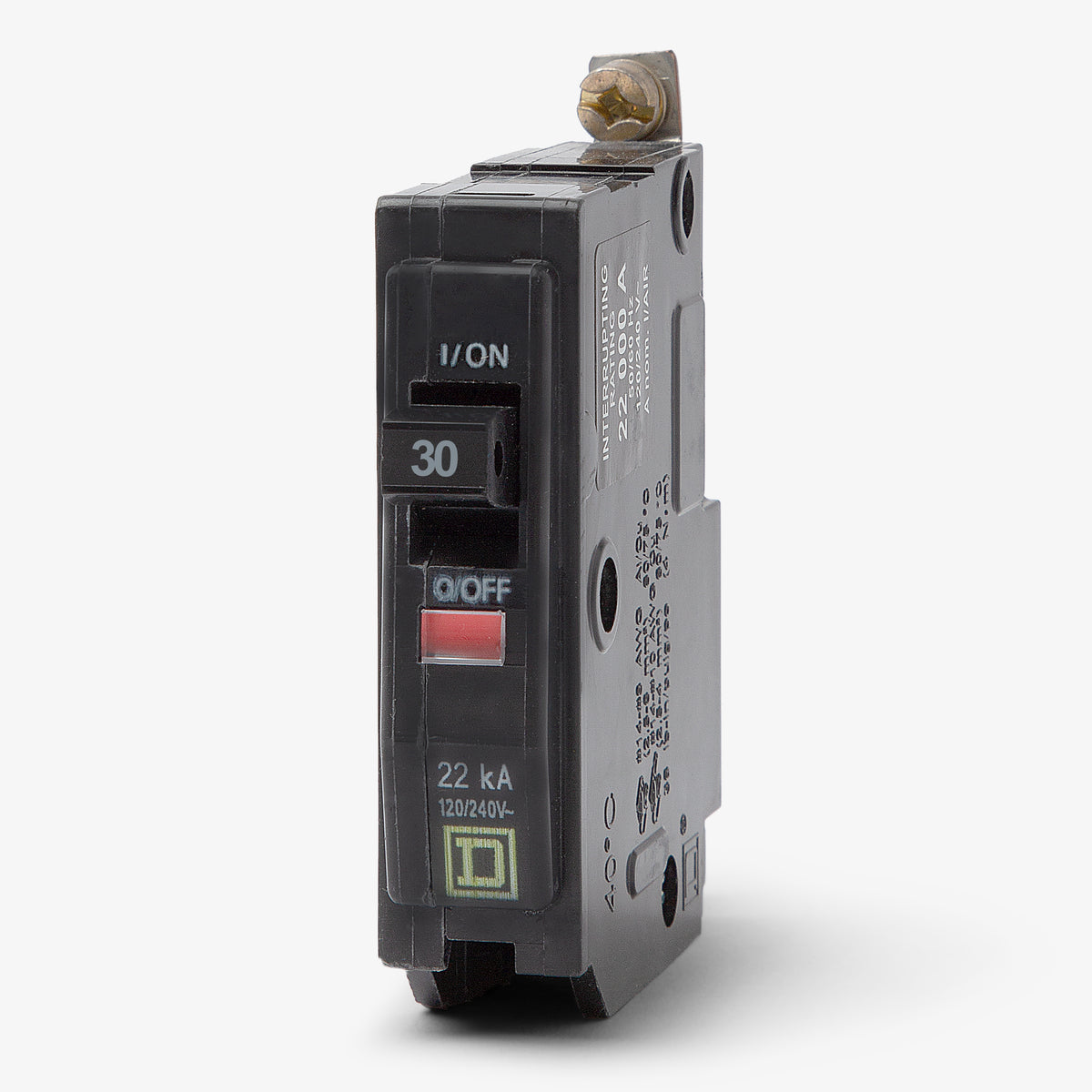

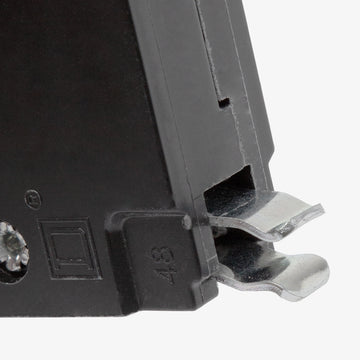

Square D QOB130VH Miniature Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Square D
QOB130VH
Miniature Circuit Breaker
Brand
Square D
SKU
QOB130VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB130VH - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB130VH - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB130VH |
| Series | QOB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Visual Trip Indicator, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
Square D QOB130VH - 30A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB130VH-R |
| Series | QOB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Visual Trip Indicator, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
20A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
15A 1 Pole Miniature Circuit Breaker
Description
Rated for 22kAIC at 120/240VAC, this high-interrupting capacity breaker offers enhanced fault protection for demanding commercial environments. The 30-amp device fastens firmly into Square D NQ or NQOD panelboards, ensuring a reliable connection that withstands industrial vibrations. It features a quick-make/quick-break mechanism and the standard Visi-Trip indicator, allowing electricians to spot tripped circuits instantly.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB130VH |
| Series | QOB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Visual Trip Indicator, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersCan I install the QOB130VH in a standard Square D QO load center?
No. The QOB130VH is a bolt-on circuit breaker designed specifically for commercial NQ and NQOD panelboards. Standard residential QO load centers require plug-on QO breakers, not QOB.
What does the "VH" signify in the QOB130VH catalog number?
The "VH" designates a very high interrupting rating. The QOB130VH is rated for 22kAIC at 120/240VAC, whereas a standard QOB130 is only rated for 10kAIC.
Can the QOB130VH replace a standard QOB130 breaker?
Yes. The QOB130VH shares the exact same physical dimensions and bolt-on mounting style as the standard QOB130. It can be used as a direct replacement, especially when a panel upgrade requires a higher 22kAIC interrupting capacity.
Is the QOB130VH HACR rated for HVAC applications?
Yes, this breaker is HACR rated. It is approved for use with heating, air conditioning, and refrigeration equipment that specifies HACR-type circuit breakers for motor group combinations.
Does the QOB130VH carry an SWD rating for switching lighting loads?
No. While it is suitable for general branch circuit protection, the SWD (Switching Duty) rating for 120V fluorescent lighting loads is only applied to 15-amp and 20-amp single-pole QO and QOB breakers.
