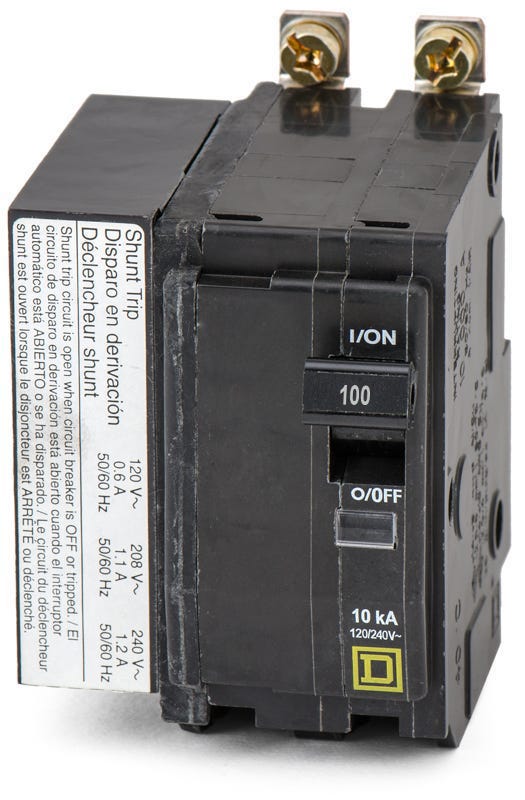

Square D QOB2100-1042 QOB21001042 - 100A 2 Pole Miniature Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Square D
QOB2100-1042
QOB21001042 - 100A 2 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QOB2100-1042
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB21001042 - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
90A 2 Pole Miniature Circuit Breaker
125A 2 Pole Miniature Circuit Breaker
70A 2 Pole Miniature Circuit Breaker
Description
Designed for demanding commercial applications, this two-pole, 100A miniature circuit breaker provides reliable thermal-magnetic protection. It mounts securely into NQ and NQOD panelboards via a bolt-on connection, ensuring excellent stability. What sets this model apart is its factory-installed 12/24V AC/DC shunt trip for low-voltage remote tripping. It offers a 10kAIC rating at 120/240VAC and features the Visi-Trip visual indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB2100-1042 |
| Series | QOB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG-2/0 AWG (Cu/Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
8 answersWhat does the -1042 suffix indicate on the QOB2100-1042?
The -1042 suffix means this breaker is equipped with a factory-installed 12/24V AC/DC shunt trip. This allows for remote tripping of the breaker using a low-voltage control signal.
Which panelboards are compatible with this bolt-on breaker?
The QOB2100-1042 is designed exclusively for use in Square D NQ and NQOD panelboards.
Can I use the QOB2100-1042 in a standard QO load center?
No. This breaker features a bolt-on mounting design intended for commercial panelboards. Standard QO load centers require plug-on breakers.
What wire sizes and materials are supported by the box lugs?
The terminals on this 100A breaker accept both copper and aluminum conductors ranging from 4 AWG to 2/0 AWG.
Is this breaker suitable for direct current (DC) systems?
Yes. Alongside its standard 120/240VAC rating, this breaker is rated for 48VDC applications with an interrupting capacity of 5kA.
Does this breaker include GFCI or AFCI protection?
No. This model provides standard thermal-magnetic protection with long-time and instantaneous (LI) trip functions. It does not offer ground fault or arc fault protection.
How does the factory-installed shunt trip operate?
The integrated shunt trip allows the breaker to be opened remotely when a 12/24V AC or DC voltage is applied to the coil. This is commonly used for emergency power-off (EPO) systems or remote control applications.
What is the difference between QO and QOB circuit breakers?
QO breakers are plug-on units typically used in residential load centers. QOB breakers feature a bolt-on connection for secure, vibration-resistant installation in commercial NQ and NQOD panelboards.
