Square D QOB2100-1021 QOB21001021 - 100A 2 Pole Miniature Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Square D
QOB2100-1021
QOB21001021 - 100A 2 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QOB2100-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB21001021 - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB21001021 - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB21001021 |
| Series | QOB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Sold out
Quantity
Square D QOB21001021 - 100A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB21001021-R |
| Series | QOB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
90A 2 Pole Miniature Circuit Breaker
125A 2 Pole Miniature Circuit Breaker
70A 2 Pole Miniature Circuit Breaker
Description

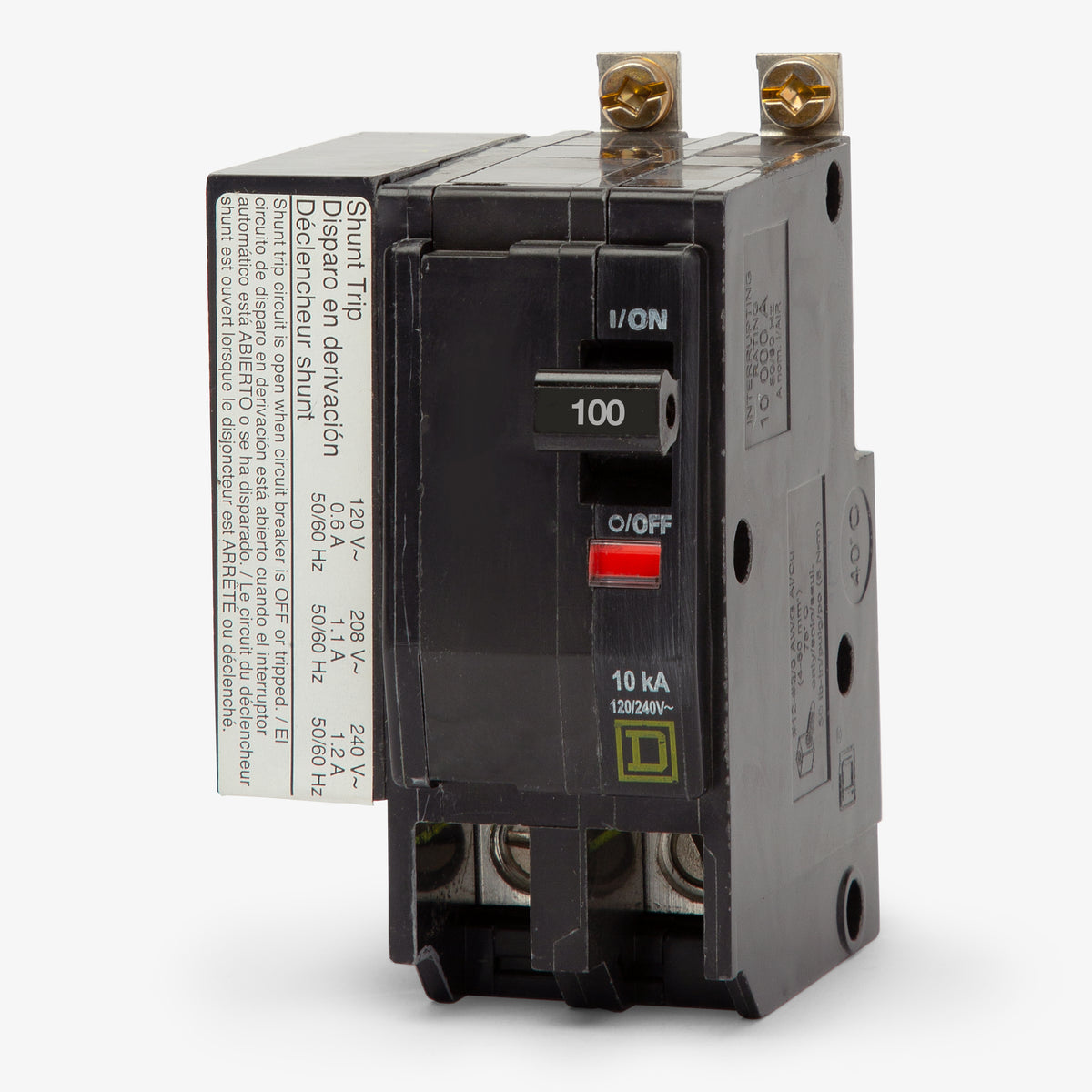

Part of the Square D QO family, this 2-pole, 100A miniature circuit breaker is built for commercial and industrial environments. It installs into NQ and NQOD panelboards, utilizing a bolt-on connection for a secure, vibration-resistant fit. The key feature is a factory-installed 120/208/240VAC shunt trip for remote tripping. It also delivers a 10kAIC rating and includes the signature Visi-Trip indicator for rapid fault identification.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB21001021 |
| Series | QOB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat does the -1021 suffix indicate on the QOB2100-1021 circuit breaker?
The -1021 suffix designates that this breaker includes a factory-installed 120/208/240VAC shunt trip accessory. This allows the breaker to be opened remotely via an external control signal.
Which panelboards are compatible with the Square D QOB2100-1021?
This bolt-on miniature circuit breaker is designed specifically for Square D NQ and legacy NQOD panelboards. It cannot be installed in standard QO load centers, which require plug-on breakers.
What is the difference between the QOB2100-1021 and the QO2100-1021?
The QOB2100-1021 is a bolt-on breaker for NQ and NQOD panelboards, while the QO2100-1021 is the plug-on equivalent for standard QO load centers. Both are 100A, 2-pole breakers equipped with a factory-installed shunt trip.
Does the QOB2100-1021 include a visual trip indicator?
Yes, it features the Square D Visi-Trip indicator. When the breaker trips due to an overcurrent or short circuit event, a highly visible red flag appears in the indicator window for rapid fault identification.
How is the factory-installed shunt trip wired on the QOB2100-1021?
The shunt trip accessory features two dedicated terminals. To enable remote tripping, these terminals must be wired to a 120/208/240VAC control power source through a normally open contact, such as an emergency push button or fire alarm relay.
How does the QOB2100-1021 secure to the panelboard bus?
This QOB series breaker utilizes a bolt-on mounting connection. It fastens directly to the panelboard bus with screws, providing a secure, vibration-resistant connection required in many commercial and industrial environments.
