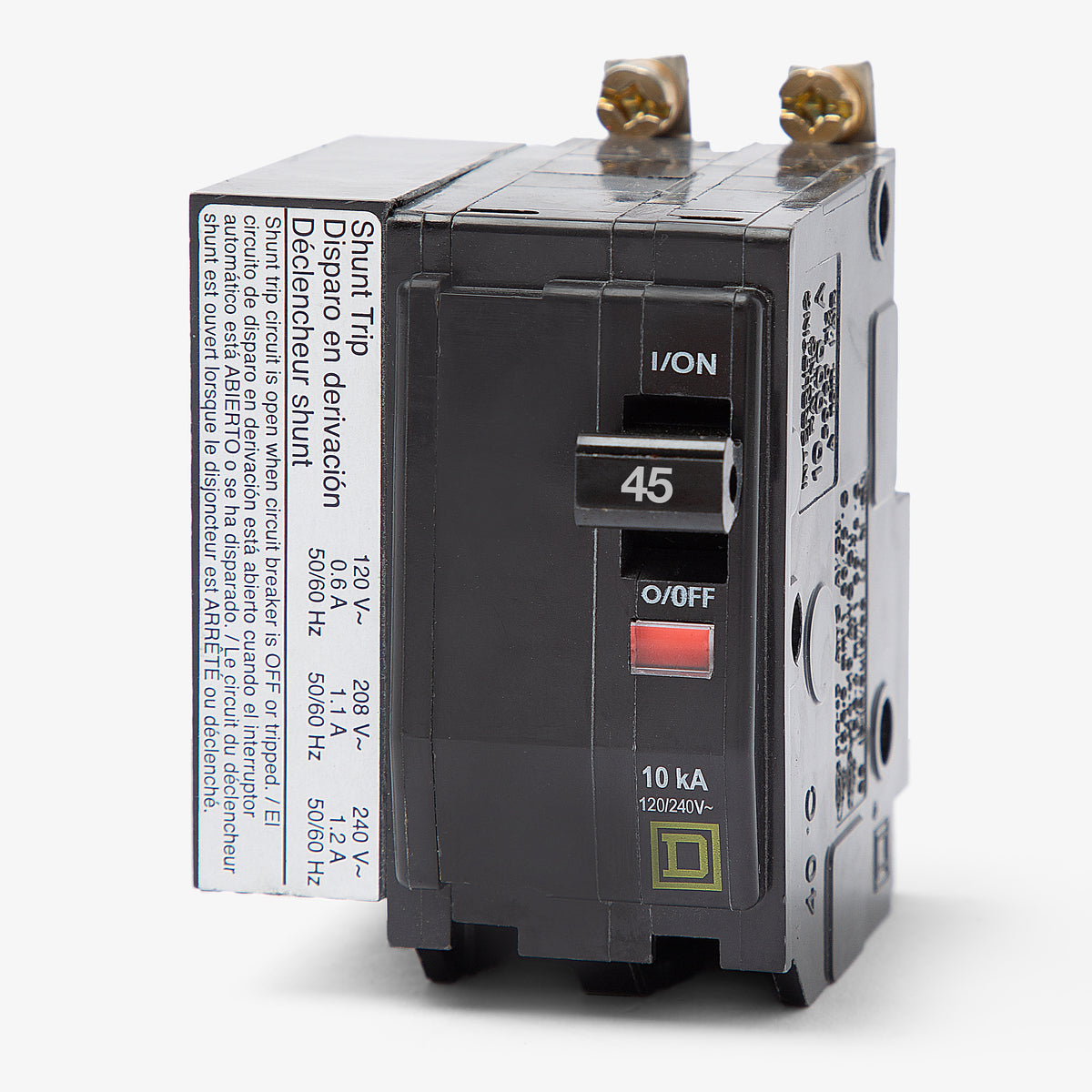

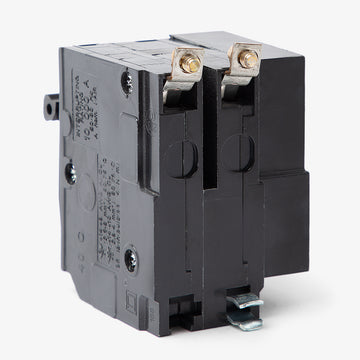

Square D QOB2451021 Miniature Circuit Breaker
- 45A
- 2 Pole
- Bolt-On
Square D
QOB2451021
Miniature Circuit Breaker
Brand
Square D
SKU
QOB2451021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB2451021 - 45A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
QOB230VH1021 - 30A 2 Pole Miniature Circuit Breaker
25A 2 Pole Miniature Circuit Breaker
70A 2 Pole Miniature Circuit Breaker
Description
Providing remote disconnect capabilities, the Square D QOB2451021 is a 45-amp, 2-pole miniature circuit breaker. It is an excellent choice for commercial and industrial facilities requiring automated or emergency power shutoffs. This unit fastens securely into Square D NQ and NQOD panelboards using a standard bolt-on connection. The box lugs accept 8-2 AWG copper or aluminum wiring. It features a 120/208/240VAC shunt trip, a 10 kAIC rating, and a Visi-Trip visual indicator.Specifications
| Brand | Square D |
|---|---|
| Series | QOB |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120/208/240VAC) |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Visual Trip Indicator |
Product FAQs
9 answersWhat does the 1021 suffix mean on the QOB2451021 breaker?
The 1021 suffix indicates that this breaker includes a factory-installed 120/208/240 VAC shunt trip. This accessory allows the breaker to be opened remotely via an external control signal.
How many panel spaces does the QOB2451021 require?
Although it is a 2-pole breaker, the factory-installed shunt trip requires an additional pole space. It will occupy a total of three spaces in your panelboard.
Which panelboards are compatible with the QOB2451021?
This bolt-on miniature circuit breaker is designed exclusively for use in Square D NQ and NQOD panelboards. It will not fit in standard QO load centers, which require plug-on breakers.

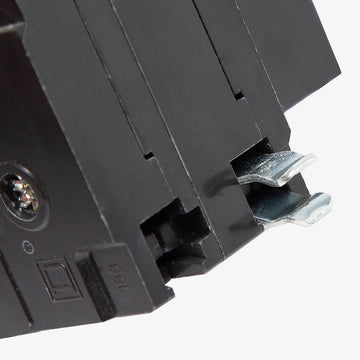

How is the QOB2451021 installed in a panelboard?
It features a bolt-on connection type, which provides a secure, vibration-resistant installation directly to the panelboard bus. This mounting style is standard for commercial and industrial NQ and NQOD panels.
What size wire is required for the shunt trip terminals?
The shunt trip terminals on this breaker accept two 14 AWG to 12 AWG copper wires. The hot and neutral control wires can be connected to either terminal.

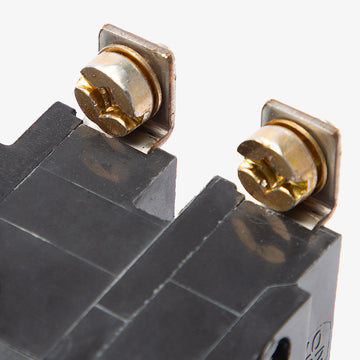

What wire sizes are accepted by the main breaker lugs?
The primary box lugs on the QOB2451021 accept 8 AWG to 2 AWG copper or aluminum conductors.
Can the QOB2451021 be used in DC applications?
Yes. In addition to its standard AC ratings, this breaker is rated for 48VDC applications with an interrupting capacity of 5 kAIC.
What type of trip mechanism does the QOB2451021 use?
It utilizes a fixed thermal-magnetic trip mechanism. The thermal element provides long-time overload protection, while the magnetic element provides instantaneous short-circuit protection.
Does this breaker include a tripped status indicator?
Yes, it features the Square D Visi-Trip indicator. When the breaker trips due to an overcurrent event or a shunt trip command, a highly visible red indicator appears to help quickly identify the tripped circuit.
