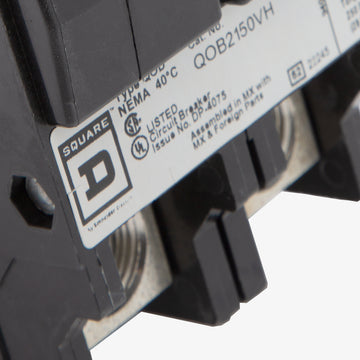

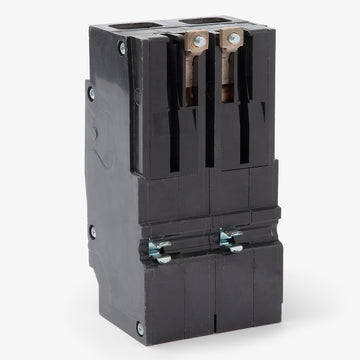

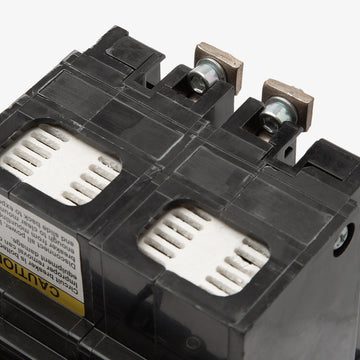

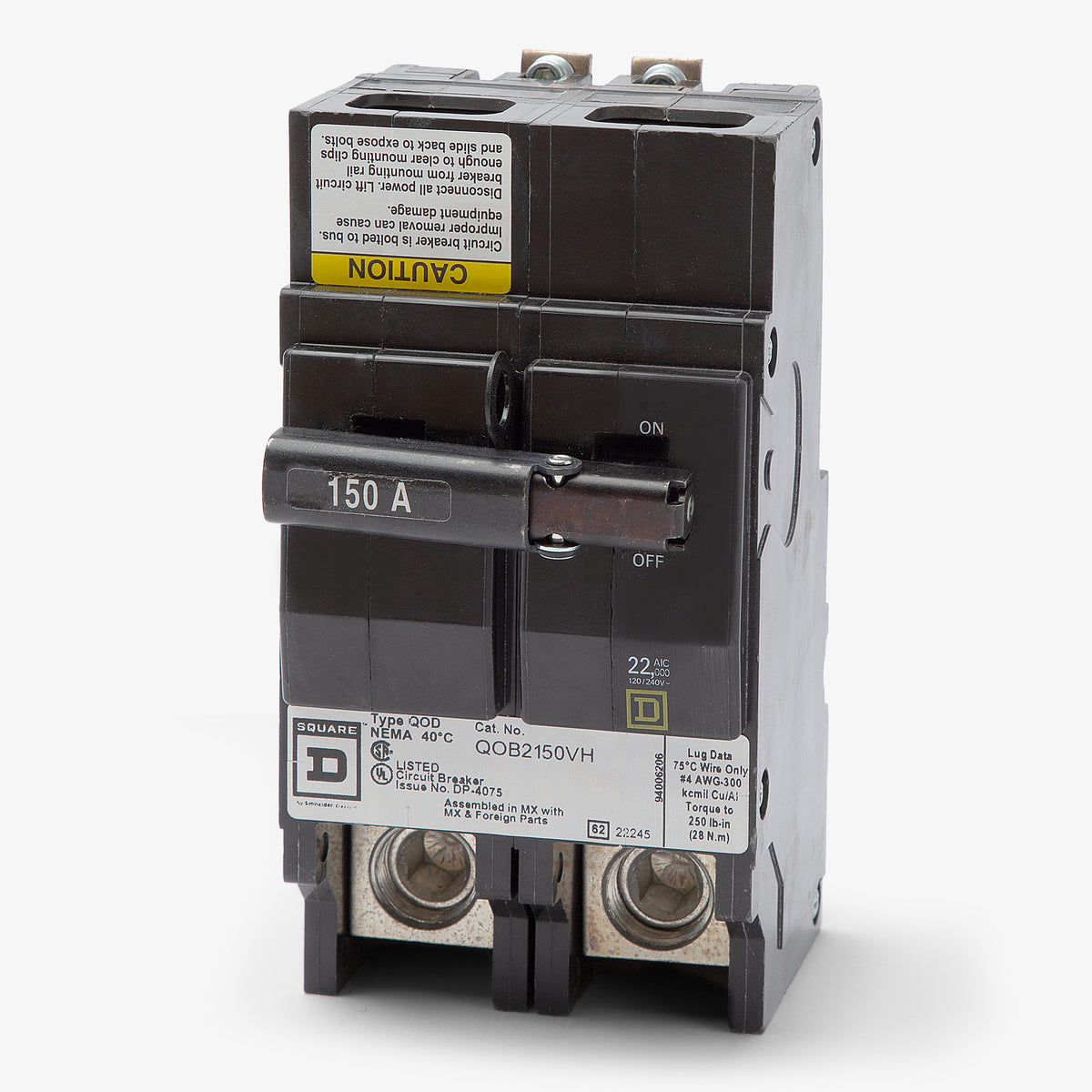

Square D QOB2150VH Miniature Circuit Breaker
- 150A
- 2 Pole
- Bolt-On
Square D
QOB2150VH
Miniature Circuit Breaker
Brand
Square D
SKU
QOB2150VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB2150VH - 150A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB2150VH - 150A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB2150VH |
| Series | QOB |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D QOB2150VH - 150A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB2150VH-R |
| Series | QOB |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
110A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
Description
Engineered for commercial and industrial applications, the Square D QOB2150VH provides robust thermal-magnetic protection for electrical systems. This two-pole, 150-amp miniature circuit breaker operates at 120/240VAC and features a fixed trip mechanism. Installation is straightforward with its bolt-on mounting style, designed specifically to fit into Square D NQ and NQOD panelboards. The bolt-on connection ensures a secure, vibration-resistant fit for demanding environments.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB2150VH |
| Series | QOB |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersHow many pole spaces does the QOB2150VH require in an NQ panelboard?
Although it is a 2-pole circuit breaker, the 150A frame size requires four pole spaces when installed in a single phase NQ or NQOD panelboard.
Can I install this bolt-on breaker in a standard Square D QO load center?
No. The QOB2150VH features a bolt-on connection designed specifically for commercial NQ and NQOD panelboards. Standard residential QO load centers strictly require plug-on circuit breakers.
What does the VH suffix indicate in the QOB2150VH catalog number?
The VH suffix designates a high interrupting rating of 22 kAIC at 120/240VAC. This is an upgrade over the standard 10 kAIC rating found on base QO and QOB circuit breakers.
What is the recommended tightening torque for the box lugs on this 150A breaker?
The box lugs must be torqued to 250.5 lb-in (28.3 N.m) when terminating the supported 4 AWG to 300 kcmil aluminum or copper conductors.
What wire temperature rating is required for the QOB2150VH?
You must use conductors with a 75 degrees Celsius insulation temperature rating for proper operation and compliance.
