Square D QOB2151021 Miniature Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
Square D
QOB2151021
Miniature Circuit Breaker
Brand
Square D
SKU
QOB2151021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB2151021 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB2151021 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB2151021 |
| Series | QOB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Sold out
Quantity
Square D QOB2151021 - 15A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB2151021-R |
| Series | QOB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Similar Items
QOB220VH1021 - 20A 2 Pole Miniature Circuit Breaker
25A 2 Pole Miniature Circuit Breaker
QOB230VH1021 - 30A 2 Pole Miniature Circuit Breaker
Description

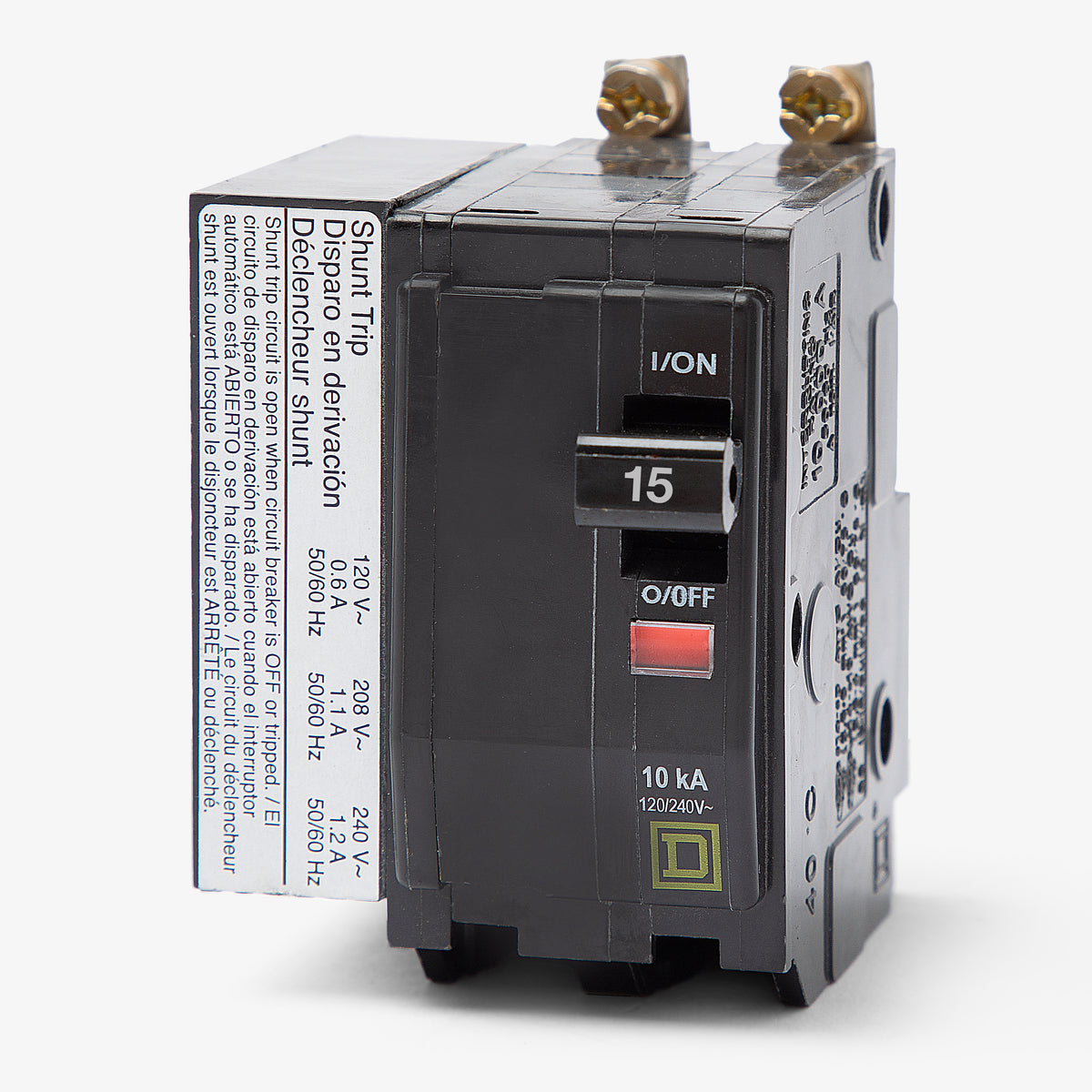

Integrating remote control capabilities, this 15-amp, two-pole miniature circuit breaker features a factory-installed 120/208/240VAC shunt trip. It provides standard thermal-magnetic protection while allowing the circuit to be opened from a remote location. The bolt-on design ensures a highly secure connection, making it ideal for commercial and industrial environments. It is engineered to fit seamlessly into Square D NQ and NQOD panelboards, accommodating 14-8 AWG wire sizes.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB2151021 |
| Series | QOB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
6 answersWhich panelboards are compatible with the QOB2151021 circuit breaker?
This bolt-on breaker is designed for use in Square D NQ and NQOD series panelboards. It is not compatible with standard QO load centers, which require plug-on breakers.
What does the 1021 suffix mean on the QOB2151021 catalog number?
The 1021 suffix indicates that this breaker includes a factory-installed 120/208/240VAC shunt trip accessory. This allows the circuit to be opened from a remote location using an external control signal.
What voltage is required to operate the shunt trip on the QOB2151021?
The factory-installed shunt trip accessory requires an external 120VAC, 208VAC, or 240VAC control voltage to remotely open the breaker contacts.
Can the QOB2151021 be used in DC applications?
Yes, this thermal magnetic breaker is rated for use in DC systems up to 48VDC, providing an interrupting capacity of 5kAIC at that voltage.
Does the QOB2151021 feature a visual trip indicator?
Yes, it includes the Square D Visi-Trip indicator. This provides a clear visual confirmation when the breaker has tripped under an overload or short circuit condition.

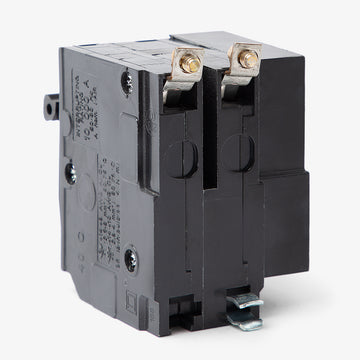

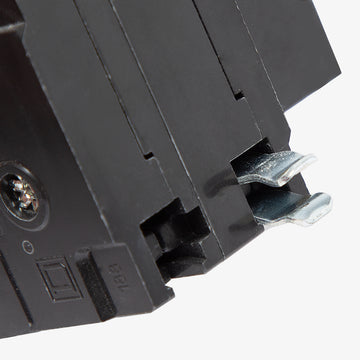

How does the QOB2151021 mount into the panelboard?
It features a bolt-on connection type. The breaker secures directly to the bus bar of compatible NQ and NQOD panelboards using a screw, providing a highly secure connection for commercial and industrial environments.
