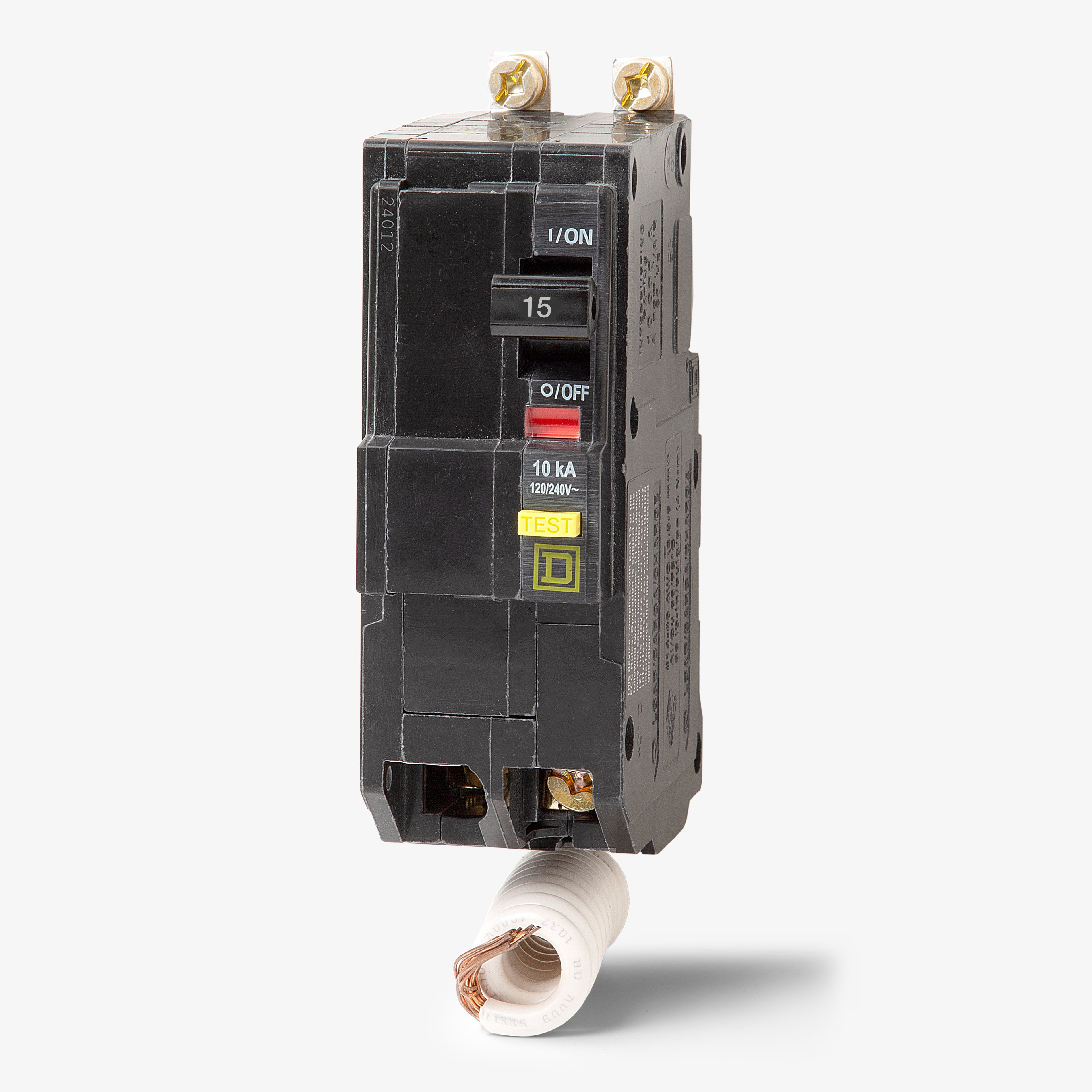

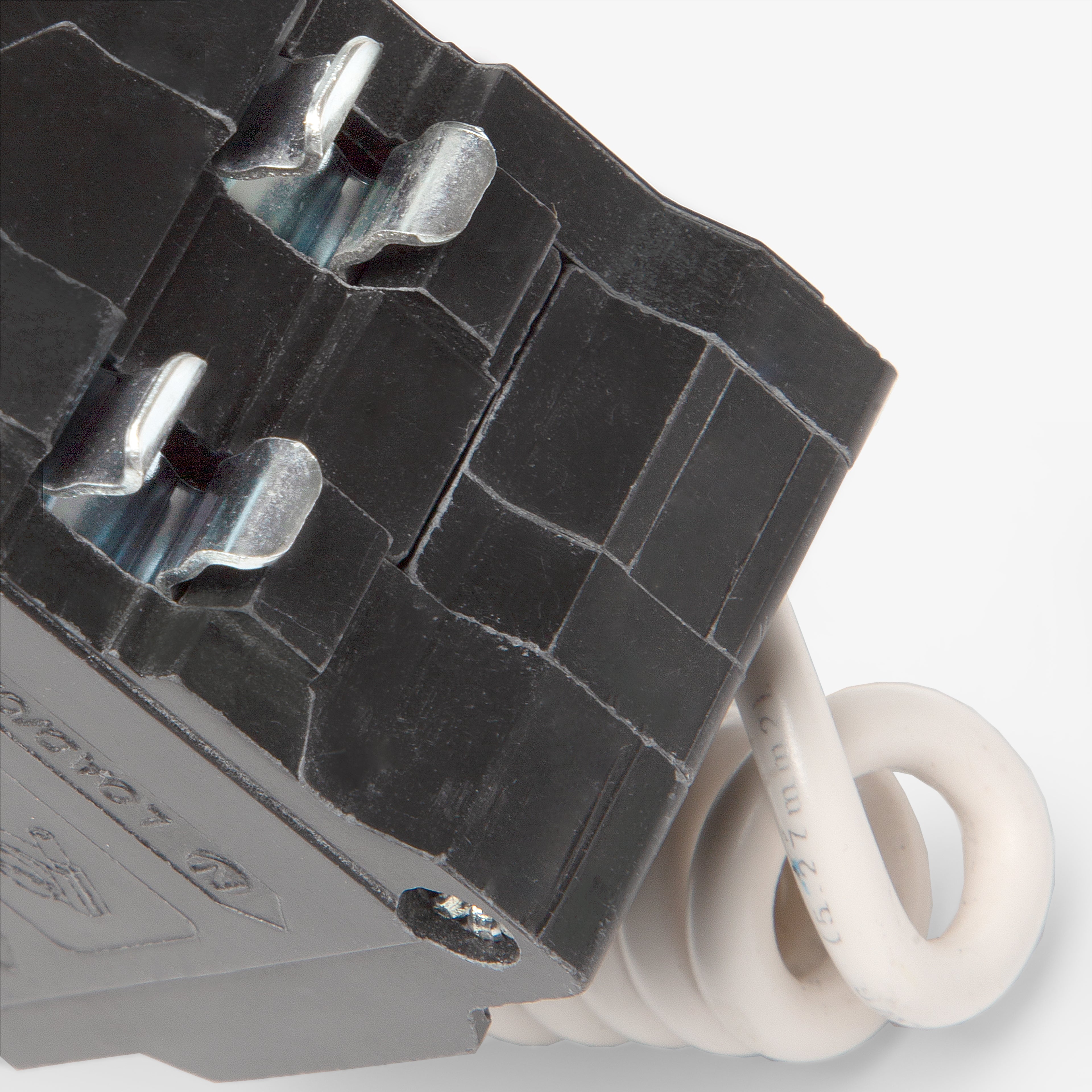

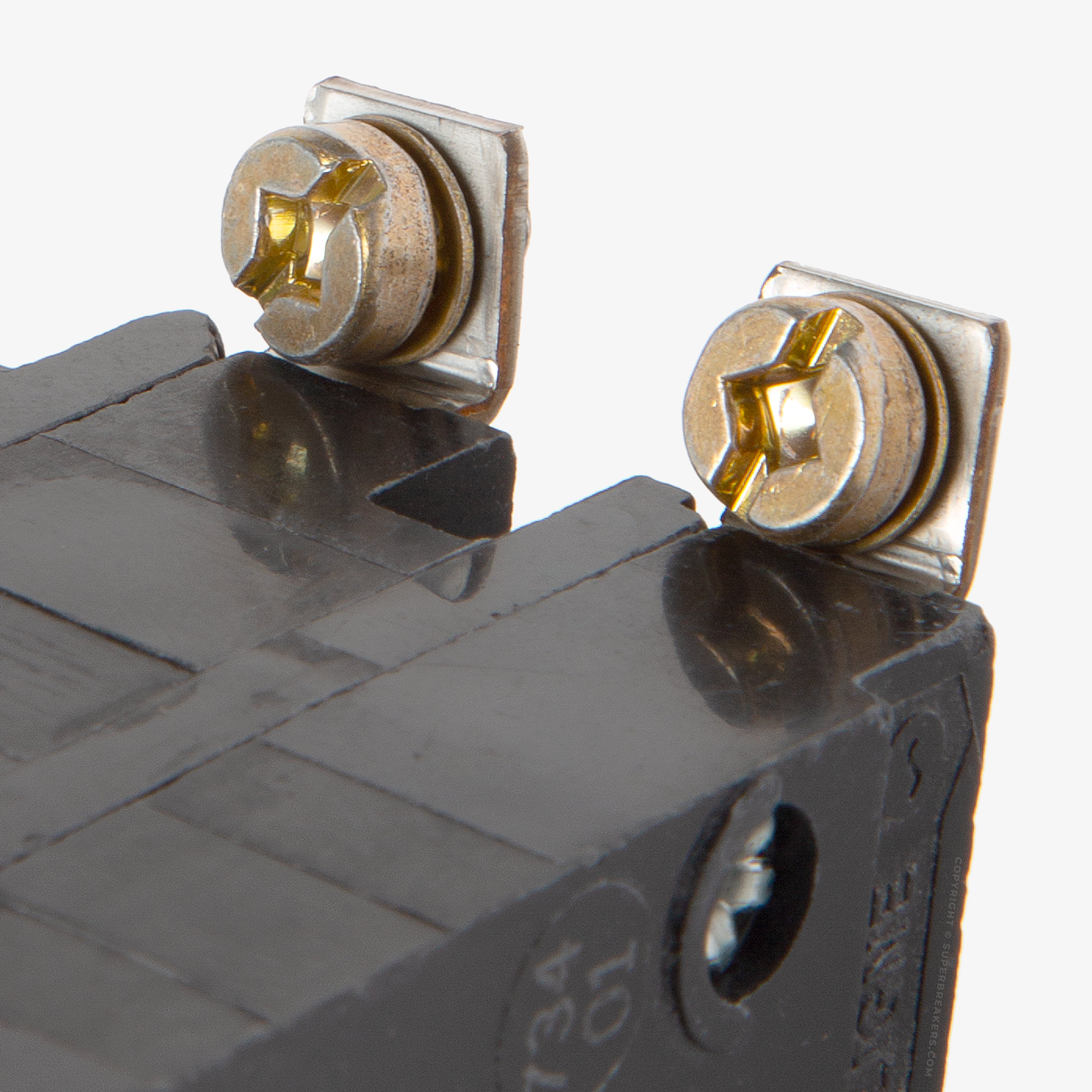

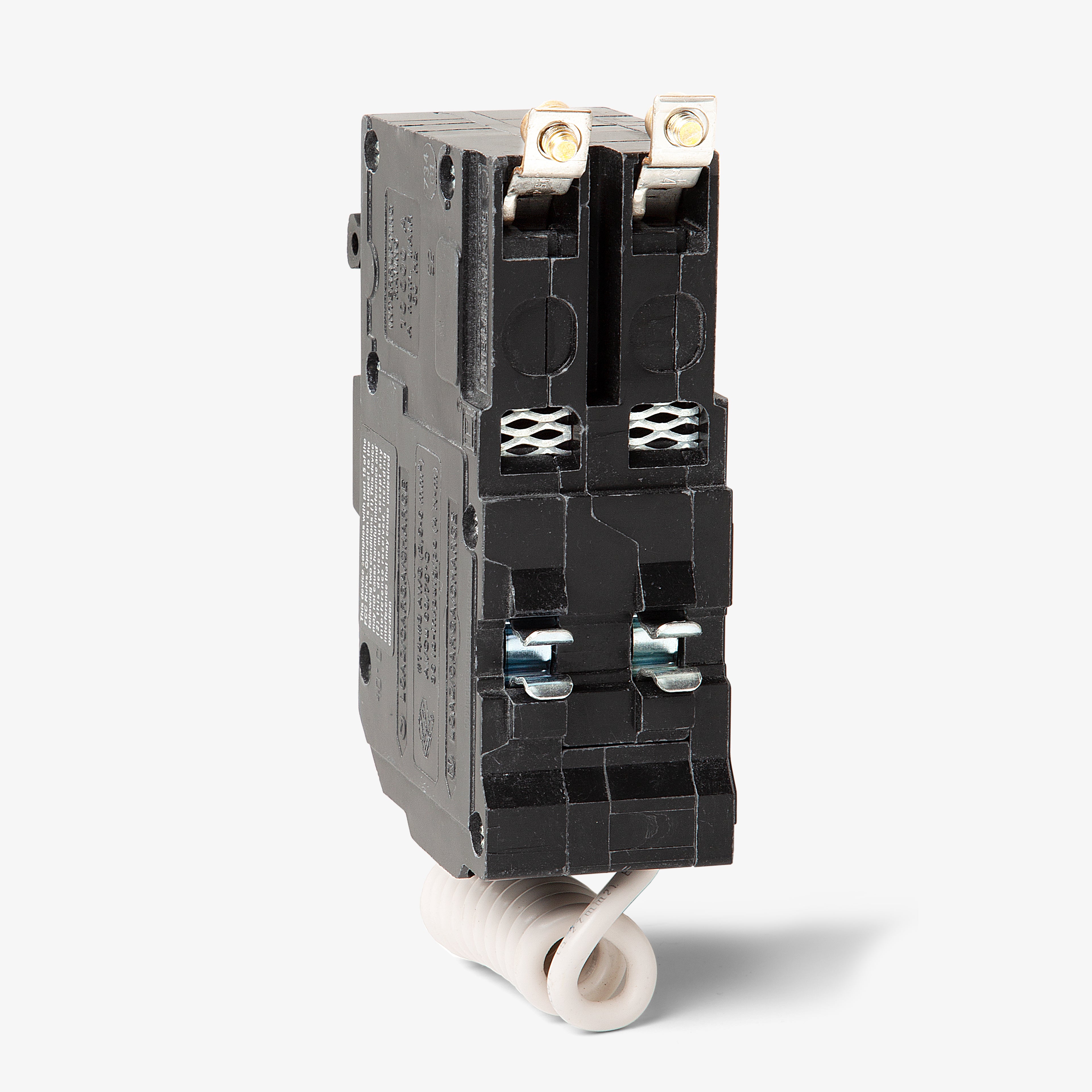

Square D QOB215GFI GFCI Miniature Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
Square D
QOB215GFI
GFCI Miniature Circuit Breaker
Brand
Square D
SKU
QOB215GFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB215GFI - 15A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB215GFI - 15A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB215GFI |
| Series | QOB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Pigtail Neutral, Load Side Lugs Included |
| Standards | CSA C22.2 No. 144, HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
Square D QOB215GFI - 15A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB215GFI-R |
| Series | QOB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Pigtail Neutral, Load Side Lugs Included |
| Standards | CSA C22.2 No. 144, HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
25A GFCI Miniature Circuit Breaker
I - 30A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
Description
Part of the QO family, the Square D QOB215GFI is a 2-pole, 15A bolt-on circuit breaker that combines thermal-magnetic trip technology with Class A 6mA ground fault protection. It is designed for 120/240VAC commercial and industrial applications requiring enhanced personnel safety and NEC compliance. This unit installs into Square D NQ and NQOD panelboards. It includes a pigtail neutral connection and a Visi-Trip indicator. The breaker is rated at 10 kAIC and features a trip-free mechanism.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB215GFI |
| Series | QOB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Pigtail Neutral, Load Side Lugs Included |
| Standards | CSA C22.2 No. 144, HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat panelboards are compatible with the QOB215GFI?
The QOB215GFI is a bolt-on circuit breaker designed exclusively for use in Square D NQ and NQOD panelboards. It cannot be used in standard QO load centers, which require plug-on breakers.
Is there a plug-on equivalent for the QOB215GFI?
Yes. If you are installing a breaker in a standard Square D QO load center rather than a bolt-on panelboard, the plug-on equivalent is the QO215GFI.
How is the neutral connection made on the QOB215GFI?
This breaker features a pigtail neutral connection. The coiled white pigtail wire must be connected directly to the panel's neutral bus bar for the ground fault protection to function correctly.
What level of ground fault protection does the QOB215GFI provide?
It provides Class A ground fault protection, which is designed for personnel safety. It detects ground faults and trips when the leakage current reaches the 4 to 6 mA range, meeting NEC requirements for wet or damp locations.
Can I use the QOB215GFI for equipment protection?
No, the QOB215GFI is a Class A GFCI designed for personnel protection. For equipment protection requiring a 30mA trip threshold to prevent nuisance tripping on heat trace or industrial equipment, you need an Equipment Protection Device (EPD) breaker.
What does the LIG trip function code mean on this breaker?
LIG stands for Long-Time, Instantaneous, and Ground-Fault. This indicates the breaker provides thermal protection against overloads, magnetic protection against short circuits, and integrated protection against ground faults.
